AMD Threadripper Pro 5000WX Tower Workstation

Configure Your AMD Threadripper Pro 5000WX Tower Workstation

  • Configure

    Default Specifications

    Motherboard

    ASUS Pro WS WRX80E-SAGE SE
    Supermicro MBD-M12SWA-TF
    Selection based on configuration

    CPU Cooler

    Cooler Master AMD Wraith Ripper Air Cooler

    Power Supply

    Corsair RM850x 850W 80+ Gold Fully Modular
    Corsair RM1000x 1000W 80+ Gold Fully Modular
    Corsair RM1200x 1200W 80+ Gold Fully Modular
    Corsair AX1600i 1600W 80+ Titanium Fully Modular
    Selection based on configuration

    Case

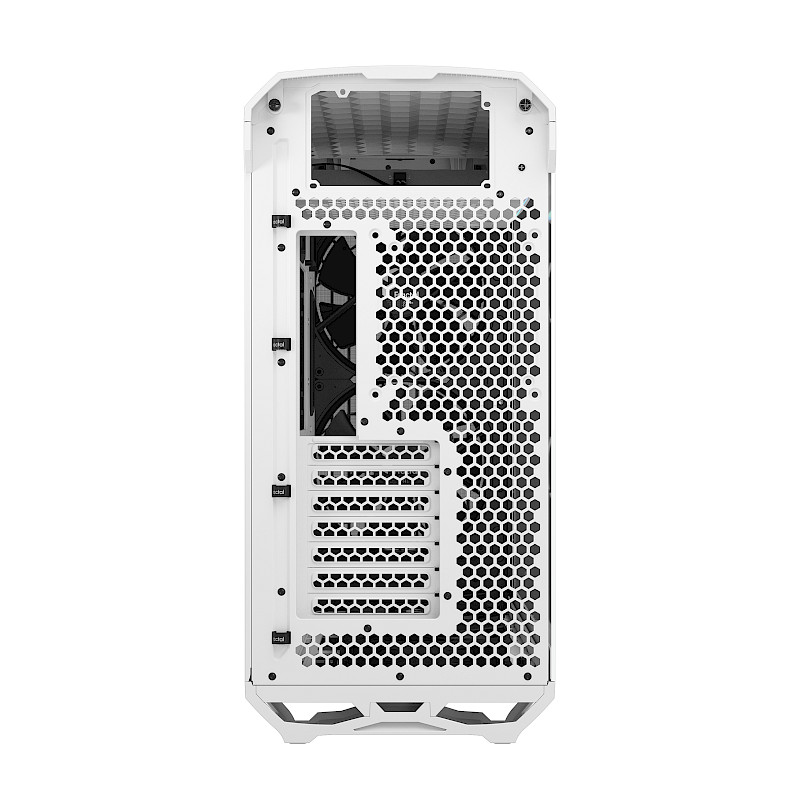

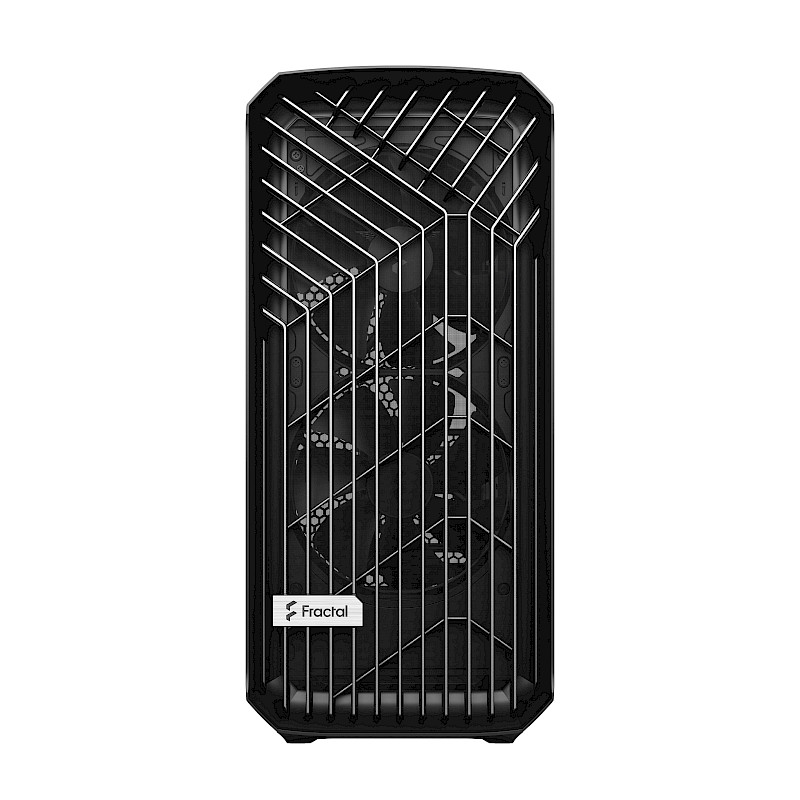

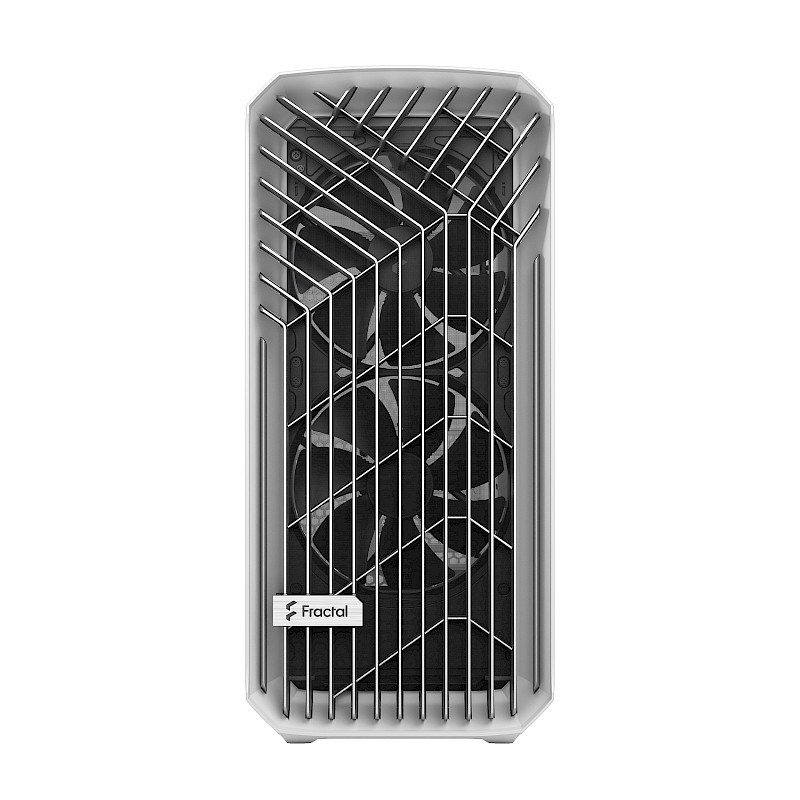

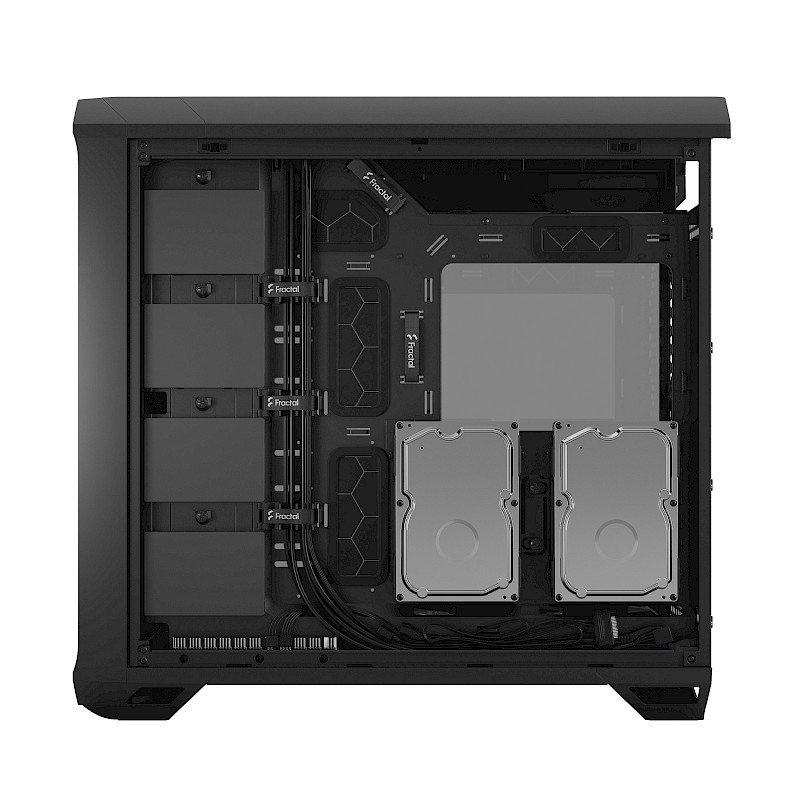

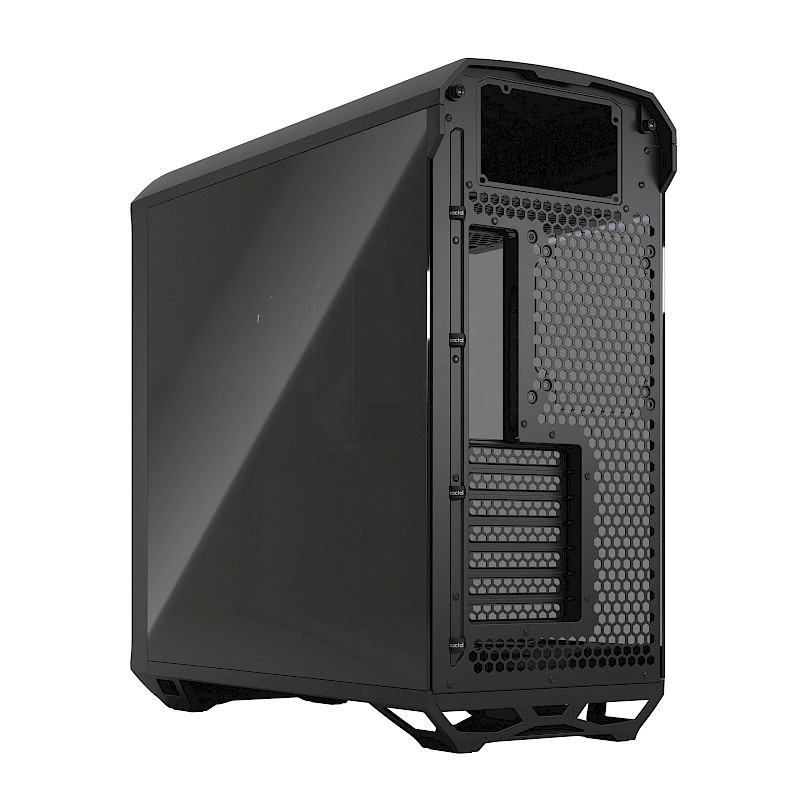

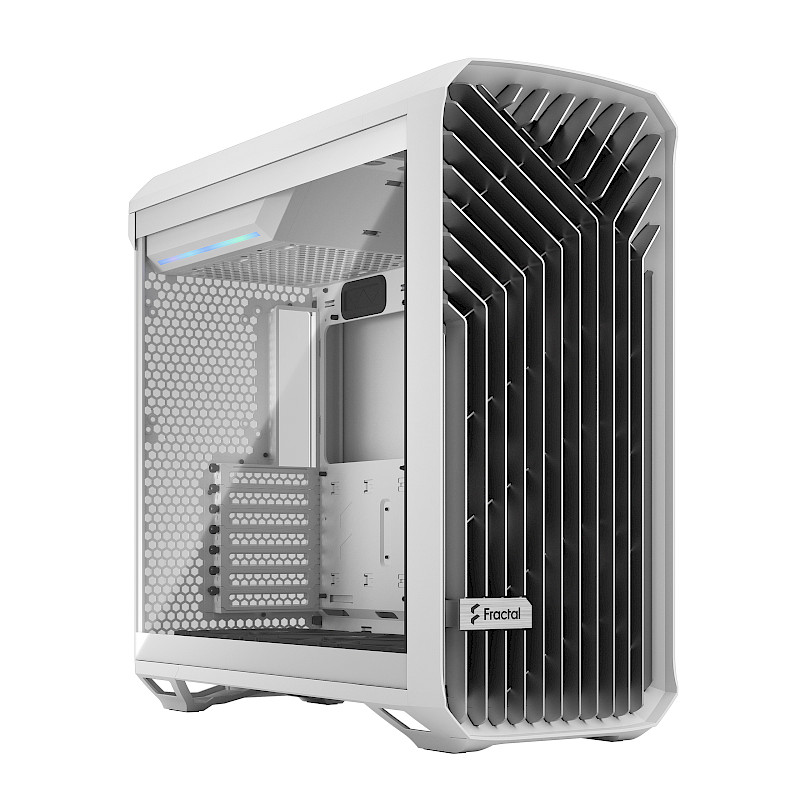

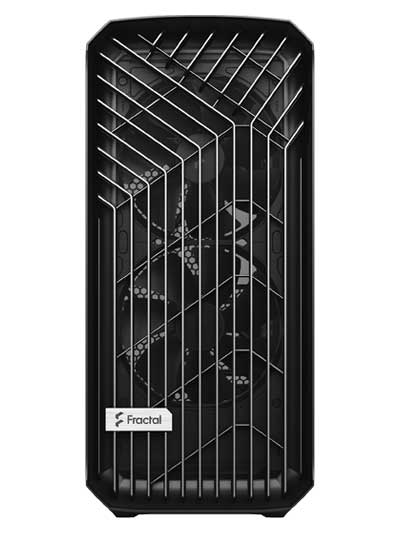

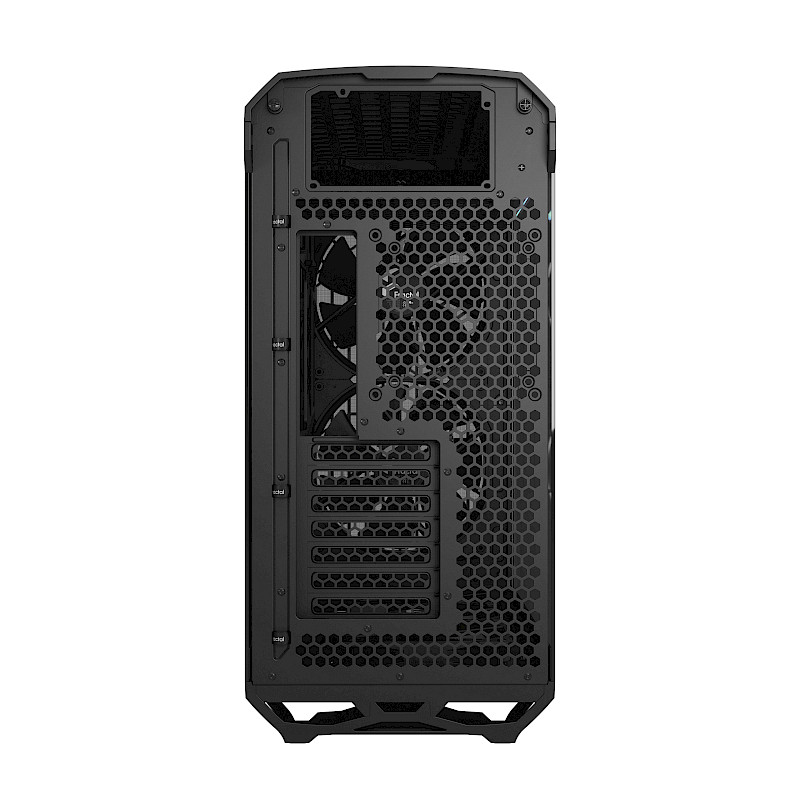

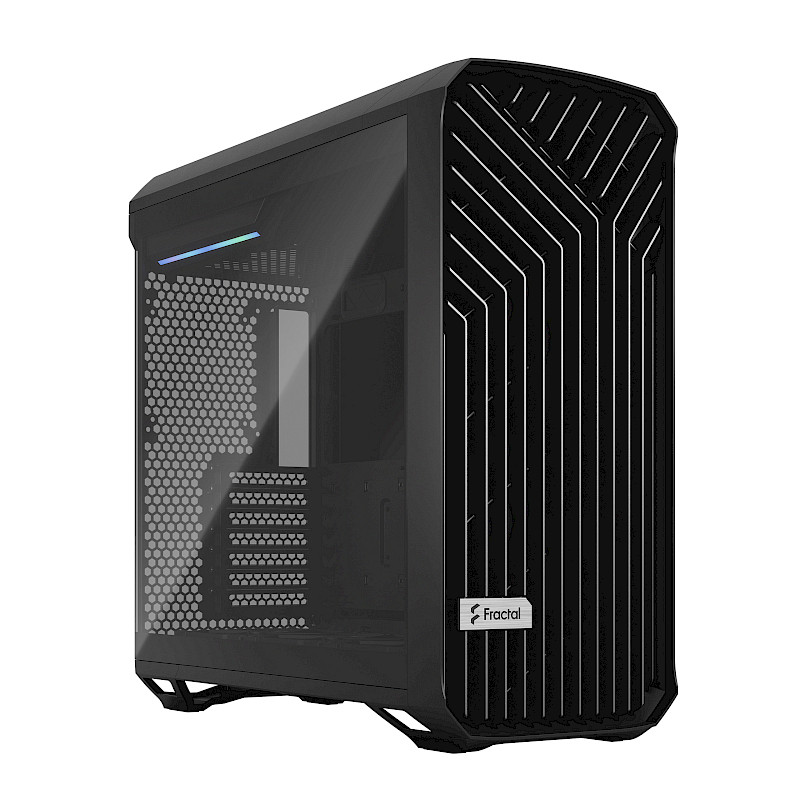

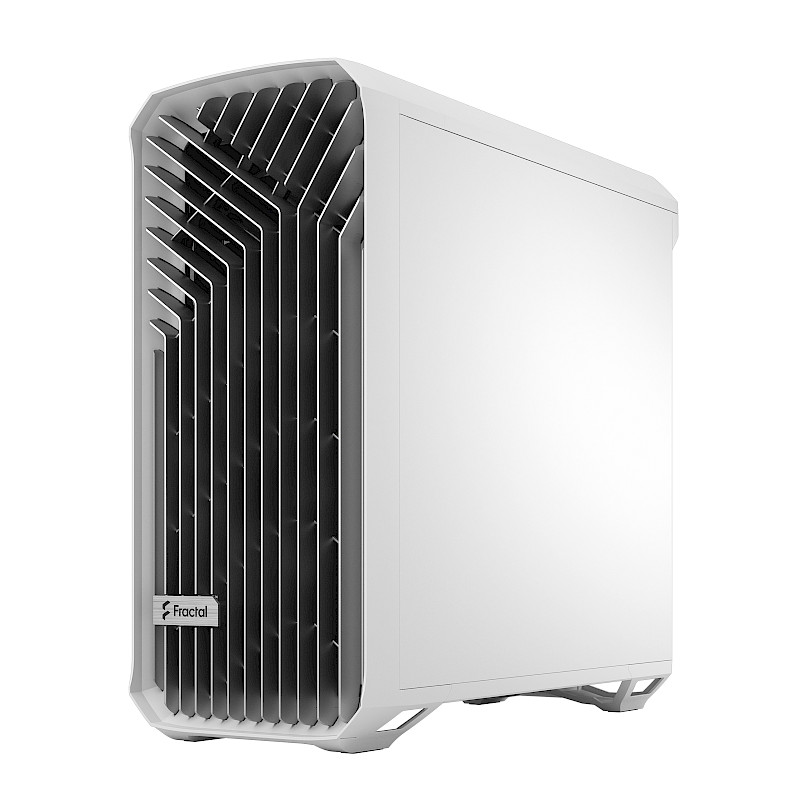

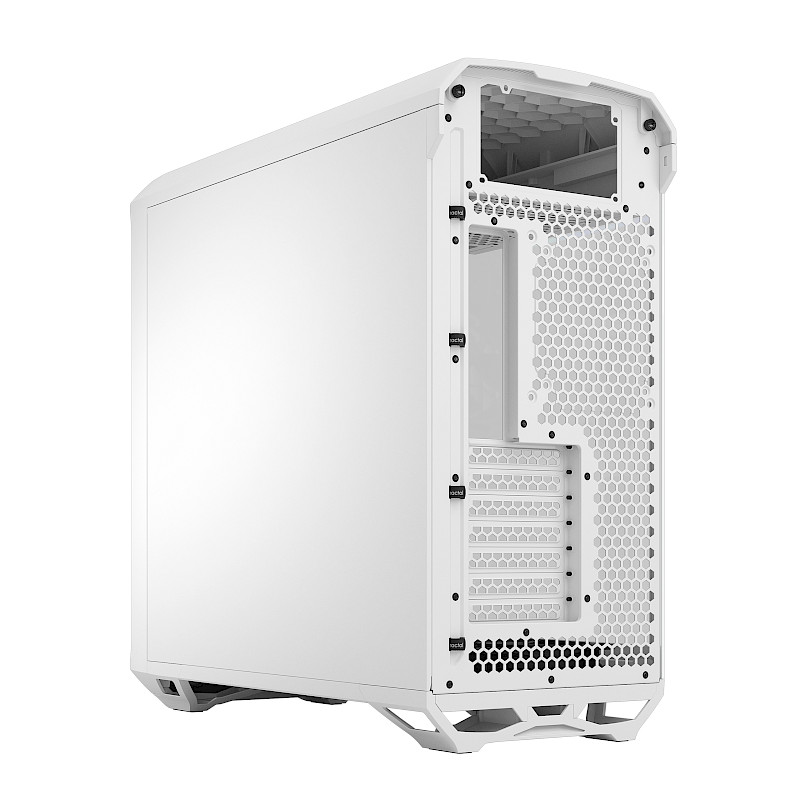

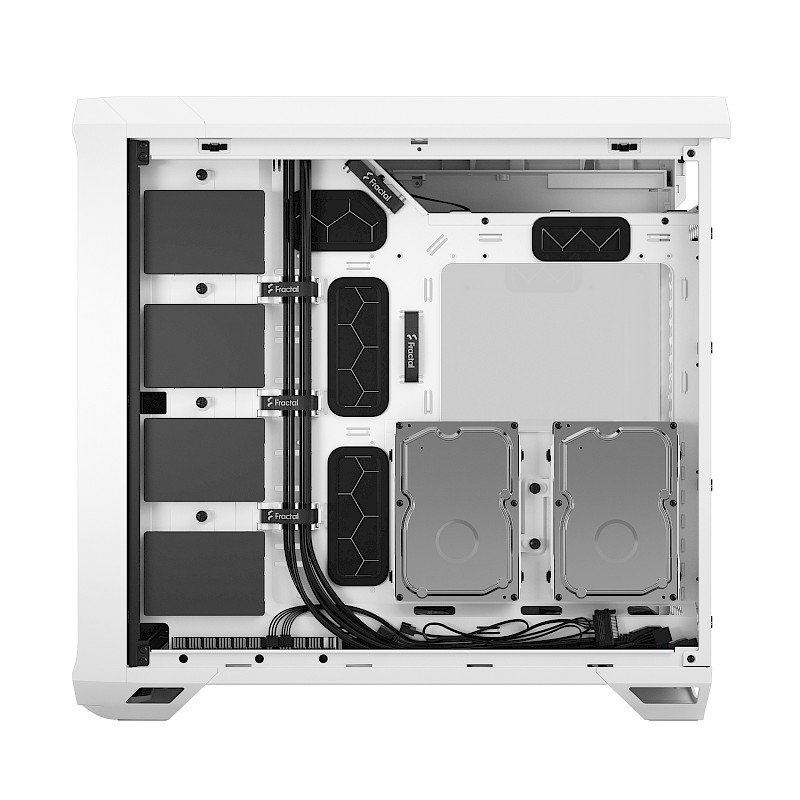

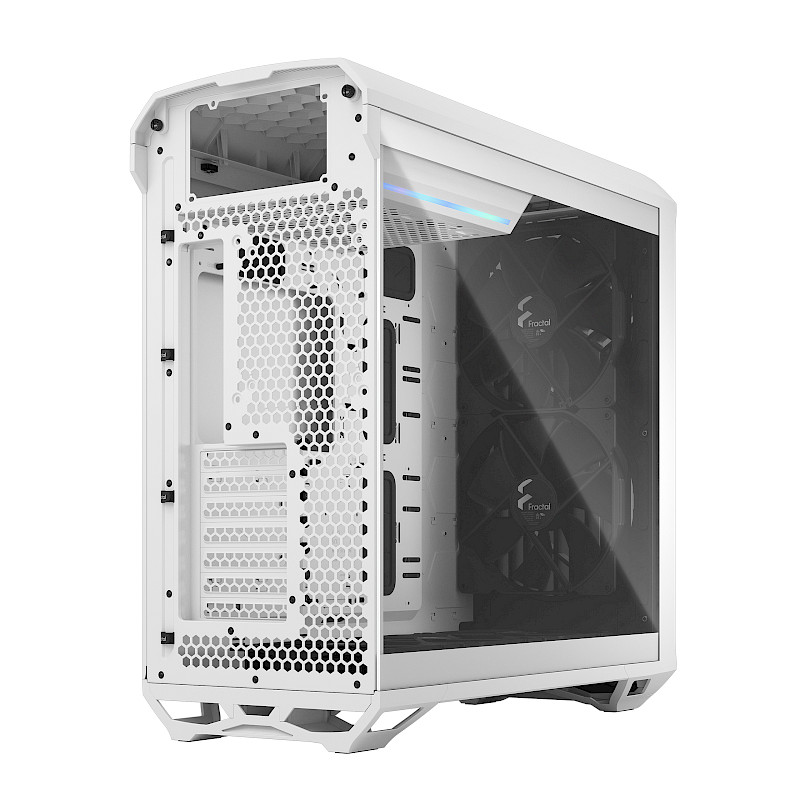

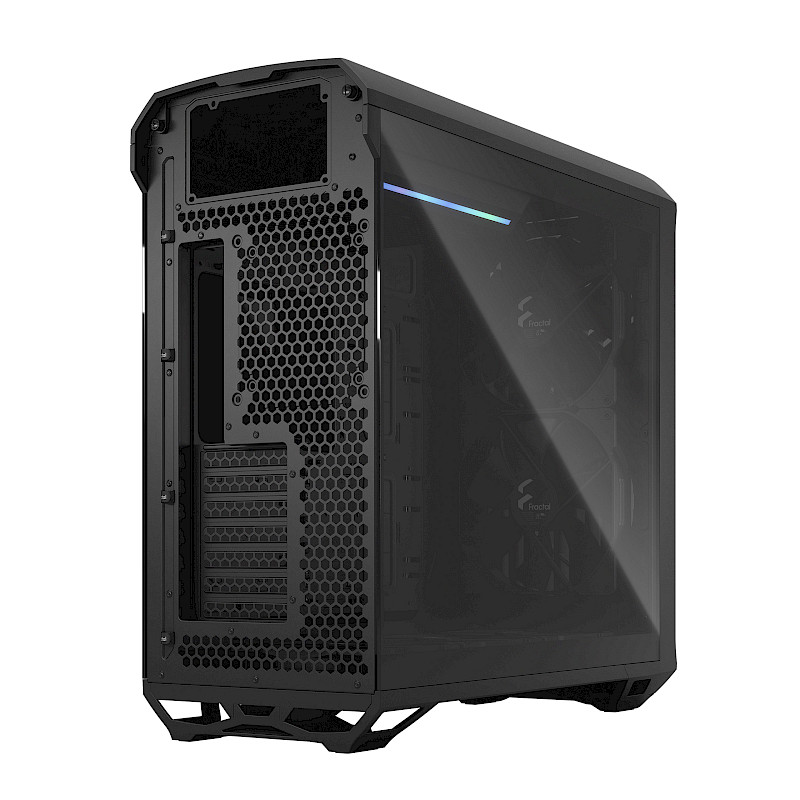

    The Fractal Design Torrent is a modern mid-tower case with open front grill and visible internal layout. Includes 3 140mm front fans, 2 180mm bottom fans, and 1 140mm rear fan for excellent cooling. Dedicated 2 3.5-inch and 4 2.5inch drive bays for large storage capacity. Available in black, gray, and white with a tempered glass side panel.

    Processor

    Supprt for one AMD sWRX8 socket supporting one AMD Ryzen Threadripper PRO 5000 WX-Series processor.

    Hyper-Threading support allows two threads to run simultaneously on each core - recognizing up to 128 total cores, 64 real and 64 virtual. 'Turbo Boost' support automatically boosts the processor speed based on workload - so if an application is only using one of the cores it will automatically increase the speed of the core in use and turn off the unused cores.

    Memory

    8 DIMM slots supporting up to 2TB of DDR4 3200MT/s ECC Memory. AMD Ryzen Threadripper PRO 5000 WX-Series processors have 8 memory channels. Occupy all memory channels for optimal performance.

    We stock new condition, reputable brand memory including SK Hynix, Micron, and Samsung.

    Storage | M.2

    Four PCIe 4.0 M.2 slots supporting NVMe SSDs.

    PCIe 4.0 NVMe SSDs have read/write speeds averaging 6,000MB/s.

    We stock new condition, reputable brand, and latest model drives.
    512GB to 2TB drives are Samsung. 4TB and 8TB drives are Sabrent or Corsair.

    Storage | SATA SSD

    Four 2.5-inch SATA drive bays. SATA SSDs have read/write speeds averaging 500MB/s.

    We stock new condition, Samsung latest model drives.

    Storage | SATA HDD

    Two 3.5-inch SATA drive bays. SATA Hard Drives have read/write speeds averaging 250MB/s.

    We stock new condition, Western Digital and Seagate latest model drives.

    Graphics

    Six PCIe 4.0 x16 slots supporting up to four dual-width, full-height graphics cards.

    We stock NVIDIA Quadro professional-series and NVIDIA GeForce consumer-series graphics cards. If your application requires an AMD Radeon PRO graphics card, contact us for a custom quote.

    AJA | Blackmagic Design

    Optional AJA connectivity cards and Blackmagic Design capture cards for professional video production applications. Contact us if the model you require is not listed.

    Network

    Two onboard RJ45 Ethernet ports - one 10Gb and one 1Gb. Optional additional network adapters.

    Wireless

    Optional WiFi network connection with an external antenna for extended range.

    Operating System

    Choose the operating system that best meets your application requirements. Windows 10 Professional for Workstations is installed by default. We also offer the most popular Linux distributions. If you would like dual-boot or multiple partitions, contact us for a custom quote.

    Operating System

    Load Operating System

    Keyboard

    Choose your ideal keyboard.

    Mouse

    Choose your ideal mouse.

    3Dconnexion

    Optional 3Dconnexion mice for professional CAD applications.

    $75 shipping per unit · Free local pickup

    Lead time: 1 to 2 weeks
    See Policies & FAQ for details.

    $ 3,000
  • Form FactorMid tower
    Processor FamilyAMD Ryzen Threadripper Pro
    Single CPU Socket sWRX8
    ProcessorsAMD Ryzen Threadripper PRO 5000WX Series
    Up to 64 Cores
    Memory8 DIMM Slots
    8 Memory Channels
    Up to 2TB DDR4 3200MT/s Registered ECC Memory
    StorageUp to 10 total drives
    4x M.2 NVMe PCIe Gen 4 slots
    4x 2.5-inch internal SATA drive bays
    2x 3.5-inch internal SATA drive bays
    Network1 Onboard 10Gb Ethernet LAN port
    1 Onboard 1Gb Ethernet LAN port
    Optional: Intel AX200 802.11AC WiFi & Bluetooth 5
    Expansion Slots6 PCIe Gen 4 x16 slots
    4 PCIe Gen 4 x4 slots for M.2 NVMe SSDs
    Supports 4 full-height, double-width GPUs
    Ports and ConnectorsFront
    2x USB 3.0 Type-A
    1x USB 3.1 Gen 2 Type-C

    Rear
    4 USB 3.2 Gen 2 Type-A
    4 USB 3.2 Gen 1 Type-A
    1 USB 3.2 Gen 2x2 Type-C
    1 RJ45 10Gb Ethernet
    1 RJ45 1Gb Ethernet
    7.1 HD Audio jacks
    CoolingFront fans
    2x Dynamic GP-18 180 mm

    Bottom fans
    3x Dynamic GP-14 PWM 140 mm

    Rear fan
    1x Dynamic GP-14 PWM 140 mm
    Power Supply850 - 1600 watt 80+ internal power supply depending on configuration
    DimensionsHeight: 21.4" (544mm)
    Width: 9.5" (242mm)
    Depth: 20.9" (530mm)

  • Documentation

    ASUS Pro WS WRX80E-SAGE BIOS ManualView | Download
    ASUS Pro WS WRX80E-SAGE User ManualView | Download
    Fractal Torrent Product SheetView | Download
    Fractal Torrent User GuideView | Download
    Supermicro M12SWA-TF User ManualView | Download
