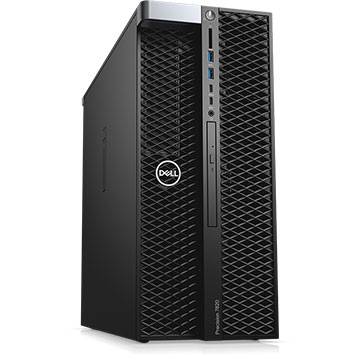

Dell Precision 5820 Workstation

Configure Dell Precision 5820 Workstation

  • Processor

    The Dell 5820 supports one Intel Xeon W-series processor. The Hyper-Threading support allows two threads to run simultaneously on each core -- Windows recognizes 36 total cores on the Z4, 18 real and 18 virtual. It also supports "Turbo Boost" which automatically boosts the processor speed based on workload - so if an application is only using one of the 18 cores it will automatically increase the speed of the core in use and turn off the unused cores.

    Gen 1 | Xeon W-2100 series | Intel Launch Date: Q3'17
    Gen 1 | Core i9-9900 series | Intel Launch Date: Q4'18
    Gen 2 | Xeon W-2200 series | Intel Launch Date: Q4'19
    Gen 2 | Core i9-10900 series | Intel Launch Date: Q4'19

    • Intel Xeon W Series

      Intel Core i9 Series

    • Intel Xeon W Series

      Intel Core i7/i9 Series

    Memory

    The Dell 5820 has 8 DIMM Slots supporting up to 512GB DDR4 ECC Memory. Choose more memory to improve overall system performance.

    Primary Drive more info

    Operating System, Applications, Plug-Ins, Effects

    Select the primary drive where the operating system and applications will be installed.

    • SATA 2.5-inch SSD: 500MB/s Write | 550MB/s Read
    • NVMe M.2 SSD: 1750MB/s Write | 2500MB/s Read

    The SATA 2.5-inch SSD will be installed in Drive Bay 1.
    The NVMe M.2 SSD will be installed on one of the PCIe x4 slots. Specific slot depends on the graphics card selection.

    SATA 2.5-inch SSD - 500MB/s Write | 550MB/s Read

    NVMe M.2 SSD - 1,750MB/s Write | 2,500MB/s Read more info

    Secondary Drive more info

    Footage / Project Files / Sessions / Scatch Disk

    For each industry, a dedicated fast drive to work from is recommended.

    • Video editing - footage / scratch disk
    • Photo editing - photo files
    • 3D Modeling / Eningeering / CAD - project files
    • Audio - sessions

    Choose the SATA SSD to run light to moderate computations, audio sessions, 2D modeling, or edit 1080P footage.
    Choose the NVMe to run large computations, 3D modeling, or edit 4K footage.
    Choose the NVMe RAID to run extreme computations, or edit 6K or 8K footage.

    • SATA 2.5-inch SSD: 500MB/s Write | 550MB/s Read
    • NVMe M.2 SSD (Single NVMe Flash Storage): 1750MB/s Write | 2500MB/s Read
    • Two Drive PCIe NVMe Flash Storage RAID: 3500MB/s Write | 5000MB/s Read
    • Three Drive PCIe NVMe Flash Storage RAID: 4000MB/s Write | 6000MB/s Read
    • Four Drive PCIe NVMe Flash Storage RAID: 5000MB/s Write | 7000MB/s Read (up to 9000MB/s Read depending on file size and format)

    The SATA SSD will be installed in Drive Bay 1 or 2; the NVMe SSD on a PCIe x4 slot; and the Dell Ultra-Speed Drive Quad on a PCIe x16 slot. Specific slot depends on the graphics card selection.

    SATA 2.5-inch SSD - 500MB/s Write | 550MB/s Read

    NVMe M.2 SSD - 1,750MB/s Write | 2,500MB/s Read more info

    Dell Ultra-Speed Drive Quad - Two Drive RAID - 3500MB/s Write | 5000MB/s Read

    Dell Ultra-Speed Drive Quad - Three Drive RAID - 4000MB/s Write | 6000MB/s Read

    Dell Ultra-Speed Drive Quad - Four Drive RAID - 5000MB/s Write | 7000MB/s Read

    Drive Bay 1

    The Dell 5820 has two internal 3.5" SATA3 (6GB/s) bays. You can arrange any combination of hard drives or solid-state drives. X.solutions stocks only new condition and latest model Western Digital hard drives and Samsung solid-state drives.

    This section will be disabled if a solid-state drive in the Primary or Secondary Drive section is selected. Select an additional drive in Drive Bay 2 below.

    Solid-State Drive

    Hard Drive

    Drive Bay 2

    Configure the second drive bay with an additional hard drive or solid-state drive.

    This section will be disabled if a solid-state drive in the Primary and Secondary Drive sections is selected.

    Solid-State Drive

    Hard Drive

    Optical Bay (Upper)

    Configure the upper optical bay with an additional optical drive, hard drive, or solid-state drive.

    Optical

    Solid-State Drive

    Hard Drive

    Optical Bay (Lower)

    Configure the lower optical bay with an additional optical drive, hard drive, or solid-state drive.

    Optical

    Solid-State Drive

    Hard Drive

    Graphics Card (Primary)

    The Dell 5820 mainboard has two PCIe Gen3 x16 slots supporting one high performance or two moderate performance graphics cards.

    We stock the NVIDIA Quadro, GeForce, and NVS series graphics cards. If your workflow requires the AMD Radeon Pro or FirePro series graphics cards, please contact us for a custom quote.

    NVIDIA Quadro Pascal (2017-2019 Production)

    NVIDIA Quadro Turing (2018-2020 Production)

    NVIDIA GeForce Turing (2018-2020 Production)

    Graphics Card (Secondary)

    Choose an optional second graphics card. Note that graphics cards work independently of each other. The benefit of a second graphics card is to support more displays or if you plan to perform multiple rendering or performance tasks at the same time.

    NVIDIA Quadro Pascal (2017-2019 Production)

    NVIDIA Quadro Turing (2018-2020 Production)

    NVIDIA GeForce Turing (2018-2020 Production)

    Port Expansion

    The Dell 5820 comes standard with 10x USB 3.0 Type-A ports. Enhance your workstation with port expansion cards.

    AJA | Blackmagic Design

    10Gb Ethernet

    The Dell 5820 comes standard with dual Gigabit (1Gb) Ethernet ports. This section offers addition of 10Gb Ethernet (10Gbps).

    Wireless / Bluetooth

    Operating System

    Choose the operating system that best fits your software requirements.

    Windows

    Preferred Linux Distributions

    Keyboard

    Choose your ideal keyboard.

    Mouse

    Choose your ideal mouse.

    $75.00 shipping per unit · Free local pickup

    Allow 2-6 business days for preparation.
    See Policies for details.

    $ 2,200
  • Blazing fast performance

    Brainpower that matches yours: The latest Intel® Xeon® processor powers your most demanding applications. Now featuring a new generation of single-socket architecture with up to 18 cores, you can extract maximum performance for your biggest ideas.

    Accelerate every project: Run your software as fast as possible and get real-time results thanks to this memory expandable machine with up to 512GB of 2666MHz RDIMM ECC memory (not available with Core X CPUs).

    Drown out distraction: Focus on your tasks with the workstation that’s quieter than ever. A new multichannel thermal design delivers advanced cooling and acoustics, or upgrade to an optional CPU liquid cooling solution—for enhanced cooling and quiet operation when your system is under heavy workloads.


    Built for your future

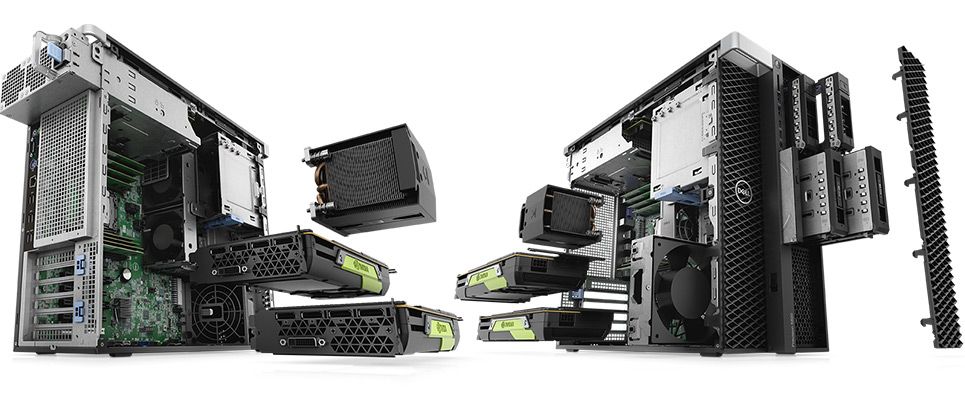

    Room for more: Your Precision 5820 Tower grows with your ideas no matter where they take you, thanks to a new chassis that combines a versatile design with outstanding storage scalability.

    Adapts to your innovations: Your Precision 5820 Tower is ready for complex projects, including virtual reality and AI workflows, with the next generation AMD Radeon Pro™ and highest-performing NVIDIA® Quadro® RTX graphics. Your workstation supports up to 600W of graphics up to 300W per card (950W PSU required).

    No project is too big: Up to six 2.5" or five 3.5" drives and front access storage including SATA, SAS (not available on systems with Core X CPUs) and PCIe M.2/U.2 NVMe SSD can be configured for up to 68TB total storage and easily swapped. With the hot-swap feature on the M.2 and U.2 PCIe NVMe SSDs, you can remove drives without shutting down the workstation.

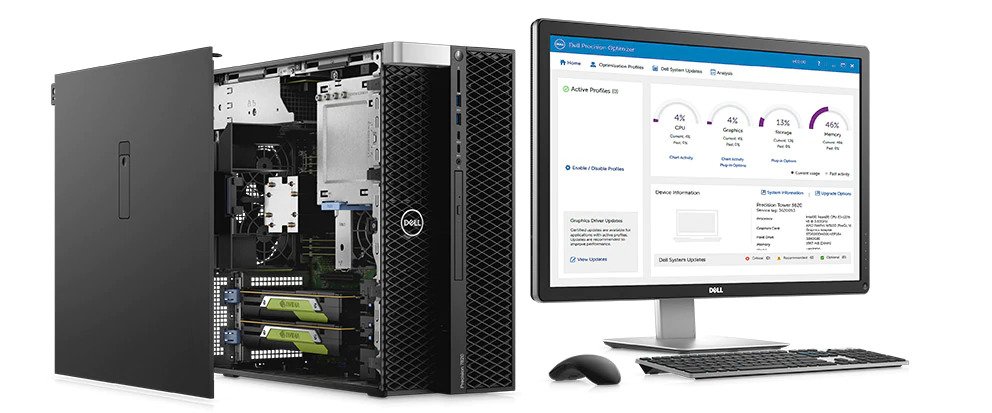

    Improve productivity with the Dell Precision Optimizer

    Tuned performance: Free with your Precision workstation, the Dell Precision Optimizer delivers faster application optimization with a single click compared to HP Advisor.* It also automatically tunes your workstation to run popular ISV applications at the fastest speeds possible, has automated system updates and provides analytics to address resource bottlenecks.

    Premium customized performance: Upgrade to the new Dell Precision Optimizer premium version, the world’s first AI-based performance optimizer software for workstations.* This program learns the behavior of any user-specified applications, identifies optimization opportunities using machine learning and applies performance improvements.


    Reliability where it matters most

    Stay safe, stay secure: Reduce downtime with Dell Reliable Memory Technology (RMT) Pro. Designed to work with ECC memory, RMT protects your machine from potential crashes by mapping out bad memory locations after the system reboots.

    Reliably access your data: Improve the availability of your data with hardware and software optional RAID storage options including PCIe NVMe SSDs and optional Smart Card (CAC/PIV) readers that let you determine who can access your system.

    Your work can count on it: Precision Workstations are tested to ensure the high-performance applications you rely on every day run smoothly. Dell ISV-certifications cover the most popular independent software applications.


    Ultimate convenience

    Manage all of your Windows 10 endpoints from one console with Dell Client Command Suite and VMware® Workspace ONE™ integration.

    Comprehensive threat prevention

    With SafeGuard and Response, you have the tools and security experts to protect your ecosystem from cyber threats, giving you the freedom and peace of mind to focus on other strategic initiatives.

    Remotely manage

    Dell unique vPro extensions can remotely manage and run diagnostics on a fleet of devices, whether they are powered on or off.


    We’ve got your business covered

    ProDeploy Client Suite: We help you deploy PCs with greater speed, less effort and more control. You will direct every detail of your deployment with our TechDirect portal that features an unprecedented level of control, automation and simplicity.

    ProSupport: Let us make hardware and software support easy. ProSupport offers 24x7 access to local language, advanced technology experts who contact you when critical issues arise.* We do all this so you can focus on the strategic work that drives your business forward.

    ProSupport Plus: With our most complete support service for PCs, you get all the capabilities of ProSupport plus hard drive failure prevention,* repair for drops, spills and surges and hard drive retention in the case of replacement.* In today’s fast moving culture, there’s no time for downtime. Dell has your back. Upgrade to ProSupport Plus.

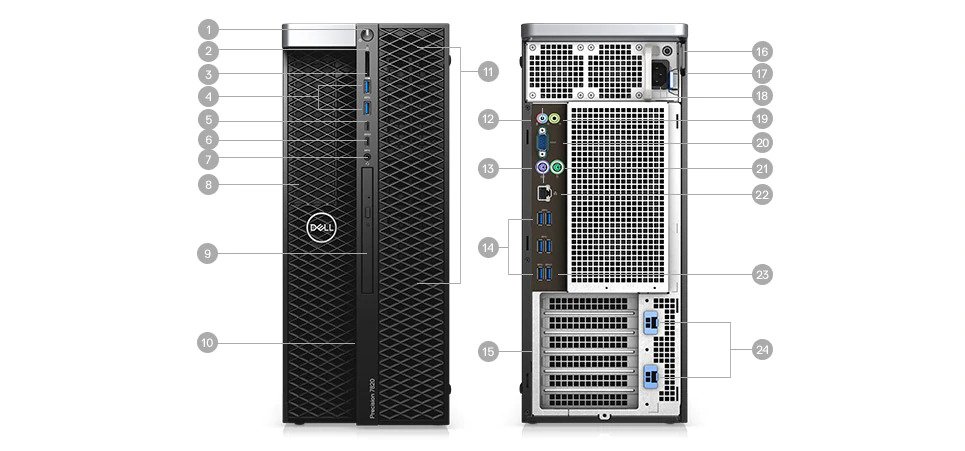

    Ports & Slots

    1. Power button/Power light | 2. Drive activity light | 3. SD card slot | 4. USB 3.1 Gen 1 ports | 5. USB 3.1 Gen 1 Type-C port with PowerShare | 6. USB 3.1 Gen 1 Type-C port | 7. Headset port | 8. 5.25 inch bay (optional) | 9. Optical drive | 10. Drive access release latch | 11. Drive carriers | 12. Microphone/Line-in port | 13. PS/2 Mouse port | 14. USB 3.1 Gen 1 ports | 15. Discrete graphics card slot (optional) | 16. Padlock ring | 17. Security cable slot | 18. Power cable connector | 19. Line-out port | 20. Serial port | 21. PS/2 Keyboard port | 22. Network port | 23. USB 3.1 Gen 1 port (supports smart Power-On) | 24. Expansion card slots

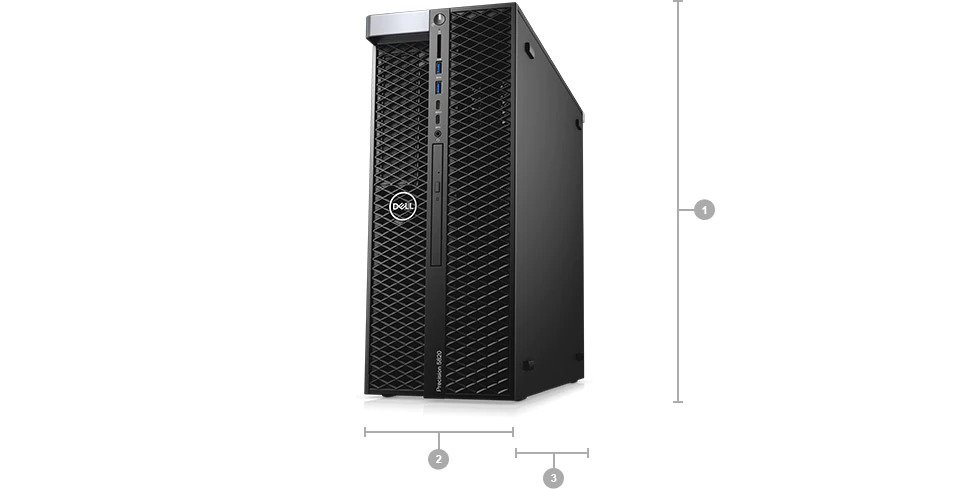

    Dimensions & Weight

    1. Height: 16.45'' (417.9 mm) | 2. Width: 6.94'' (176.5 mm) | 3. Depth: 20.4'' (518.3 mm) | Starting weight: 32 lb (15.9kg)

  • Manufacture Year(s)2018 - current
    Form FactorRackable minitower
    Processor FamilyIntel Xeon W Processor Family
    Intel Core i7/i9 Processor Family
    ProcessorsIntel Cascade Lake W (CLX-W) and Cascade Lake X (CLX-X) CPUs
    Intel Xeon W-22xx processors (2nd Gen)
    Intel Xeon W-21xx processors (1st Gen)
    Intel Core i9-109xx processors (1st Gen)
    Intel Core i9-99xx processors (1st Gen)
    Intel Core i7-79xx processors (1st Gen)
    Intel Core i7-78xx processors (1st Gen)
    MemoryType
    DDR4 ECC RDIMMs - Supported with Xeon W Series CPUs
    DDR4 Non-ECC UDIMMs supported with Core X Series CPUs

    Speed
    2666MHz (1st gen processors)
    2933MHz (2nd gen processors)

    Slots
    8 DIMM

    Maximum
    128 GB for Core X Sky Lake Series CPUs
    256 GB for Core X Cascade Lake Series CPUs
    512 GB for Xeon W Sky Lake Series CPUs
    512 GB for Xeon W Cascade Lake Series CPUs
    I/O ControllerIntegrated SATA 6.0 Gb/s
    Factory integrated RAID available for SATA/SAS drives (RAID 0, 1, and 10)
    Internal StorageUp to 6x 2.5” SATA drives
    Up to 5x 3.5” SATA drives
    M.2 NVMe PCIe SSDs - Up to 4x drives on 1 Dell Precision Ultra-Speed Drive Quad x16 card
    Front Flex Bay M.2 NVMe PCIe SSDs - Up to 2x M.2/U.2 drives
    SAS drives with optional controllers and SED are available only on systems with Xeon W CPUs
    External StorageIntegrated: DVD Writer
    Optional: Blu-Ray Writer
    Available GraphicsNVIDIA GeForce
    NVIDIA Quadro
    NVIDIA NVS
    AMD Radeon Pro
    AudioType: High Definition Audio Codec (2 Channel)
    Controller: Integrated Realtek ALC3234
    NetworkingLAN Integrated:
    Intel i219 Gigabit Ethernet controller with Intel Remote Wake UP, PXE and Jumbo frames support.
    LAN Optional:
    Intel i210 1GbE single port PCIe (Gen 3 x1) network card
    Intel i350 1GbE dual port PCIe (Gen 3 x1) network card
    Intel i350 1GbE quad port PCIe (Gen 3 x1) network card
    Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) RJ45 network card
    Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) SFP+ network card

    WLAN Optional:
    Intel® Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo, non-vPro™
    Expansion SlotsSlot configuration for Xeon W and Core i9X CPUs
    2x PCIe x 16
    1x PCIe x 16 wired as x8
    1x PCIe x 16 wired as x4
    1x PCIe x 16 wired as x1

    Slot configuration for Core i7X CPUs
    1x PCIe x16
    1x PCIe x8
    1x PCIe x4
    1x PCIe x1
    Slot 1 is not active in this configuration.
    Ports and ConnectorsAudio
    Rear: 1x Audio Line out
    Rear: 1x Audio Line in/Microphone
    Front: 1x Universal Audio Jack

    Network
    Rear: 1x RJ45 Network ports

    Serial port
    Rear: 1x Serial port

    USB
    Front: 4x USB 3.1 Gen1
    Rear: 6x USB 3.1 Gen1

    PS2
    Rear: 1 x Keyboard
    Rear: 1 x Mouse
    PowerWattage
    425W or 950W with Xeon W Series CPUs
    950W with Xeon W Series CPUs

    Voltage
    Input voltage 100 VAC-240 AC
    Dimensions (W x D x H)6.9 x 20.4 x 16.5 in
    17.6 x 51.8 x 41.8 cm
    Weight36 lb, 16 kg (Typical Configuration)
    TemperatureOperating: 5 °C to 35 °C (41 F to 95 °F)
    Storage: -40 °C to 65 °C (-40 F to 149 F)
  • Owner's Manual View | Download
    Quick Start Guide View | Download
    Rack Rails Installation Guide View | Download
    Statement of Volatility View | Download
    Dell Regulatory Environmental Datasheet View | Download
    European Union - CE Declaration Conformity View | Download
