Dual AMD EPYC 9004 Tower Workstation

Configure Your Dual AMD EPYC 9004 Tower Workstation

  • Configure

    Default Specifications

    Motherboard

    Gigabyte MZ73-LM0 rev 2.0
    AMD EPYC 9004 Dual Processor Gen5 Motherboard

    CPU Cooler

    Supermicro 4U Active CPU Cooler - SNK-P0084AP4

    Power Supply

    Corsair RM1000x 1000W 80+ Gold Fully Modular
    Corsair RM1200x 1200W 80+ Gold Fully Modular
    Corsair AX1600i 1600W 80+ Titanium Fully Modular
    Selection based on configuration

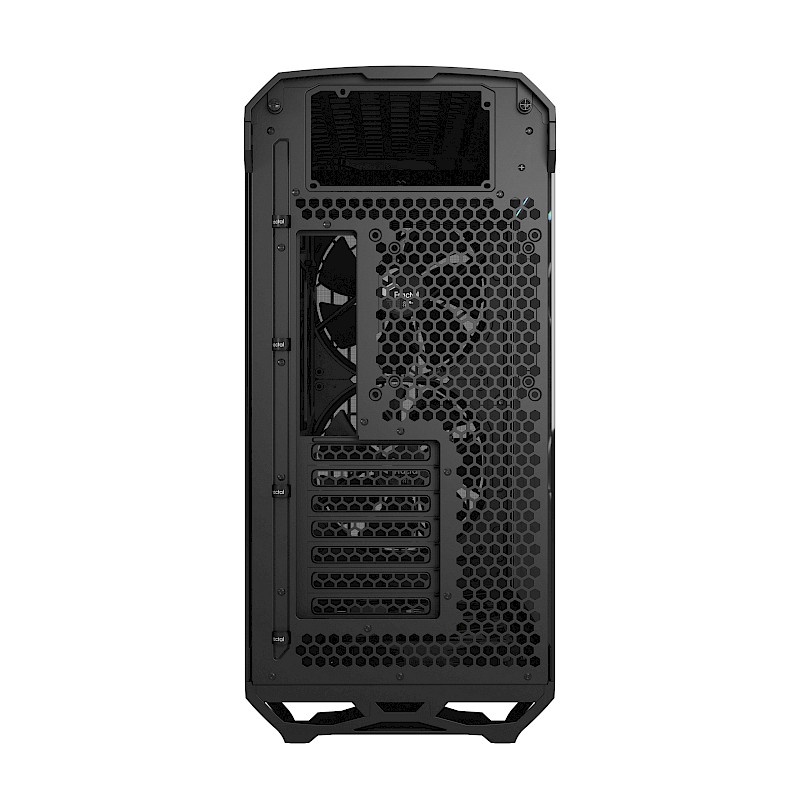

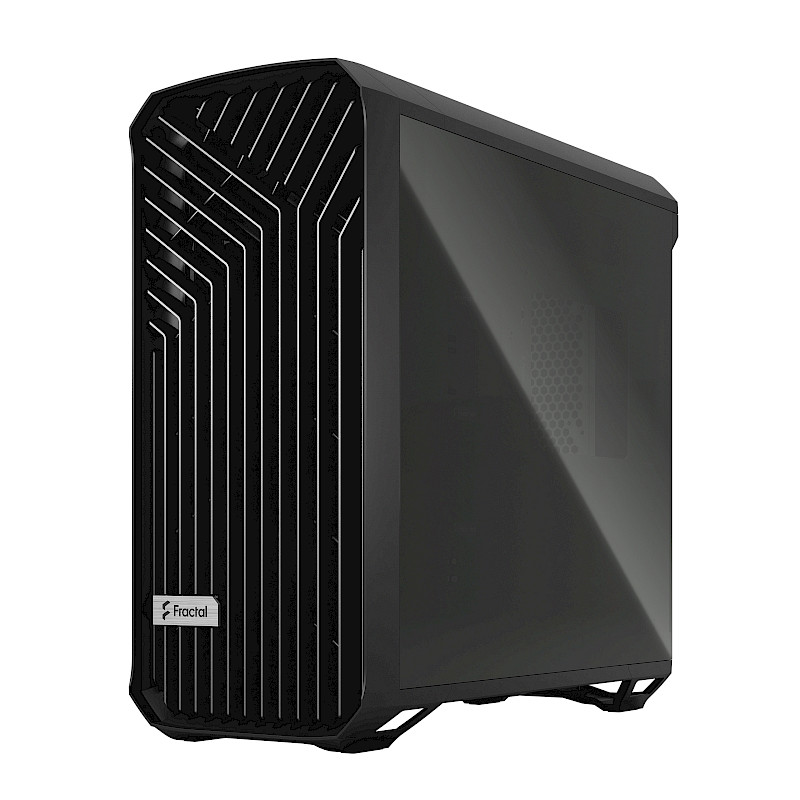

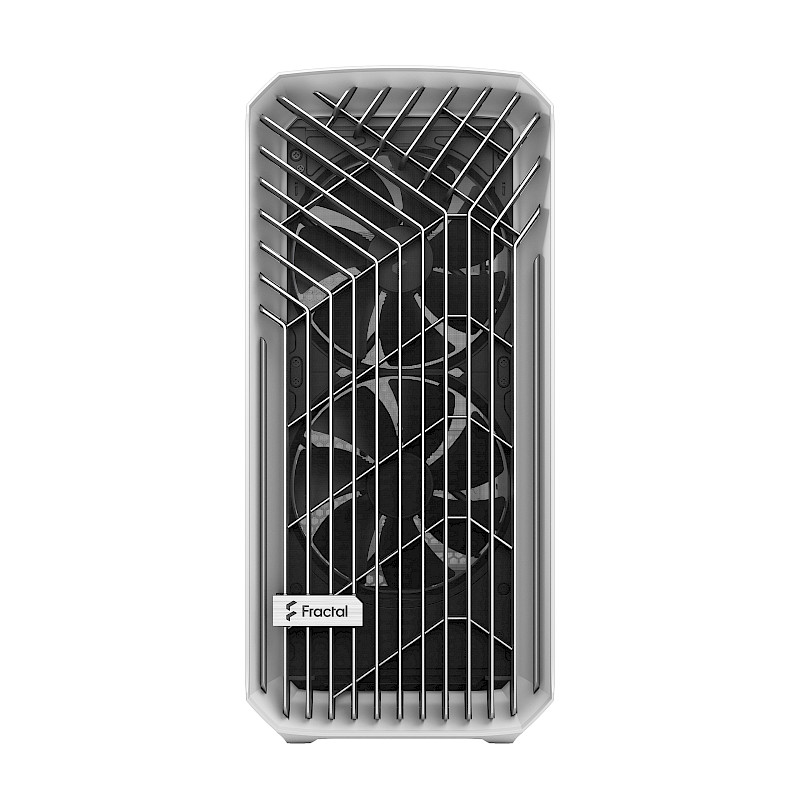

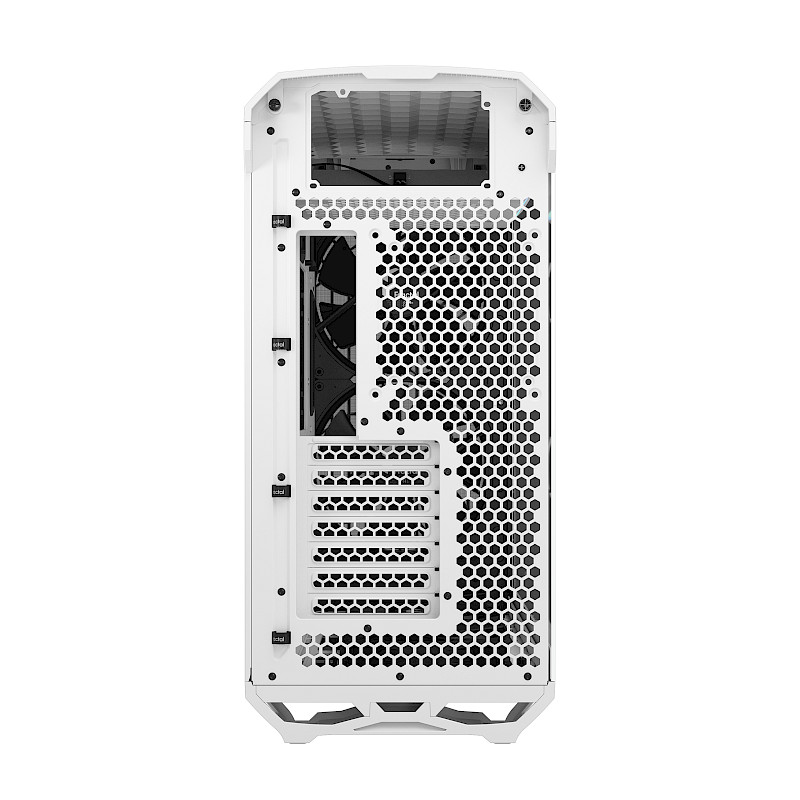

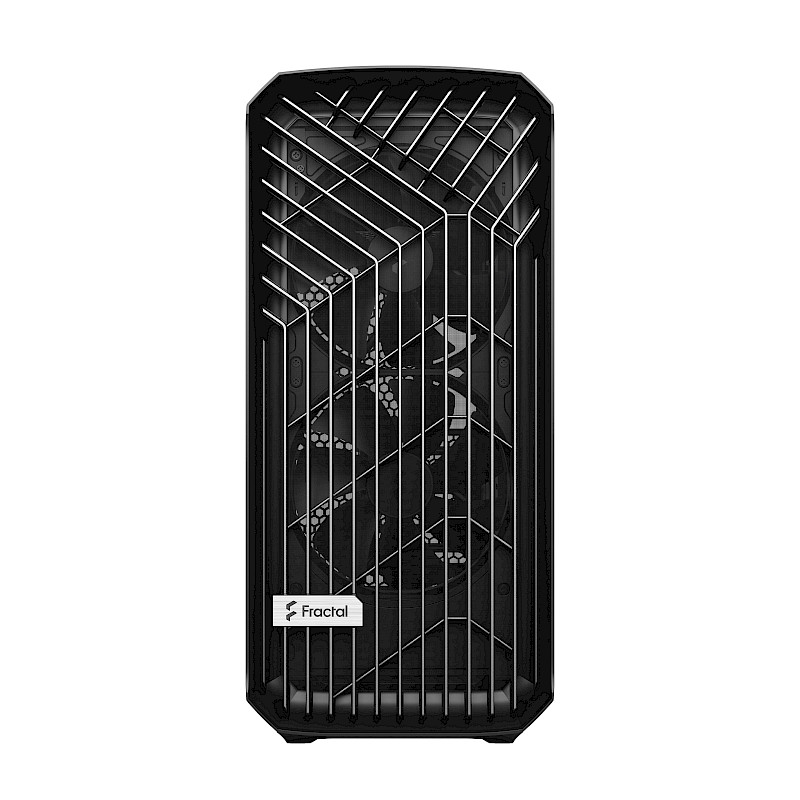

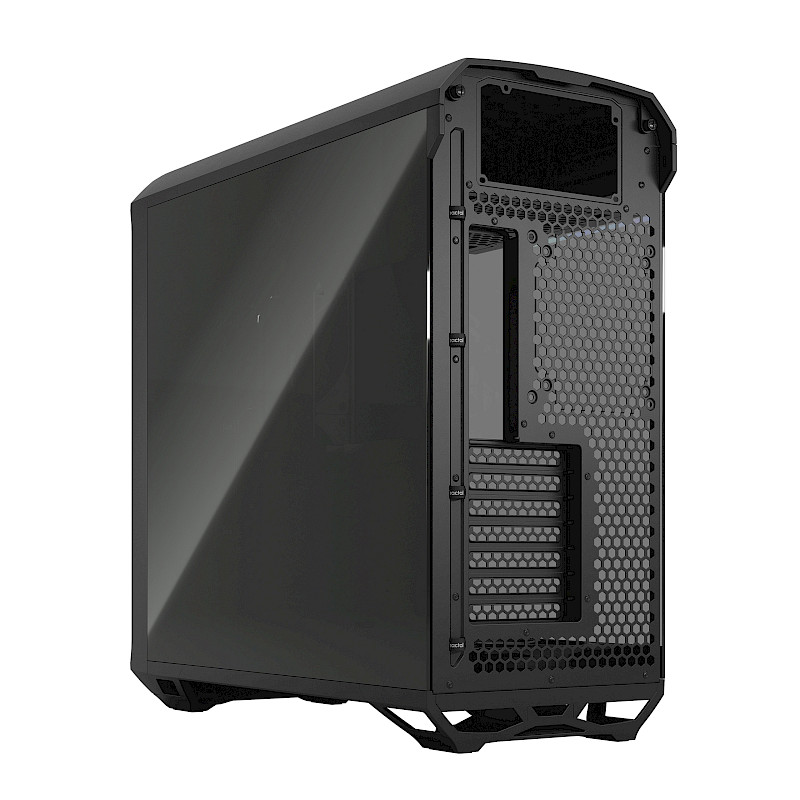

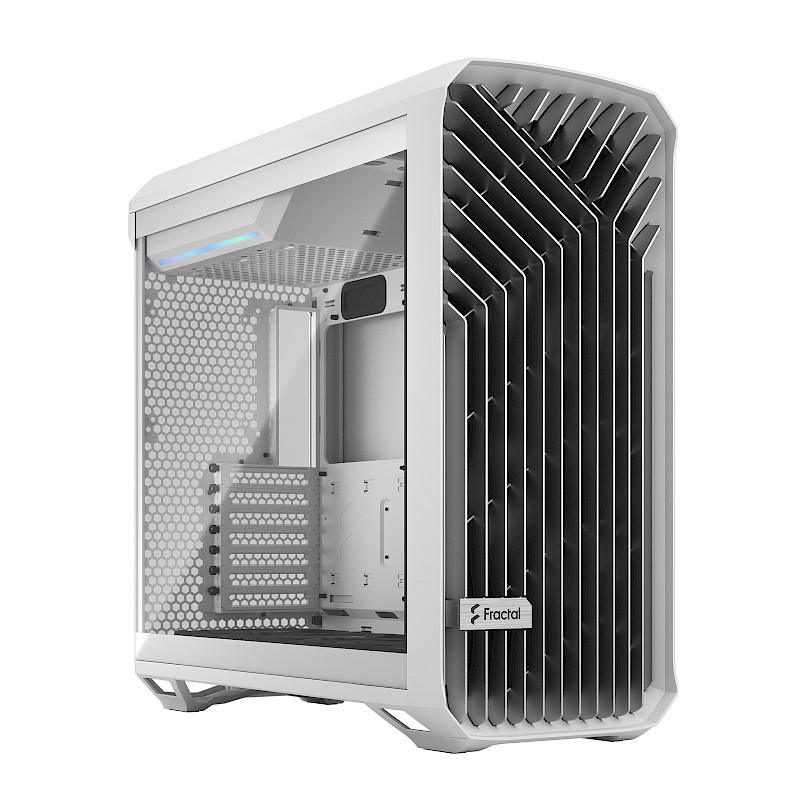

    Case

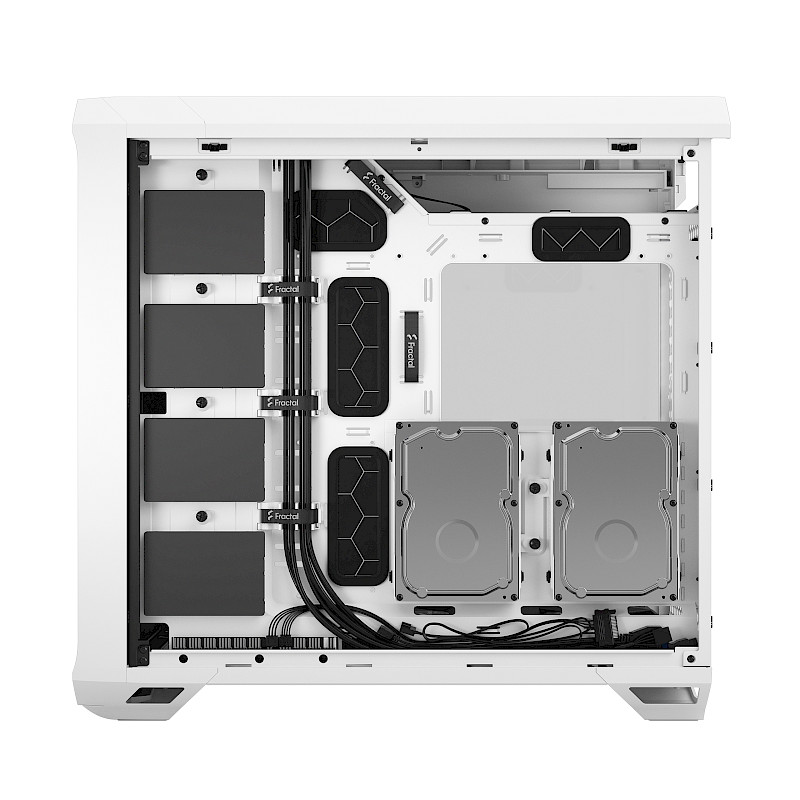

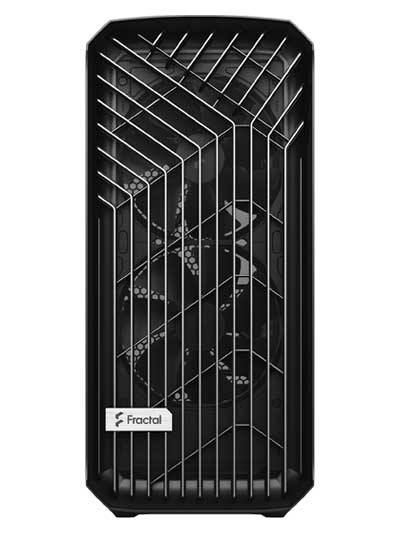

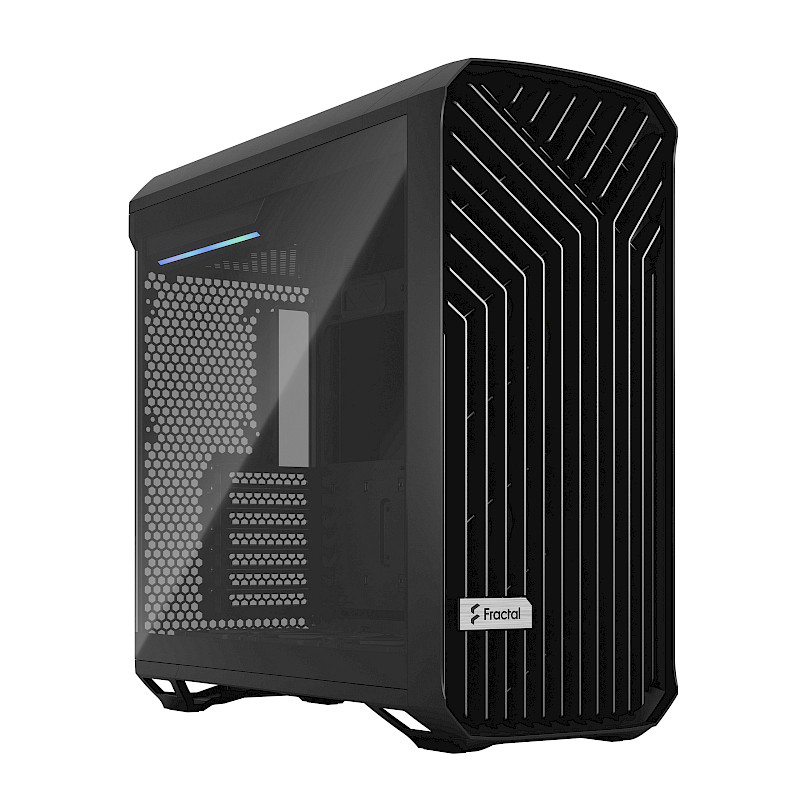

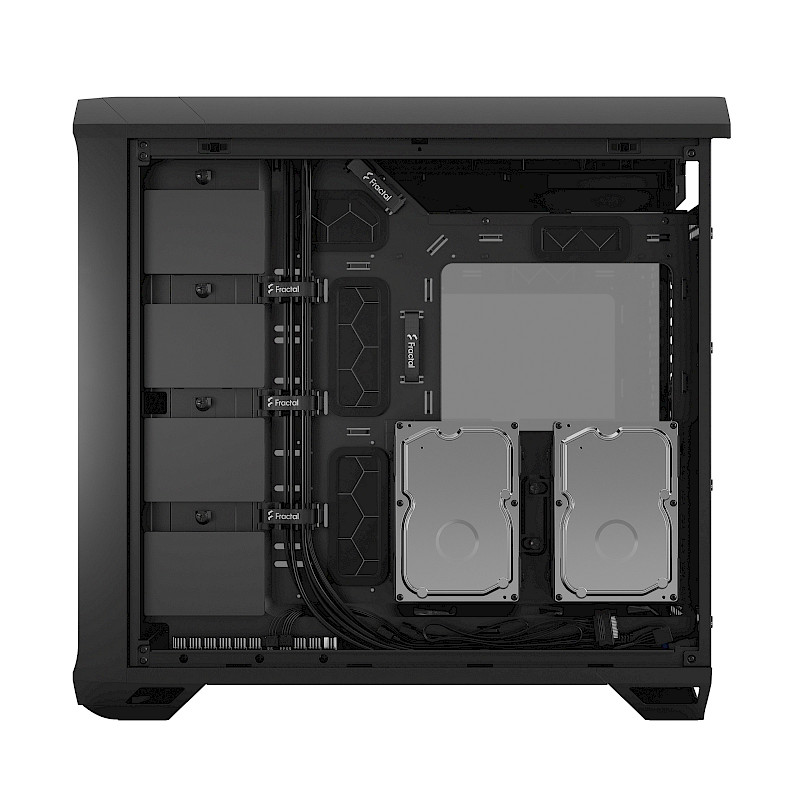

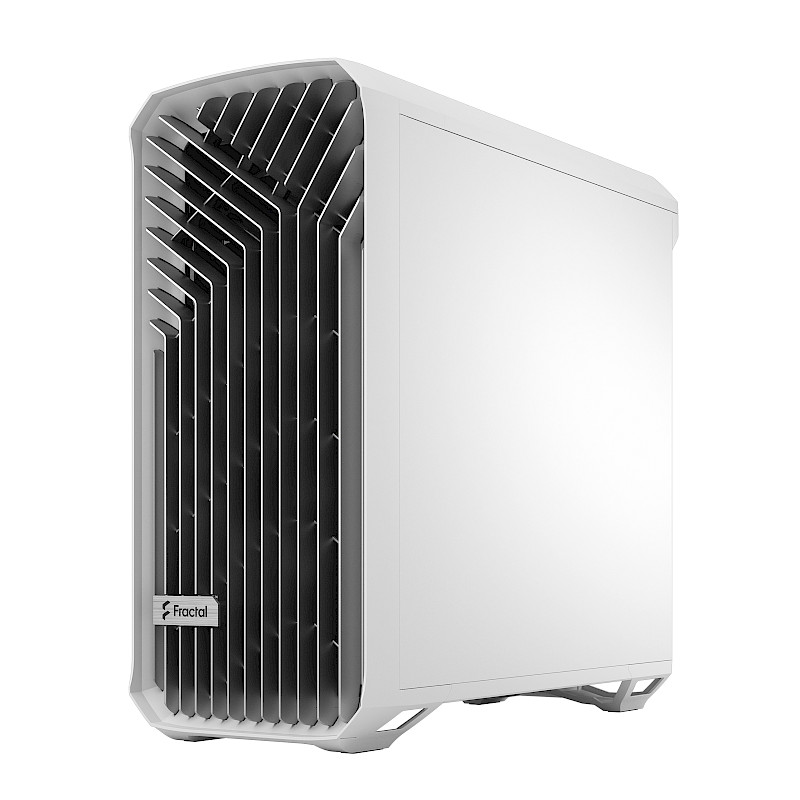

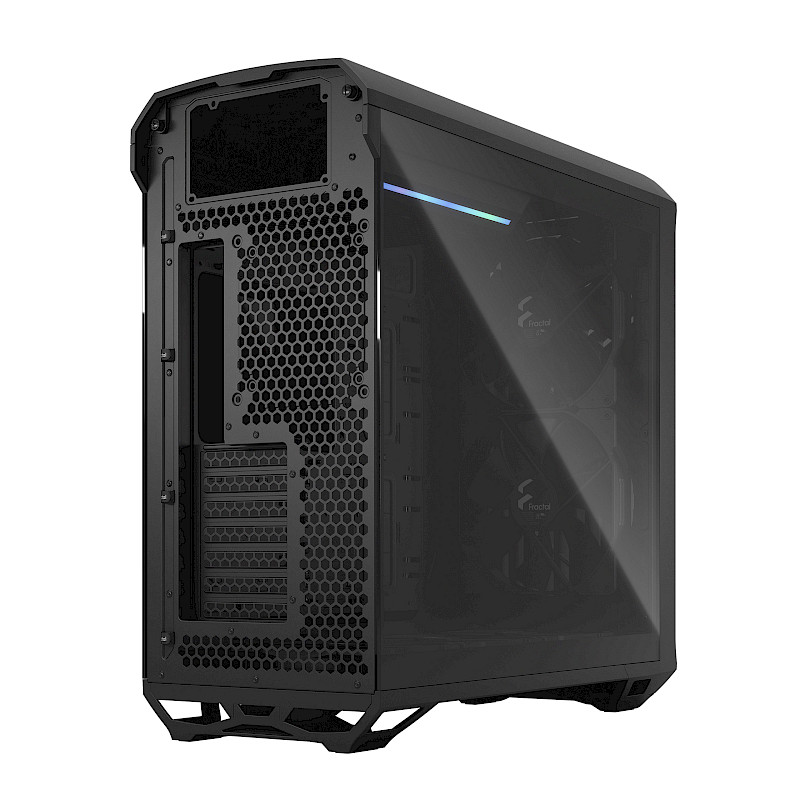

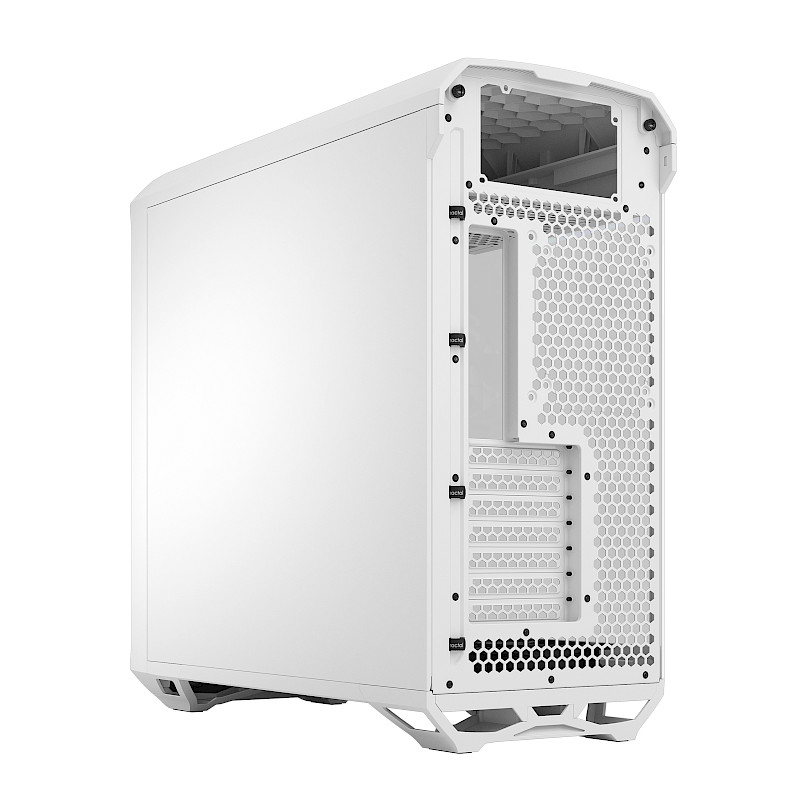

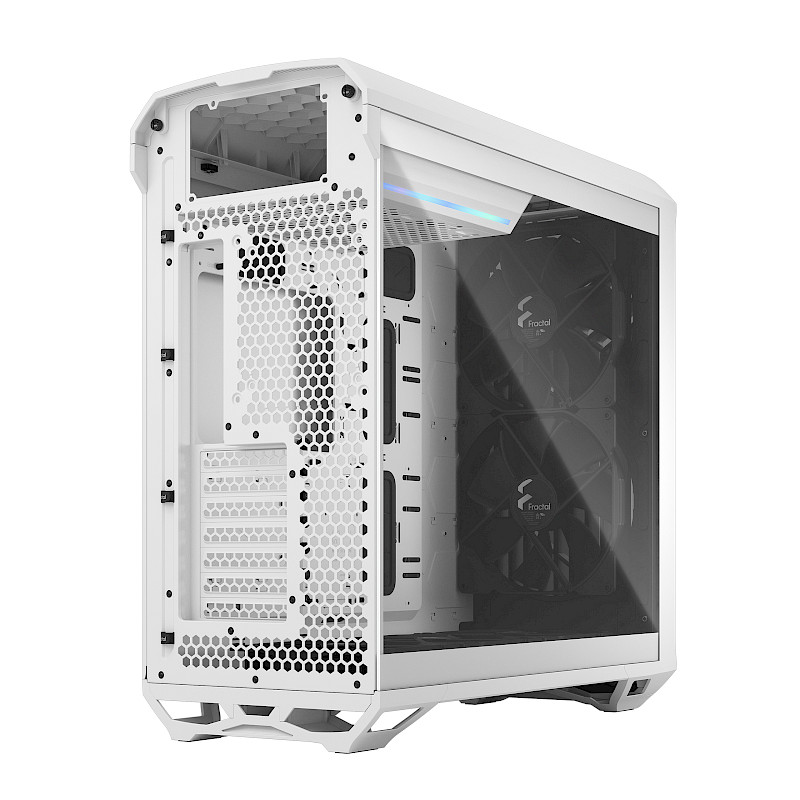

    The Fractal Design Torrent is a modern mid-tower case with open front grill and visible internal layout. Includes 3 140mm front fans, 2 180mm bottom fans, and 1 140mm rear fan for excellent cooling. Dedicated 2 3.5-inch and 4 2.5inch drive bays for large storage capacity. Available in black, gray, and white with a tempered glass side panel.

    Processor

    The Gigabyte MZ73-LM0 motherboard has dual AMD SP5 sockets supporting two AMD EPYC 9004 Series processors.

    Hyper-Threading support allows two threads to run simultaneously on each core - recognizing up to 512 total cores, 256 real and 256 virtual. 'Turbo Boost' support automatically boosts the processor speed based on workload - so if an application is only using one of the cores it will automatically increase the speed of the core in use and turn off the unused cores.

    AMD EPYC 9124 | 16 cores, 3.0GHz base clock
    Up to 3.7GHz Max Boost Clock, 64MB L3 Cache, 200W TDP more info
    AMD EPYC 9224 | 24 cores, 2.5GHz base clock
    Up to 3.7GHz Max Boost Clock, 64MB L3 Cache, 200W TDP more info
    AMD EPYC 9334 | 32 cores, 2.7GHz base clock
    Up to 3.9GHz Max Boost Clock, 128MB L3 Cache, 210W TDP more info
    AMD EPYC 9354 | 32 cores, 3.25GHz base clock
    Up to 3.8GHz Max Boost Clock, 256MB L3 Cache, 280W TDP more info
    AMD EPYC 9454 | 48 cores, 2.75GHz base clock
    Up to 3.8GHz Max Boost Clock, 256MB L3 Cache, 290W TDP more info
    AMD EPYC 9474F | 48 cores, 3.6GHz base clock
    Up to 4.1GHz Max Boost Clock, 256MB L3 Cache, 360W TDP more info
    AMD EPYC 9534 | 64 cores, 2.45GHz base clock
    Up to 3.7GHz Max Boost Clock, 256MB L3 Cache, 280W TDP more info
    AMD EPYC 9554 | 64 cores, 3.1GHz base clock
    Up to 3.75GHz Max Boost Clock, 256MB L3 Cache, 360W TDP more info
    AMD EPYC 9634 | 84 cores, 2.25GHz base clock
    Up to 3.7GHz Max Boost Clock, 384MB L3 Cache, 290W TDP more info
    AMD EPYC 9654 | 96 cores, 2.4GHz base clock
    Up to 3.7GHz Max Boost Clock, 384MB L3 Cache, 360W TDP more info
    AMD EPYC 9734 | 112 cores, 2.2GHz base clock
    Up to 3.0GHz Max Boost Clock, 256MB L3 Cache, 340W TDP more info
    AMD EPYC 9754 | 128 cores, 2.25GHz base clock
    Up to 3.1GHz Max Boost Clock, 256MB L3 Cache, 360W TDP more info

    Memory

    24 DIMM slots (12 per processor) supporting up to 6TB of DDR5 4800MT/s ECC Memory. AMD EPYC 9004 Series processors have 12 memory channels. Occupy all memory channels for optimal performance. Occupy less memory channels if you plan to increase memory in the future.

    We stock new condition, reputable brand memory including SK Hynix, Micron, and Samsung.

    Single / Dual Processor

    Dual Processor

    Storage | M.2

    One onboard PCIe 4.0 M.2 slot supporting a NVMe SSD. Four additional PCIe 4.0 M.2 NVMe SSDs can be added via optional PCIe slot adapters.

    PCIe 4.0 NVMe SSDs have read/write speeds averaging 6,000MB/s.

    We stock new condition, reputable brand, and latest model drives.
    512GB to 2TB drives are Samsung. 4TB and 8TB drives are Sabrent or Corsair.

    Storage | SATA SSD

    Four 2.5-inch SATA drive bays. SATA SSDs have read/write speeds averaging 500MB/s.

    We stock new condition, Samsung latest model drives.

    Storage | SATA HDD

    Two 3.5-inch SATA drive bays. SATA Hard Drives have read/write speeds averaging 250MB/s.

    We stock new condition, Western Digital and Seagate latest model drives.

    Graphics

    Four PCIe 5.0 x16 slots supporting up to two dual-width, full-height graphics cards.

    We stock NVIDIA Quadro professional-series and NVIDIA GeForce consumer-series graphics cards. If your application requires an AMD Radeon PRO graphics card, contact us for a custom quote.

    Network

    Two onboard 10Gb Ethernet RJ45 ports. Optional additional network adapters.

    Wireless

    Optional WiFi network connection with an external antenna for extended range.

    Operating System

    Choose the operating system that best meets your application requirements. Windows 10 Professional for Workstations is installed by default. We also offer the most popular Linux distributions. If you would like dual-boot or multiple partitions, contact us for a custom quote.

    Operating System

    Load Operating System

    Keyboard

    Choose your ideal keyboard.

    Mouse

    Choose your ideal mouse.

    $75 shipping per unit · Free local pickup

    Lead time: 1 to 2 weeks
    See Policies & FAQ for details.

    $ 3,750
  • Form FactorMid tower
    Processor FamilyAMD EPYC
    Dual CPU Socket SP5
    ProcessorsAMD EPYC 9004 Series
    Up to 96 Cores per processor
    Memory24 DIMM slots; 12 per processor
    12 memory channels per processor
    Up to 6TB DDR5 4800MT/s Registered ECC Memory
    StorageUp to 7 total drives
    1x M.2 NVMe PCIe Gen 4 slot
    4x 2.5-inch internal SATA drive bays
    2x 3.5-inch internal SATA drive bays
    Network2 Onboard 10Gb Ethernet LAN ports (Broadcom BCM57416)
    Optional: Intel AX200 802.11AC WiFi & Bluetooth 5
    Expansion Slots4 PCIe Gen 5 x16 slots
    1 PCIe Gen 4 x4 slot for a M.2 NVMe SSD
    Supports 2 full-height, double-width GPUs
    Ports and ConnectorsFront
    2x USB 3.0 Type-A
    1x USB 3.1 Gen 2 Type-C

    Rear
    4 USB 3.2 Gen 2 Type-A
    4 USB 3.2 Gen 1 Type-A
    1 USB 3.2 Gen 2x2 Type-C
    1 RJ45 10Gb Ethernet
    1 RJ45 1Gb Ethernet
    7.1 HD Audio jacks
    CoolingFront fans
    2x Dynamic GP-18 180 mm

    Bottom fans
    3x Dynamic GP-14 PWM 140 mm

    Rear fan
    1x Dynamic GP-14 PWM 140 mm
    Power Supply1000 - 1600 watt 80+ internal power supply depending on configuration
    DimensionsHeight: 21.4" (544mm)
    Width: 9.5" (242mm)
    Depth: 20.9" (530mm)

  • Documentation

    Fractal Torrent Product SheetView | Download
    Fractal Torrent User GuideView | Download
    Gigabyte MZ73-LM0 User ManualView | Download
