Dual AMD EPYC 9005 Tower Workstation

Configure Your Dual AMD EPYC 9005 Tower Workstation

  • Configure

    Default Specifications

    Motherboard

    Gigabyte MZ73-LM2 Rev. 3.x
    AMD EPYC 9005 Dual Processor Motherboard

    CPU Cooler

    Supermicro SNK-P0084AP4
    AMD Socket SP5 4U Active CPU Cooler

    Power Supply

    Corsair HX1000i 1000W 80+ Gold Fully Modular
    Corsair HX1200i 1200W 80+ Gold Fully Modular
    Seasonic Prime TX-1600 Noctua Edition 1600W 80+ Titanium Fully Modular
    Selection based on configuration

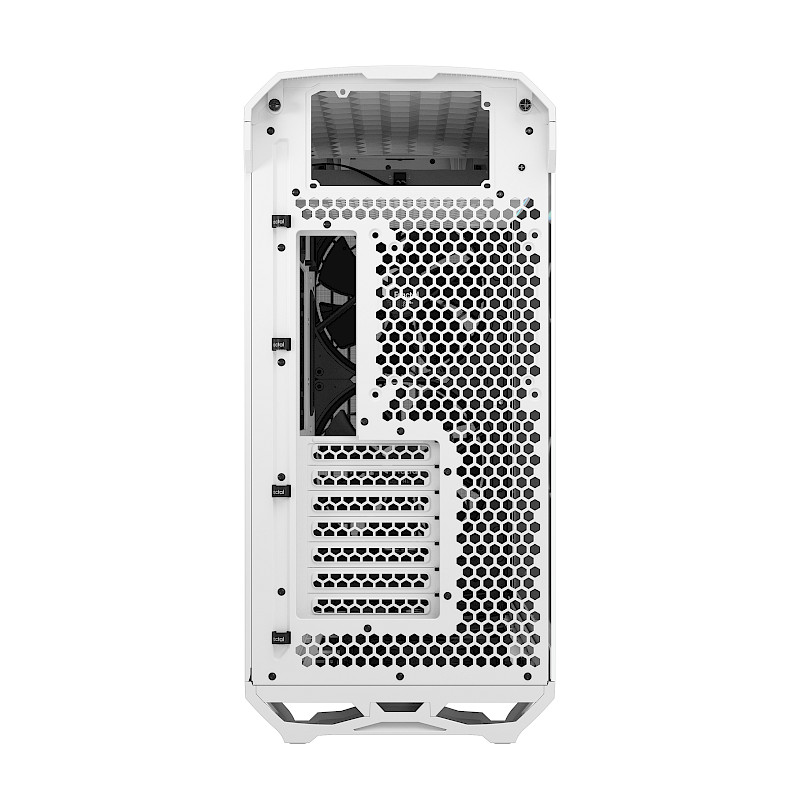

    Case

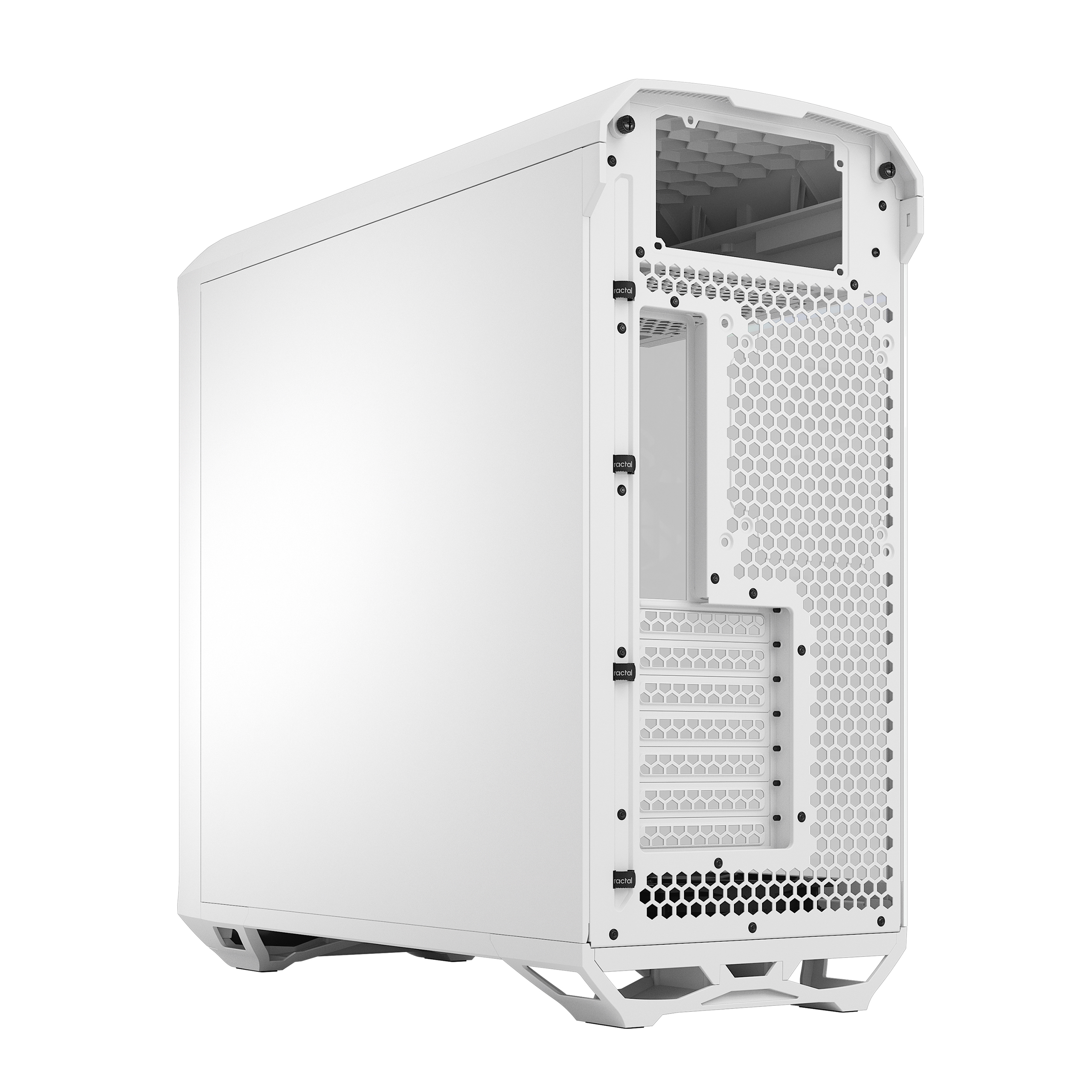

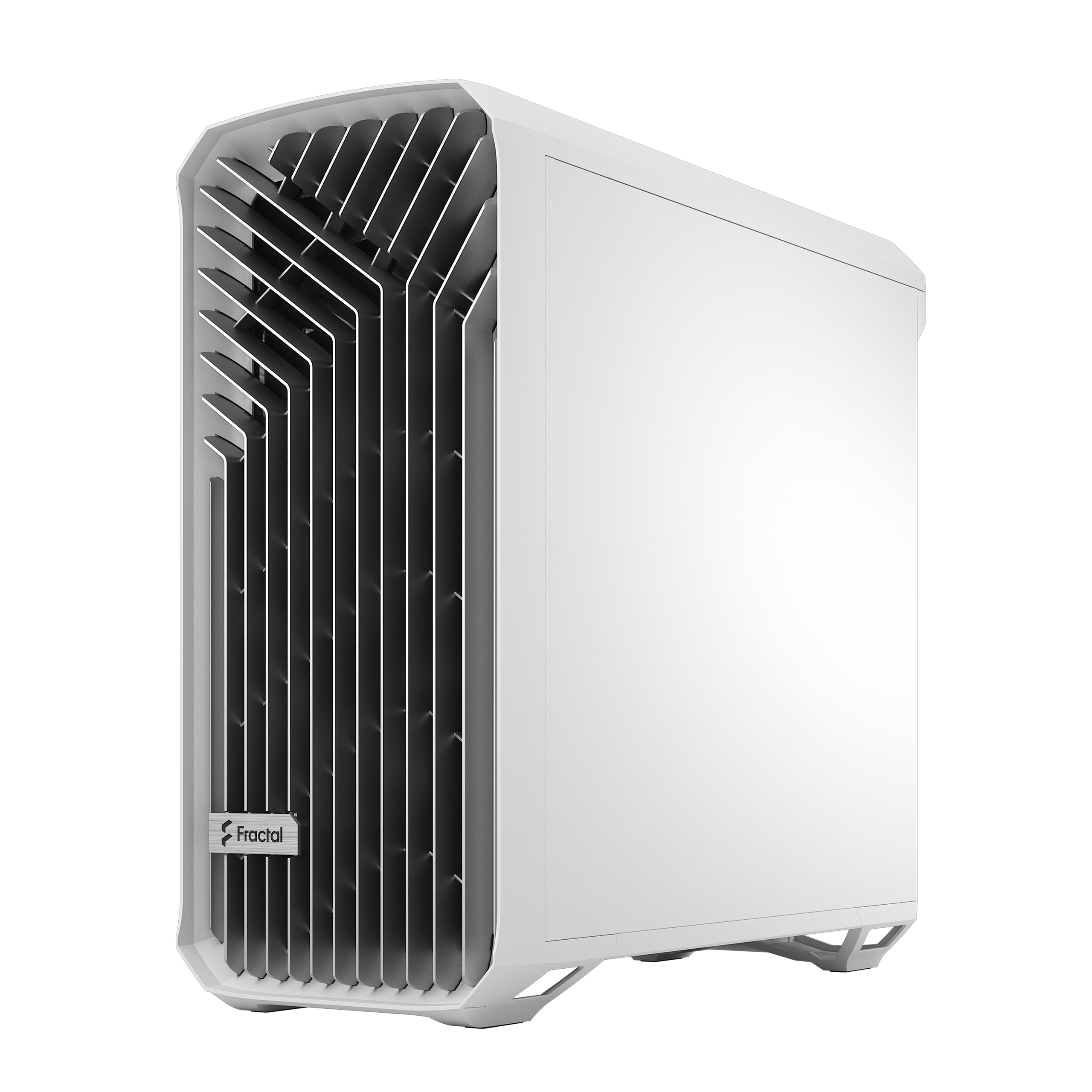

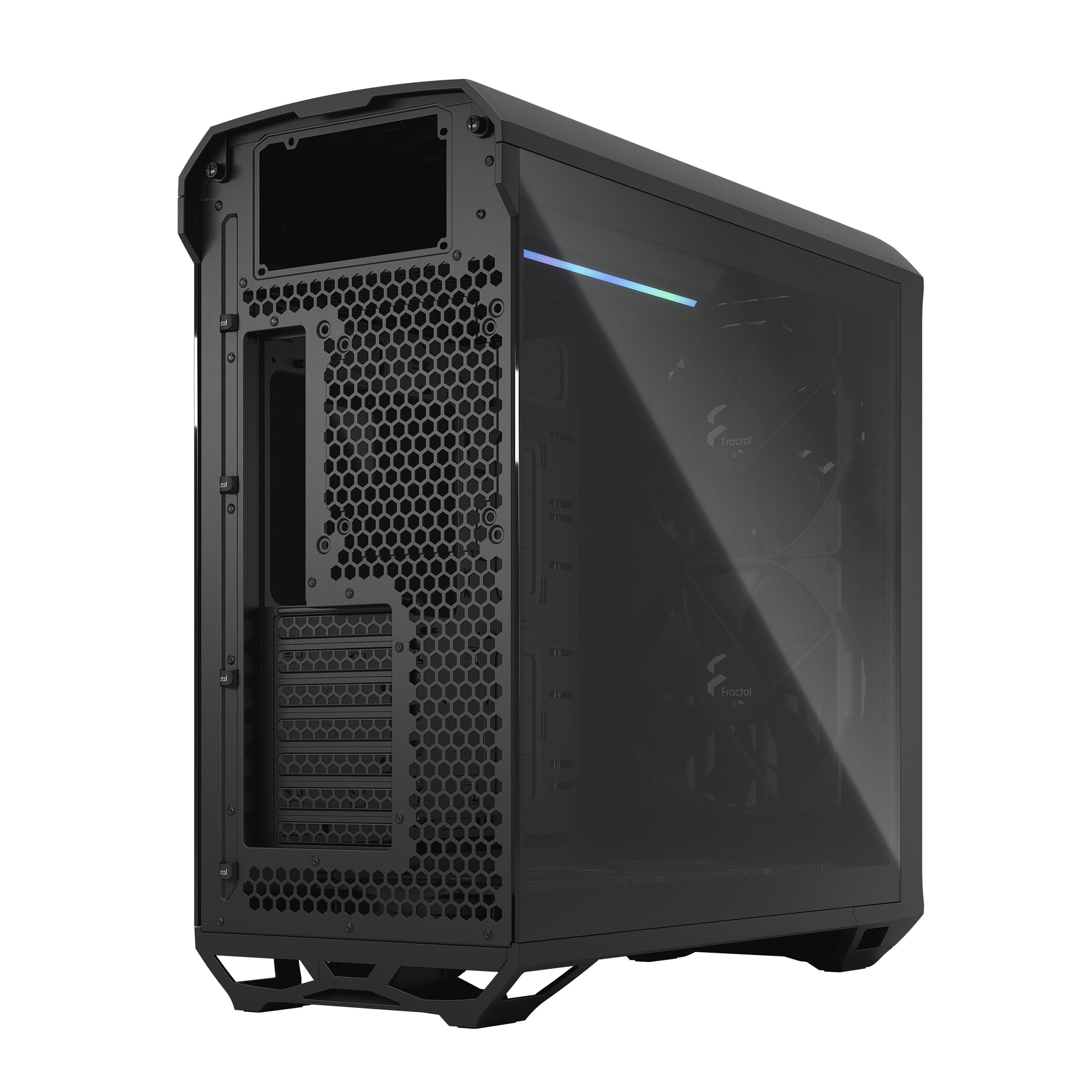

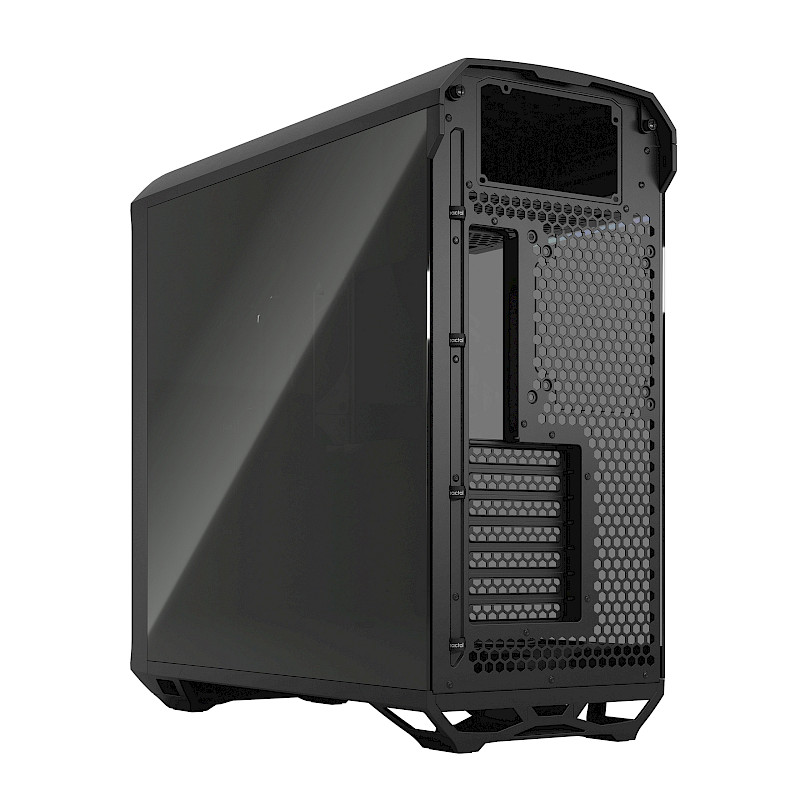

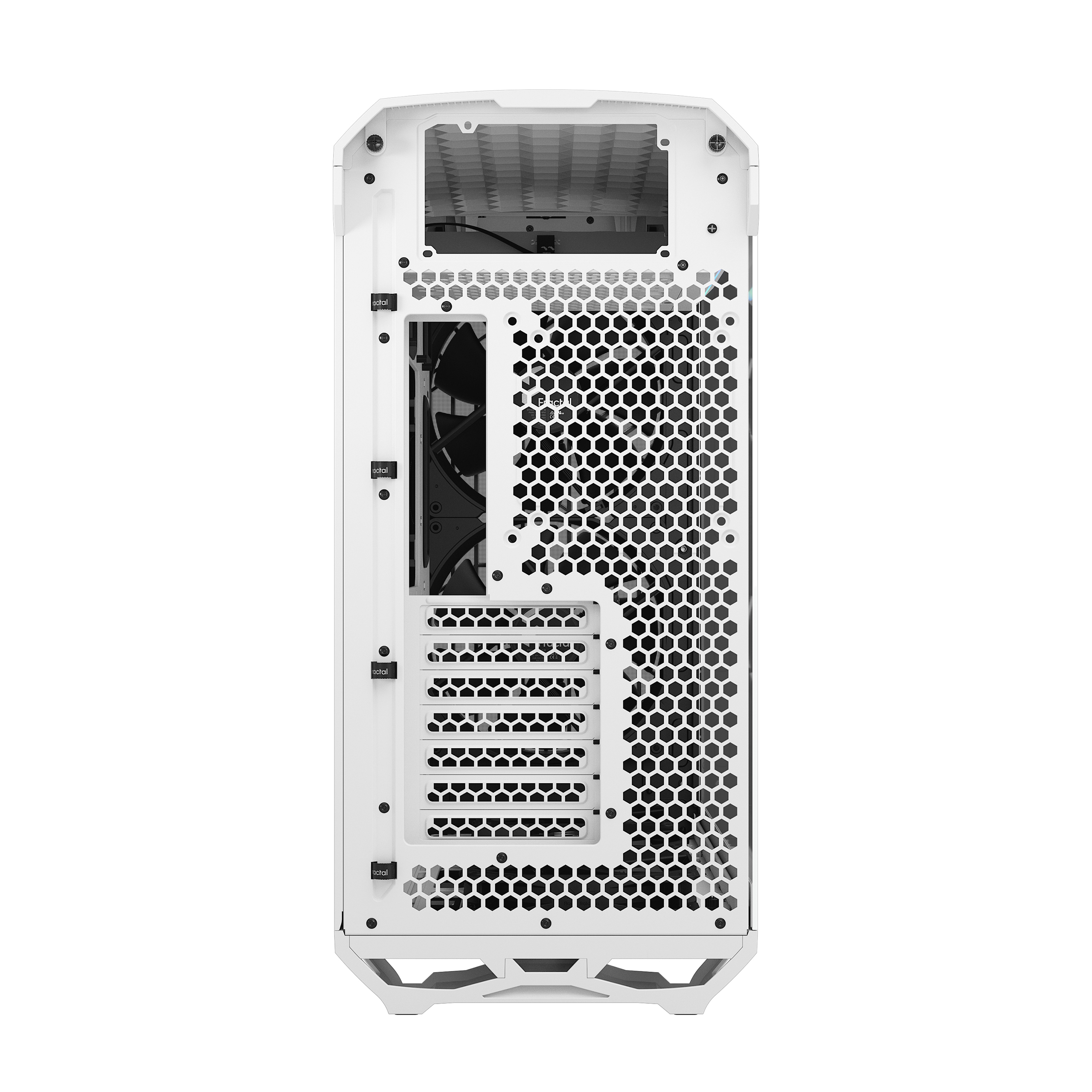

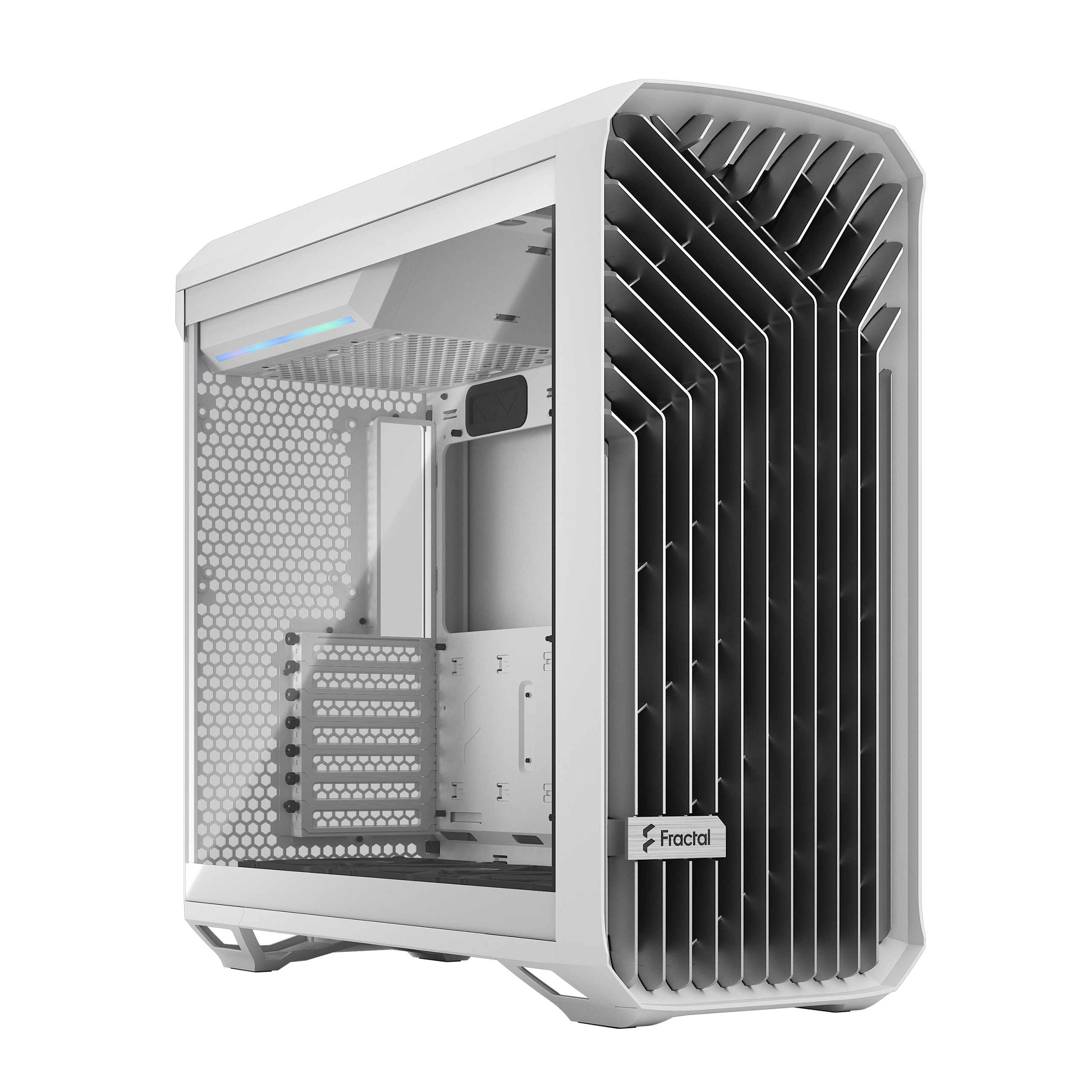

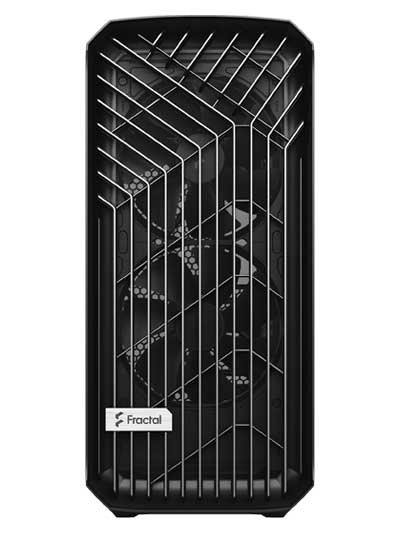

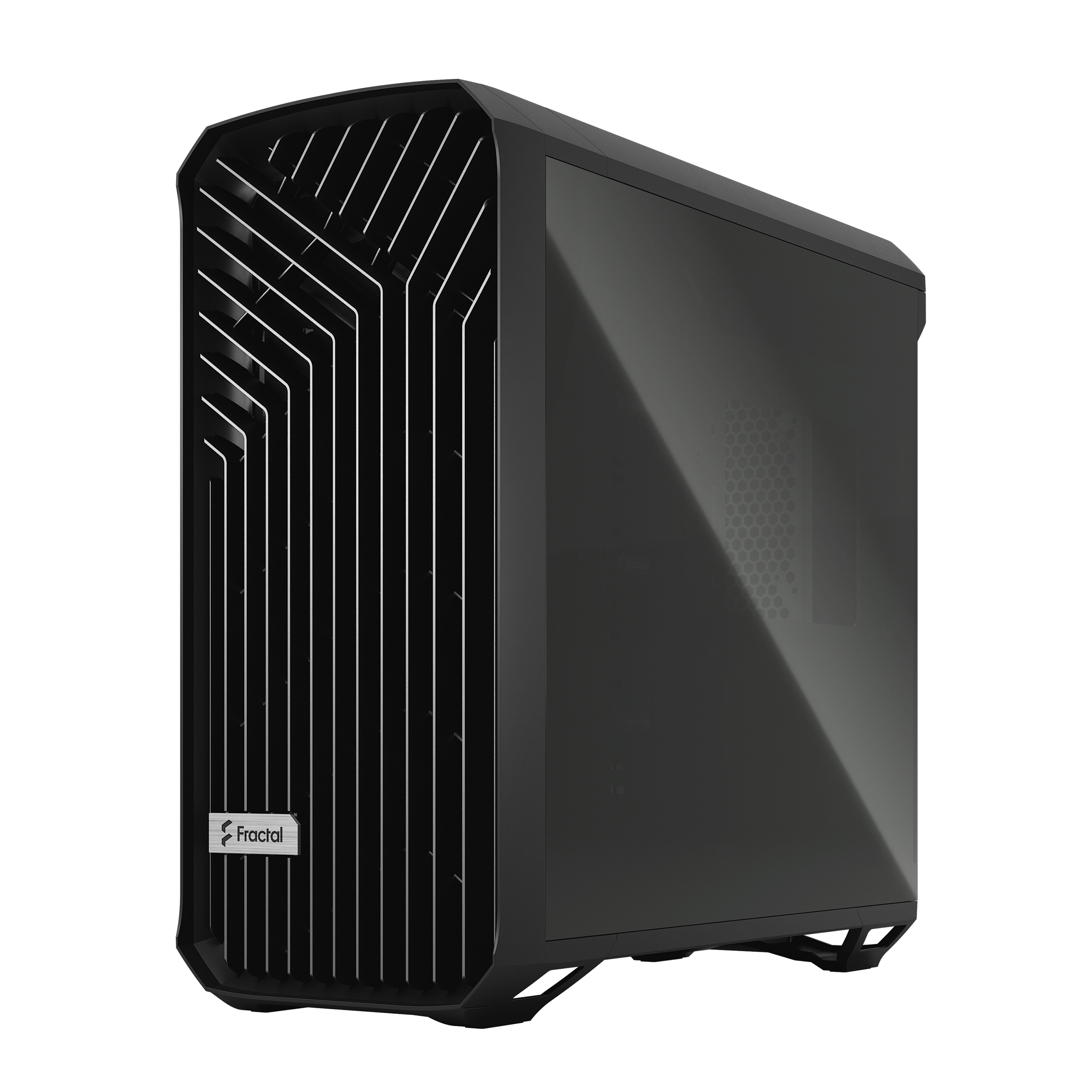

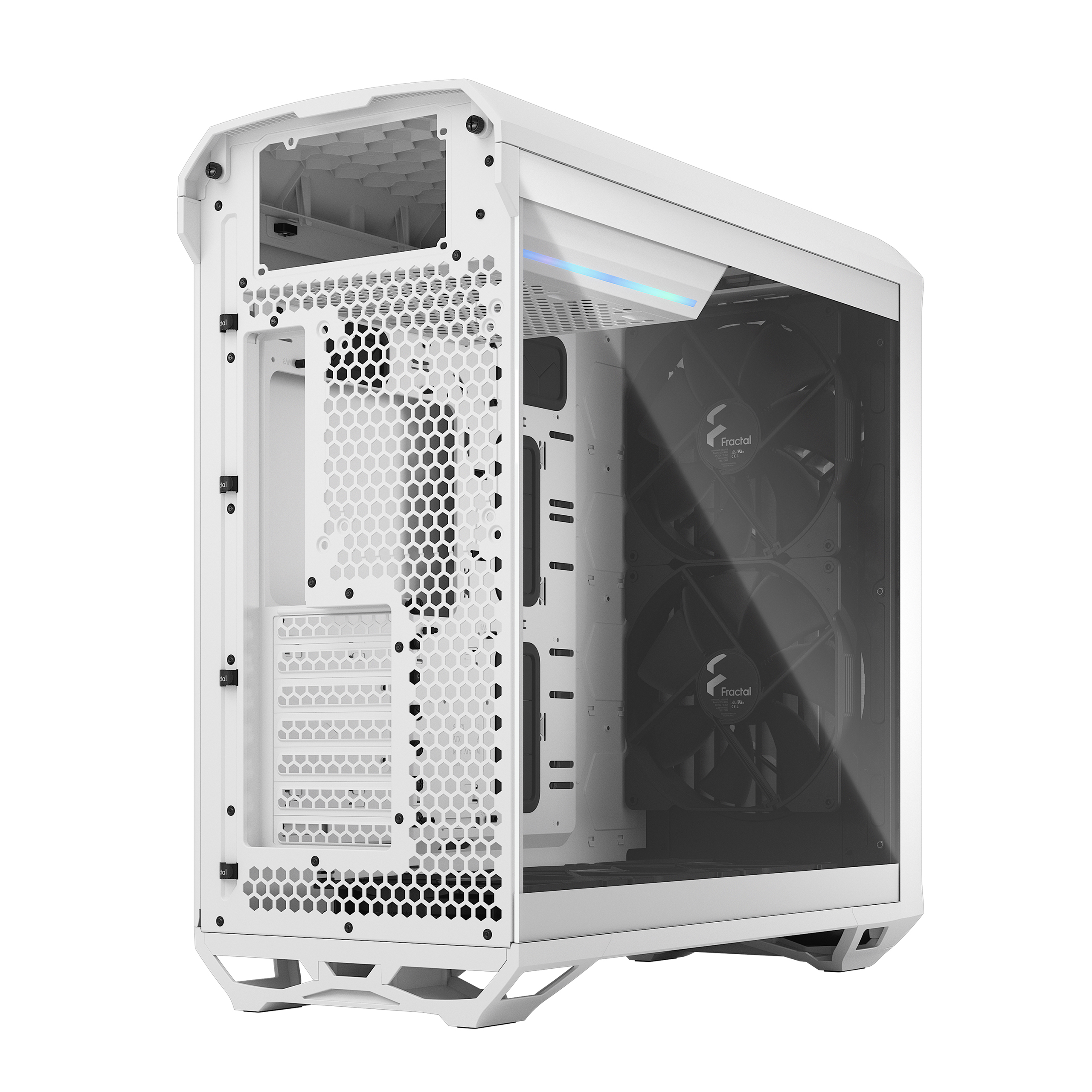

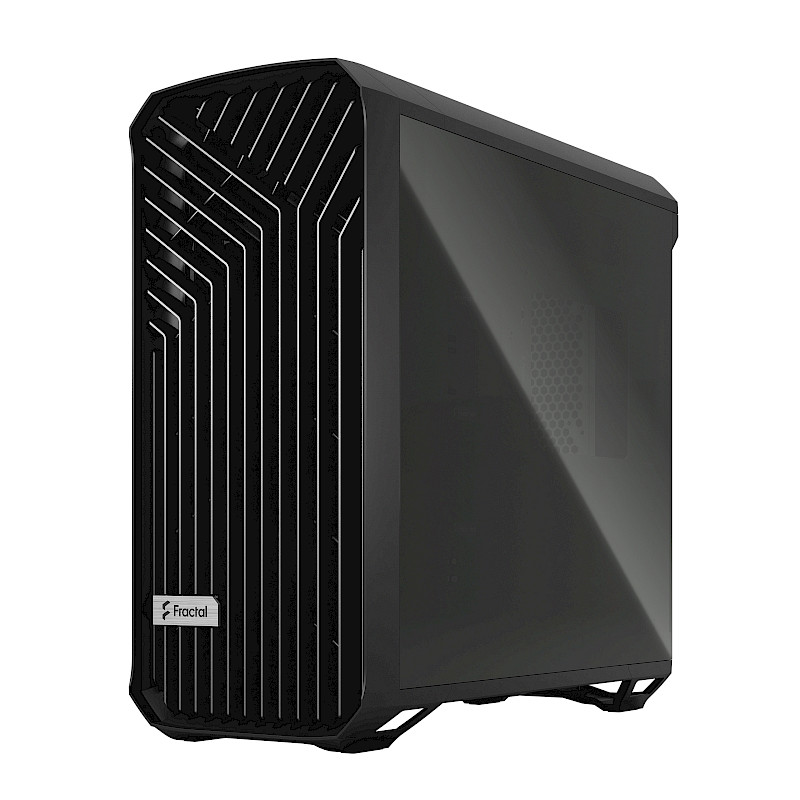

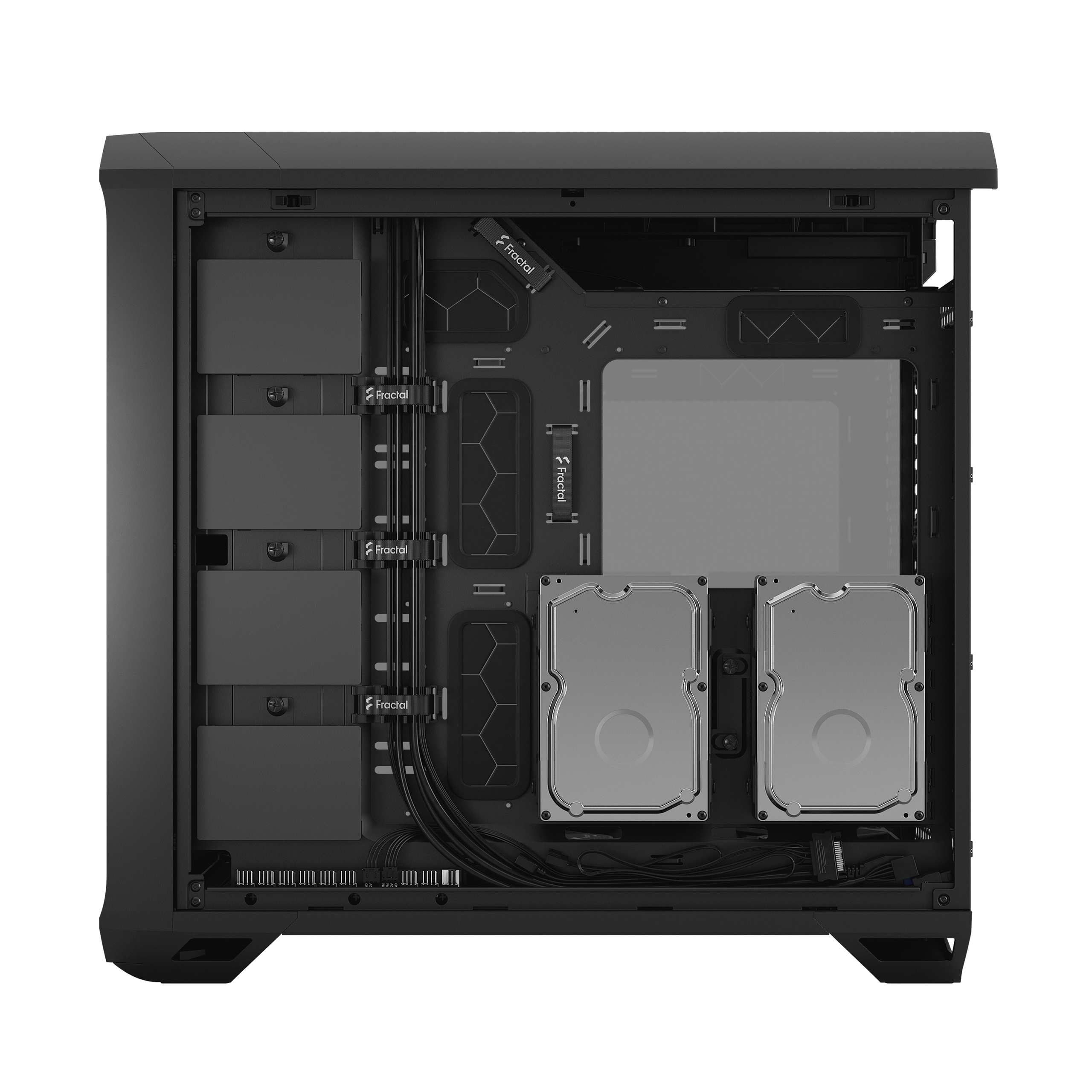

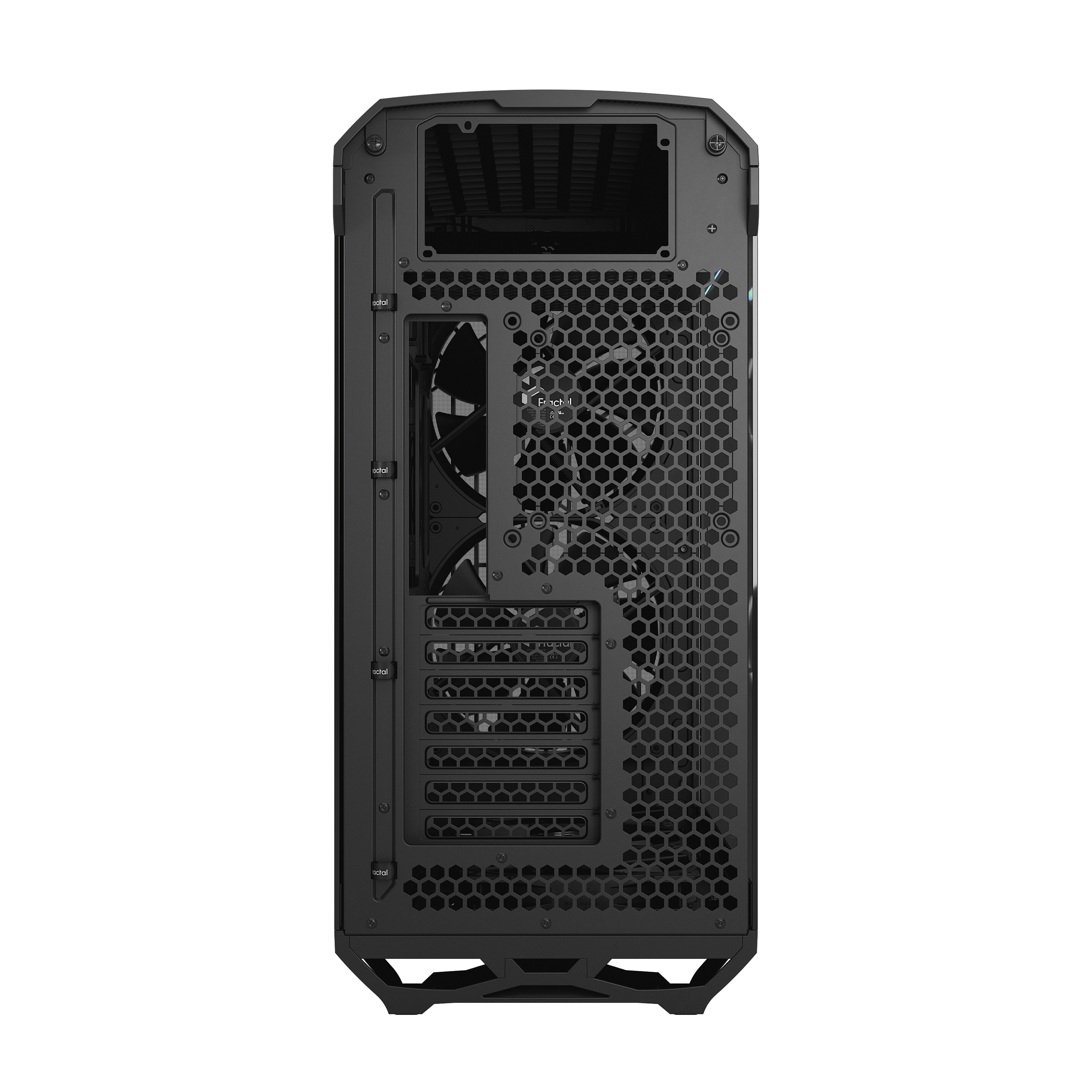

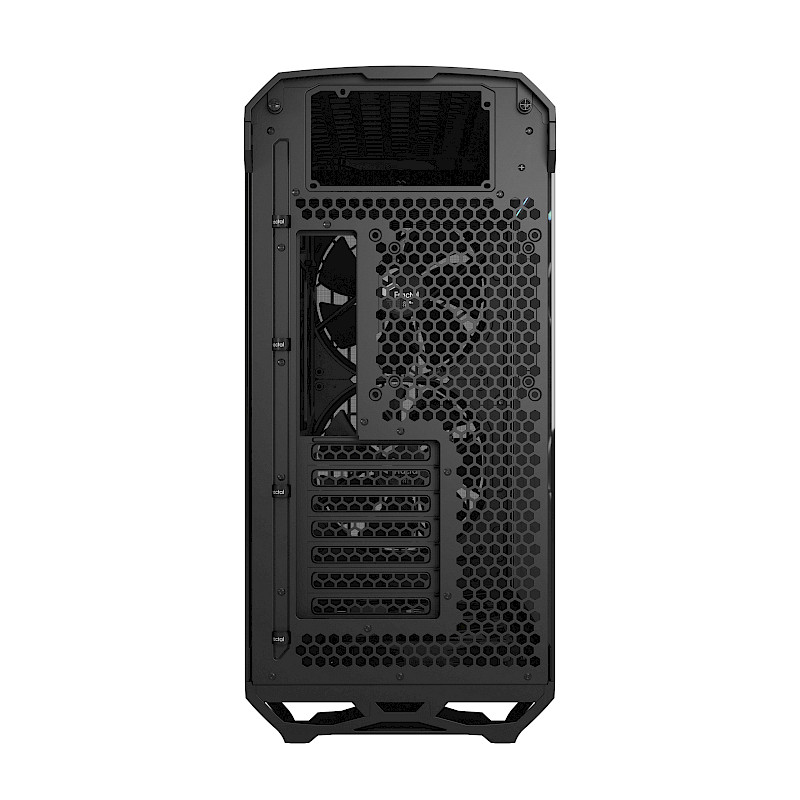

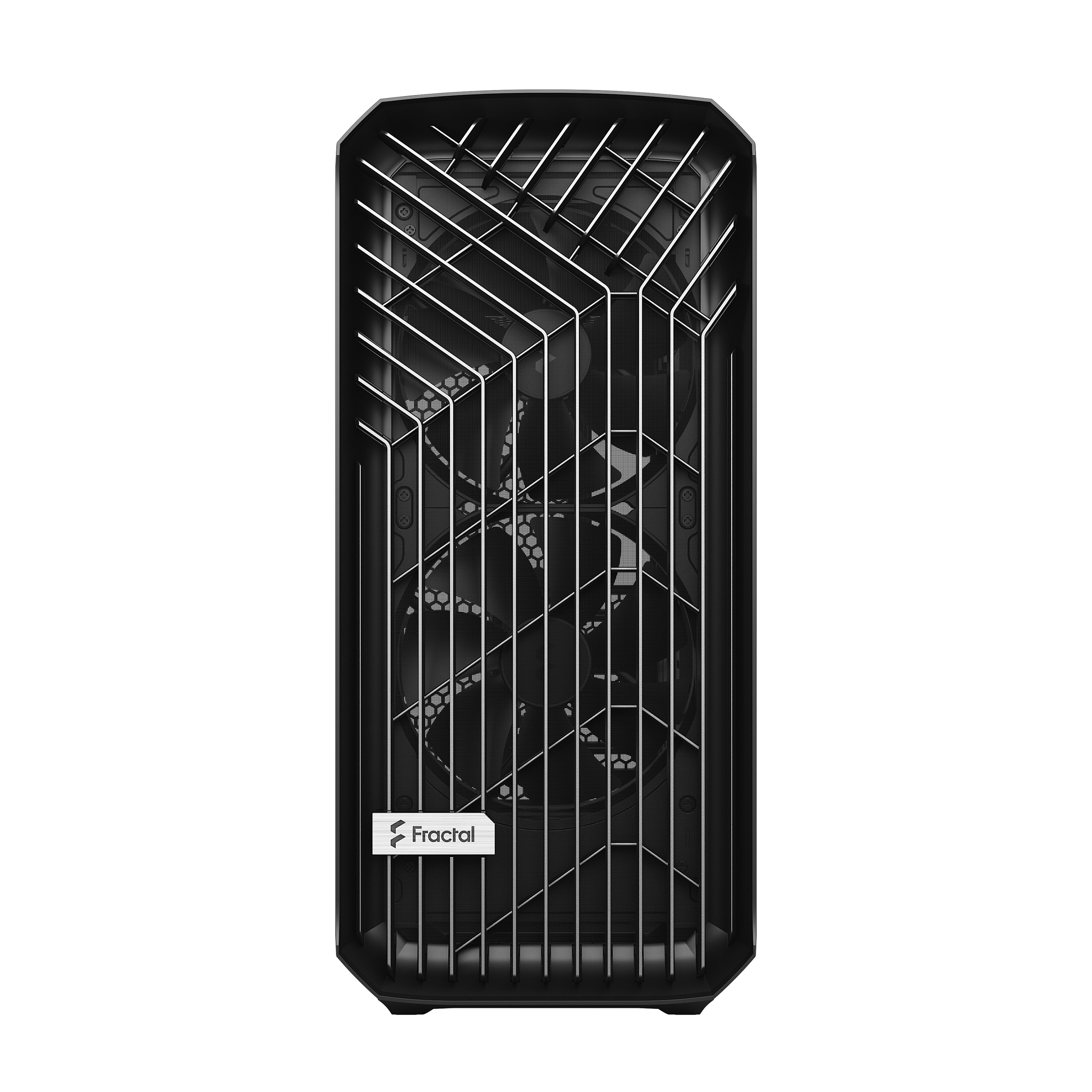

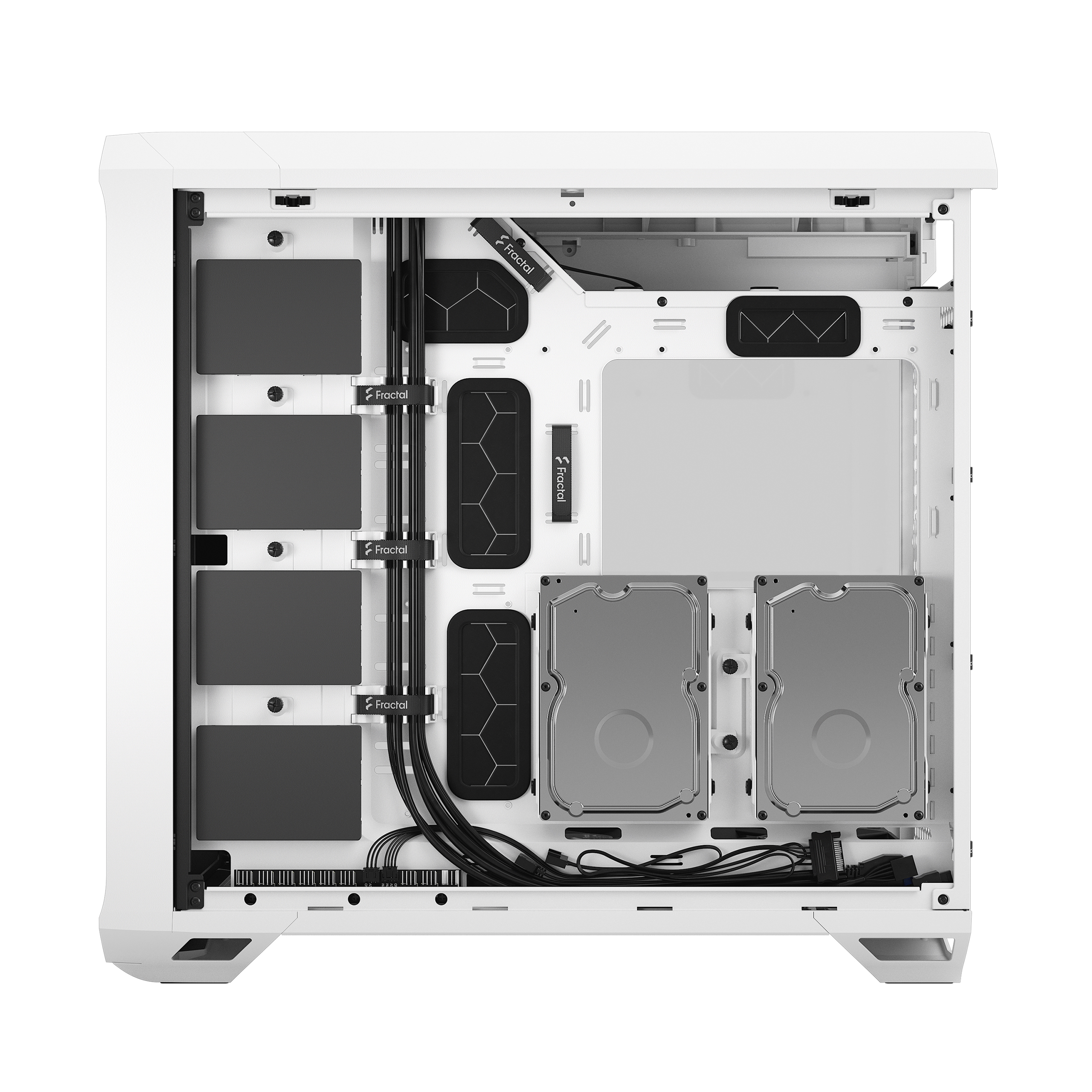

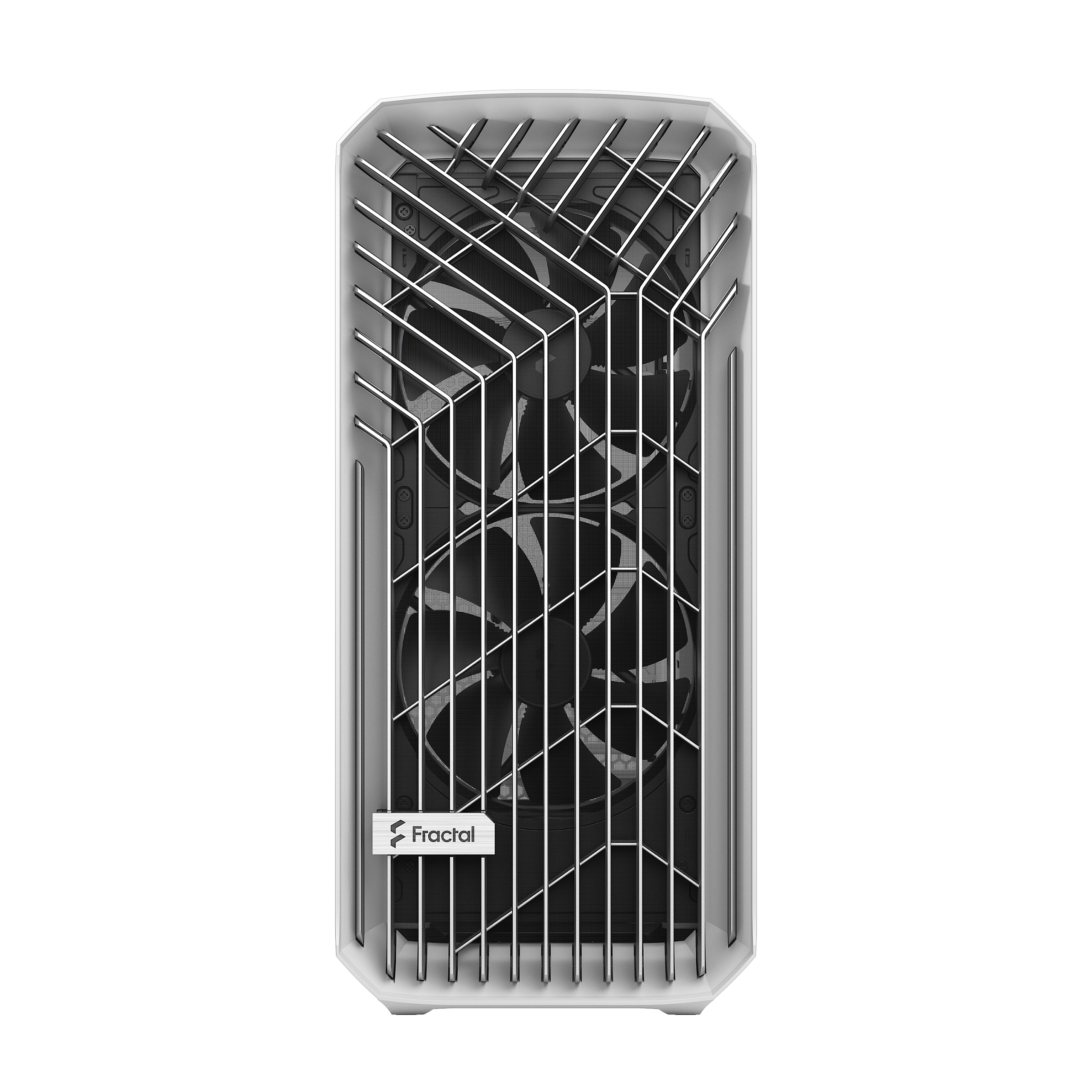

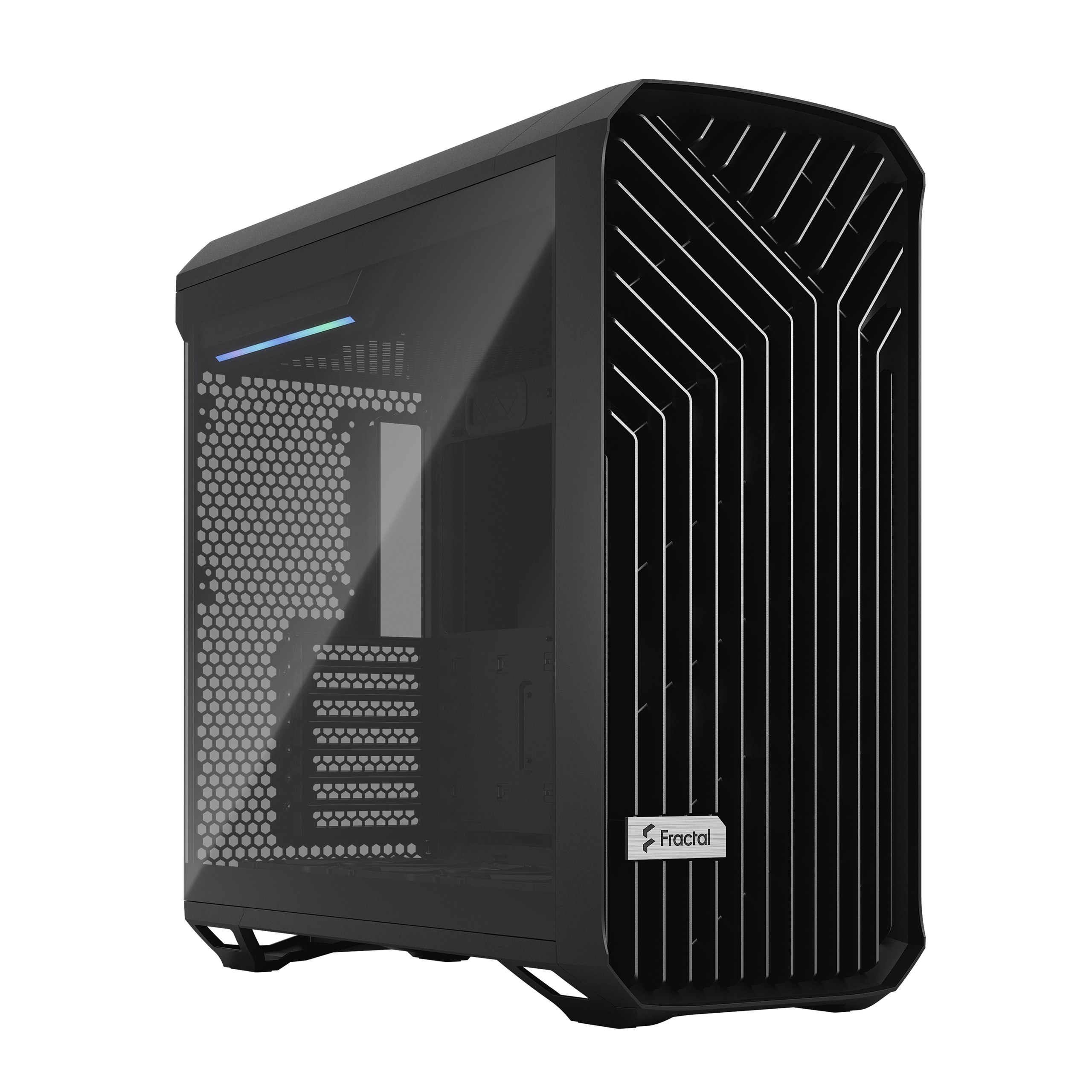

    The Fractal Design Torrent is a modern mid-tower case with open front grill and visible internal layout. Includes 3 140mm front fans, 2 180mm bottom fans, and 1 140mm rear fan for excellent cooling. Dedicated 2 3.5-inch and 4 2.5inch drive bays for large storage capacity. Available in black, gray, and white with a tempered glass side panel. The Fractal Meshify 3 and Fractal North are other modern-style mid-tower cases available with similar specifications as the Torrent.

    Processor

    The Gigabyte MZ73-LM2 motherboard has dual AMD SP5 (LGA 6096) sockets supporting two AMD EPYC 9005/series processors, up to 500W TDP.

    Hyper-Threading support allows two threads to run simultaneously on each core - recognizing up to 384 cores and 768 threads. 'Max Boost' support automatically boosts the processor speed based on workload - so if an application is only using one of the cores it will automatically increase the speed of the core in use and turn off the unused cores.

    Memory

    The Gigabyte MZ73-LM2 motherboard has 24 DIMM slots, 12 per processor socket, supporting up to 3TB of DDR5 6400MT/s ECC Registered Memory. AMD EPYC 9005 series processors have 12 memory channels. Occupy all memory channels for optimal performance. Occupy less memory channels if you plan to increase memory in the future.

    We stock new condition, reputable brand memory including SK Hynix, Micron, and Samsung.

    Single / Dual Processor

    Dual Processor

    Storage | M.2

    The Gigabyte MZ73-LM2 motherboard has 1 PCIe Gen5 x4 M.2 slot supporting a NVMe SSD. 4 additional PCIe 5.0 M.2 NVMe SSDs can be added via optional PCIe slot adapters.

    PCIe 4.0 M.2 NVMe SSDs have read/write speeds ~6,000MB/s. We stock Samsung 990 PRO or WD Black SN850X drives.
    PCIe 5.0 M.2 NVMe SSDs have read/write speeds ~12,000MB/s. We stock Samsung 9100 PRO or WD Black SN8100 drives.

    We stock new condition and latest model Samsung Pro and Western Digital Black drives.

    • PCIe 4.0 x4 (Gen4)

      PCIe 5.0 x4 (Gen5)

    • PCIe 4.0 x4 (Gen4)

      PCIe 5.0 x4 (Gen5)

    • PCIe 4.0 x4 (Gen4)

      PCIe 5.0 x4 (Gen5)

    • PCIe 4.0 x4 (Gen4)

      PCIe 5.0 x4 (Gen5)

    • PCIe 4.0 x4 (Gen4)

      PCIe 5.0 x4 (Gen5)

    Storage | SATA SSD

    The Fractal mid-tower case 4 2.5-inch SATA drive bays. SATA SSDs have read/write speeds averaging 500MB/s.

    We stock new condition, latest model Samsung drives.

    Storage | SATA HDD

    The Fractal mid-tower case has 2 3.5-inch SATA drive bays. SATA Hard Drives have read/write speeds averaging 250MB/s.

    We stock new condition, latest model Western Digital and Seagate drives.

    Graphics

    The Gigabyte MZ73-LM2 motherboard has 4 PCIe Gen5 x16 expansion slots supporting up to 4 single-width, 2 dual-width, or 1 triple-width graphics card.

    We stock NVIDIA Quadro professional-series and NVIDIA GeForce consumer-series graphics cards. If your application requires an AMD Radeon PRO graphics card, contact us for a custom quote.

    Network

    The Gigabyte MZ73-LM2 motherboard has 2 onboard 10Gb Ethernet RJ45 LAN ports and 1 onboard 1Gb Ethernet Management LAN port. Add 10Gb Ethernet network adapters if you plan to connect to multiple networks.

    Wireless

    Optional WiFi network connection with an external antenna for extended range.

    Operating System

    Choose the operating system that best meets your application requirements. Windows 10 Professional for Workstations is installed by default. We also offer the most popular Linux distributions. If you would like dual-boot or multiple partitions, contact us for a custom quote.

    Operating System

    Load Operating System

    Keyboard

    Choose your ideal keyboard.

    Mouse

    Choose your ideal mouse.

    $75 shipping per unit · Free local pickup

    Lead time: 1 to 2 weeks
    See Policies & FAQ for details.

    $ 4,000
  • Form FactorMid tower
    Processor FamilyAMD EPYC
    Single CPU Socket SP5 (LGA 6096)
    ProcessorsDual AMD EPYC 9005 Series
    Up to 192 Cores per processor
    TDP up to 500W
    Memory24 DDR5 DIMM slots
    12-Channel memory per processor
    Up to 6400 MT/s ECC Registered DIMM
    Up to 3TB RAM using 128GB DIMM
    StorageUp to 11 total drives
    1x M.2 NVMe PCIe Gen 5 slot (onboard)
    4x M.2 NVMe PCIe Gen 5 slot (via PCIe)
    4x 2.5-inch internal SATA drive bays
    2x 3.5-inch internal SATA drive bays
    Network2 10Gb Ethernet LAN (1 Broadcom BCM57416 chip)
    1 1Gb Ethernet Management LAN
    Expansion Slots4 PCIe Gen 5 x16 slots
    Supports 1 quad-width, 1 triple-width, 2 double-width, or 4 single-width GPUs
    Ports and ConnectorsFront
    2x USB 3.0 Type-A
    1x USB 3.1 Gen 2 Type-C

    Rear
    2 USB 3.2 Gen1 ports (Type-A)
    2 10GbE RJ45 ports
    1 VGA port
    1 COM port
    CoolingFront fans
    2x Dynamic GP-18 180 mm

    Bottom fans
    3x Dynamic GP-14 PWM 140 mm

    Rear fan
    1x Dynamic GP-14 PWM 140 mm
    Power Supply1000 - 1600 watt 80+ internal power supply depending on configuration
    DimensionsHeight: 21.4" (544mm)
    Width: 9.5" (242mm)
    Depth: 20.9" (530mm)

  • Documentation

    Fractal Torrent Product SheetView | Download
    Fractal Torrent User GuideView | Download
    Gigabyte MZ73-LM0 User ManualView | Download
