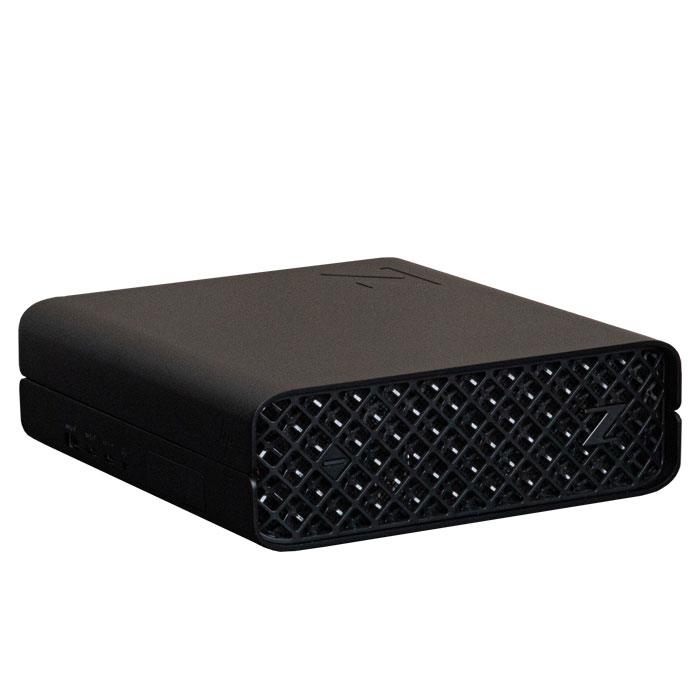

Configure Your HP Z2 G9 Mini Workstation

Name: HP Z2 G9 Mini
Brand: HP
Rating: 4.7 (92 reviews)
Author: X.solutions

Configure
Processor
Memory
Storage | M.2
Storage | SATA
Graphics
WiFi / BT
OS
KB / Mouse
3Dconnexion
Processor
The HP Z2 G9 Mini has one LGA1700 processor socket supporting one 13th Generation Intel Core i7/i9 processor. Multiple processor cores allow you to run multiple applications simultaneously and boost clock speeds up to 5.6 GHz increasing performance in both single-threaded and multithreaded applications.
Intel Core i7-13700 | 16 cores, 2.1GHz base, 5.2GHz turbo $ more info
Intel Core i7-13700K | 16 cores, 3.4GHz base, 5.4GHz turbo $ more info
Intel Core i9-13900 | 24 cores, 2.0GHz base, 5.6GHz turbo $ more info
Memory
The HP Z2 G9 Mini has 2 SO-DIMM Slots supporting up to 64GB DDR5 4800 MT/s Memory. Choose more memory to improve overall system performance.
16GB of 4800MT/s DDR5 Memory $
32GB (2x 16GB) of 4800MT/s DDR5 Memory $
64GB (2x 32GB) of 4800MT/s DDR5 Memory $
Storage | M.2 more info
The HP Z2 G9 Mini has 2 slots for PCIe 4.0 M.2 NVMe SSDs. We recommend a NVMe SSD as the primary boot drive for the operating system and applications. A 2nd NVMe SSD can be added as a dedicated work drive for active projects files - CAD files, footage, photos, etc. PCIe 4.0 NVMe M.2 SSDs perform at ~5,000MB/s.
M.2 Slot 1
M.2 Slot 2
500GB NVMe M.2 PCIe 4.0 Solid-State Drive $
1TB NVMe M.2 PCIe 4.0 Solid-State Drive $
2TB NVMe M.2 PCIe 4.0 Solid-State Drive $
4TB NVMe M.2 PCIe 4.0 Solid-State Drive $
8TB NVMe M.2 PCIe 4.0 Solid-State Drive $
None $
500GB NVMe M.2 PCIe 4.0 Solid-State Drive $
1TB NVMe M.2 PCIe 4.0 Solid-State Drive $
2TB NVMe M.2 PCIe 4.0 Solid-State Drive $
4TB NVMe M.2 PCIe 4.0 Solid-State Drive $
8TB NVMe M.2 PCIe 4.0 Solid-State Drive $
Storage | SATA
The HP Z2 G9 Mini has 1 slot for a 2.5-inch SATA SSD. You can select a SATA drive for storage, backup, or project files. SATA Solid-State Drives perform at 500MB/s.
None $
500GB SATA 2.5" Solid-State Drive $
1TB SATA 2.5" Solid-State Drive $
2TB SATA 2.5" Solid-State Drive $
4TB SATA 2.5" Solid-State Drive $
8TB SATA 2.5" Solid-State Drive $
Graphics
The HP Z2 G9 Mini supports one graphics card and has 4 mini-DisplayPort outputs.
Integrated Intel UHD Graphics 770 $
NVIDIA Quadro T400 4GB Graphics $
NVIDIA Quadro T600 4GB Graphics $
NVIDIA Quadro T1000 4GB Graphics $ more info
NVIDIA Quadro T1000 8GB Graphics $
NVIDIA Quadro RTX A2000 12GB Graphics $
Wireless + Bluetooth
The Z2 G9 Mini comes standard with 1x RJ-45 1Gb Ethernet port and Wi-Fi 6E and BT 5.0.
Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz) & BT 5.0 $
Operating System
Choose the operating system that best fits your application requirements.
None $
Windows 10 Professional 64-bit $
Windows 11 Professional 64-bit $
Ubuntu 22.04 LTS $
Keyboard
Choose your keyboard.
None $
HP USB Keyboard $
HP Wireless Keyboard $
Mouse
Choose your mouse.
None $
HP USB Optical Mouse $
HP Wireless Optical Mouse $
3Dconnexion
None $
3Dconnexion USB CADMouse $ more info
3Dconnexion USB SpaceMouse Compact $ more info
3Dconnexion USB SpaceMouse Pro $ more info
3Dconnexion USB SpaceMouse Enterprise $ more info
3Dconnexion Wireless CADMouse Pro $ more info
3Dconnexion Wireless SpaceMouse $ more info
3Dconnexion Wireless SpaceMouse Pro $ more info
Condition more info
New $
Talk to a Specialist
(310) 916-4444
sales@x.solutions
Ships from Los Angeles, CA
Specifications
Save Configuration
Want to save this unique configuration or share it with someone? Simply click the save button and we'll provide you with a link.
Email
Create Quote
Add your configuration(s) to your cart if you would like to create a personalized quote.
Configuration Help
Have more questions about your configuration? Need professional assistance? We are here to help!
Click the Contact Us button to fill out a contact form with your current configuration or call us at (310) 916-4444.
$50 shipping per unit · Free local pickup
2 Year Warranty · Condition: New
Lead time: 1 to 2 weeks
See Policies & FAQ for details.
Quantity
$ 1,750

Manufacture Year(s)	2022 - current
Form Factor	Mini Portable PC Rackable - 7 per 5U
Processor Socket	LGA 1700
Processor Family	12th Generation Intel Core i9 processor 12th Generation Intel Core i7 processor 12th Generation Intel Core i5 processor
Memory	2 DIMM Slots up to 64 GB DDR5-4400 non-ECC RAM up to 64 GB DDR5-4400 ECC RAM Transfer rates up to 4400 MT/s.
Internal Storage	1x 2.5-inch SATA 2x M.2 2280 PCIe x4 (for NVMe SSD)
Audio	Realtek ALC3205-VA2-CG 2.0W internal mono speaker
Communications	Integrated Intel I219-LM GbE
Ports and Connectors	Side: 1 headphone/microphone combo; 1 USB Type-A 10Gbps (1 charging); 2 USB Type-C® 20Gbps Rear: 1 RJ-45; 2 DisplayPort 1.4; 3 USB Type-A 10Gbps
Power	280W external power adapter
Dimensions (W x D x H)	8.3 x 8.6 x 2.7 in / 21.1 x 21.8 x 6.9 cm
Weight	Starting at 5.29 lb / 2.4 kg Exact weight depends on configuration.

Documentation
Datasheet View | Download
Quick Specs View | Download

Datasheet	View \| Download
Quick Specs	View \| Download
