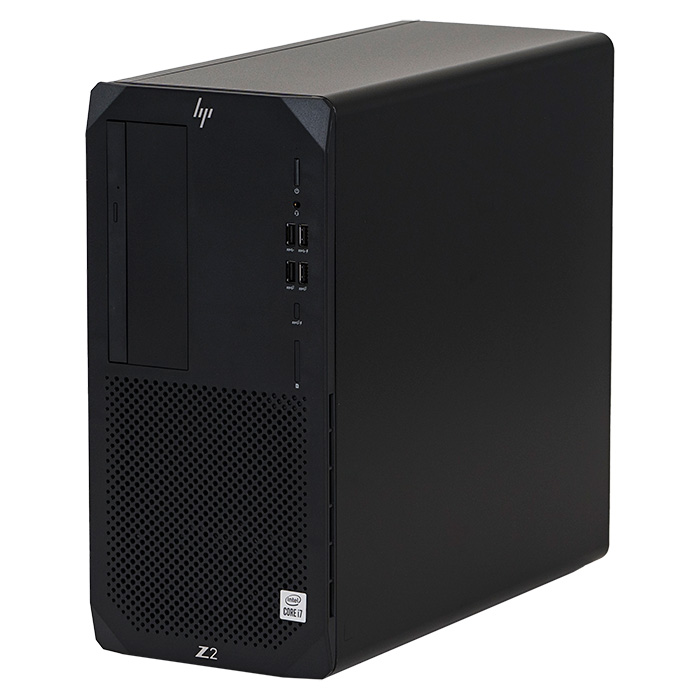

HP Z2 G9 Tower Workstation

Configure HP Z2 G9 Tower Workstation

  • Configure

    Processor

    The HP Z2 G9 Tower has one LGA1700 processor socket supporting one 12th Generation Intel Core i7/i9 processor. Multiple processor cores allow you to run multiple applications simultaneously and boost clock speeds up to 5.2 GHz increasing performance in both single-threaded and multithreaded applications.

    Memory

    The HP Z2 G9 Tower has 4 DIMM Slots supporting up to 128GB DDR5 4400 MT/s Memory. Choose more memory to improve overall system performance.

    Storage | M.2

    The HP Z2 G9 Tower has 3 slots for M.2 NVMe SSDs. We recommend a NVMe SSD as the primary boot drive for the operating system and applications. A 2nd NVMe SSD can be added as a dedicated work drive for active projects files - CAD files, footage, photos, etc. NVMe M.2 SSDs perform at ~2,500MB/s.

    Storage | SATA

    The HP Z2 G9 Tower has 2 bays for a SATA drives. You can select a SATA drive for storage, backup, or project files. SATA Solid-State Drives perform at 500MB/s. SATA Hard Drives perform at 250MB/s.

    • Solid-State Drives

      Hard Drives

    • Solid-State Drives

      Hard Drives

    Optical

    The HP Z2 G9 Tower has one 9.5mm and one 5.25-inch optical bay. You can arrange any combination of optical drives, hard drives, or solid-state drives.

    • Optical

      Solid-State Drive

      Hard Drive

    Graphics

    The HP Z2 G9 Tower supports one PCIe 4.0 x16 graphics card. We stock NVIDIA Quadro and GeForce series graphics cards. Contact us for a custom quote if your application requires the AMD Radeon Pro or FirePro series graphics card.

    NVIDIA Quadro Pascal (2017-2020 Production)

    NVIDIA Quadro Turing (2018-2021 Production)

    NVIDIA Quadro Ampere (2021 Production)

    NVIDIA GeForce Ampere (2020-2021 Production)

    Network

    The HP Z2 G9 Tower comes standard with one Gigabit (1Gb) Ethernet port. Add additional 1GbE ports if you connect to multiple networks. Add 10GbE if your location has a 10Gb network.

    Gigabit Network

    10 Gigabit Network

    Wireless

    The Z2 G9 Tower comes standard with one Gigabit (1Gb) Ethernet port. Add Wi-Fi if you plan connect to Wireless internet.

    Operating System

    Choose the operating system that best fits your application requirements.

    Windows

    Linux Distributions

    Keyboard

    Choose your keyboard.

    Mouse

    Choose your mouse.

    3Dconnexion

    $50 shipping per unit · Free local pickup

    Allow 1 to 2 weeks for preparation.
    See Policies & FAQ for details.

    $ 1,750
  • Manufacture Year(s)2022 - current
    Form FactorMinitower
    Processor SocketLGA 1700
    Processor Family12th Generation Intel Core i9 processor
    12th Generation Intel Core i7 processor
    12th Generation Intel Core i5 processor
    Memory4 DIMM Slots
    up to 128 GB DDR5-4400 non-ECC RAM
    up to 128 GB DDR5-4400 ECC RAM
    Transfer rates up to 4400 MT/s.
    Drive Bays2x 3.5-inch (Internal)
    1x 5.25-inch (External)
    3x M.2 2280 PCIe x4 (for NVMe SSD)
    AudioRealtek ALC3205-VA2-CG
    2.0W internal mono speaker
    NetworkingIntegrated Intel I219-LM GbE
    Expansion Slots1 PCIe 4 x16 (x16 connector) for GPU
    1 PCIe 3 x4 (x16 connector)
    1 PCIe 3 x4 (x4 connector)
    1 PCIe 3 x1 (x4 connector)
    1 M.2 2230 PCIe 3 X1 for WLAN
    3 M.2 2280 slots for storage
    Ports and ConnectorsFront: 4 SuperSpeed USB Type-A 10Gbps (1 charging); 1 universal audio jack
    Rear: 1 audio-in; 1 audio-out; 1 RJ-45; 2 DisplayPort 1.4; 2 SuperSpeed USB Type-A 10Gbps; 1 SuperSpeed USB Type-A 5Gbps; 3 USB Type-A 480Mbps
    Power500 W internal power supply
    Dimensions14 x 6.7 x 15.2 in
    35.6 x 16.9 x 38.5 cm
    WeightStarting at 16 lb / 7.2 kg
    (Exact weight depends on configuration.)
