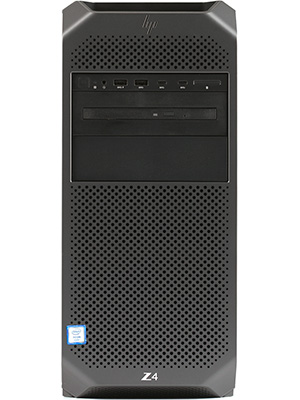

Configure Your HP Z4 G5 Workstation

Name: HP Z4 G5
Brand: HP
Rating: 4.7 (92 reviews)
Author: X.solutions

Configure
Processor
Memory
Storage | M.2
Storage | SATA
Optical
Graphics
AJA | Blackmagic
Network
WiFi
OS
KB / Mouse
3Dconnexion
Rack Kit
Processor
The HP Z4 G5 supports one Intel Xeon W-series 4th Generation (LGA4677) processor for the ultimate performance.
Hyper-Threading support allows two threads to run simultaneously on each core - recognizing up to 48 total cores, 24 real and 24 virtual. Turbo Boost support automatically boosts the processor speed based on workload - so if an application is only using one of the cores it will automatically increase the speed of the core in use and turn off the unused cores.
Intel Xeon w3-2423 | 6 cores, 2.1 GHz base frequency $ more info
4.2 GHz max turbo frequency, 15 MB cache
Intel Xeon w3-2425 | 6 cores, 3.0 GHz base frequency $ more info
4.4 GHz max turbo frequency, 15 MB cache
Intel Xeon w3-2435 | 8 cores, 3.1 GHz base frequency $ more info
4.5 GHz max turbo frequency, 22.5 MB cache
Intel Xeon w5-2445 | 10 cores, 3.1 GHz base frequency $ more info
4.6 GHz max turbo frequency, 26.25 MB cache
Intel Xeon w5-2455X | 12 cores, 3.2 GHz base frequency $ more info
4.6 GHz max turbo frequency, 30 MB cache
Intel Xeon w5-2465X | 16 cores, 3.1 GHz base frequency $ more info
4.7 GHz max turbo frequency, 33.75 MB cache
Intel Xeon w7-2475X | 20 cores, 2.6 GHz base frequency $ more info
4.8 GHz max turbo frequency, 37.5 MB cache
Intel Xeon w7-2495X | 24 cores, 2.5 GHz base frequency $ more info
4.8 GHz max turbo frequency, 45 MB cache
Memory
The HP Z4 G5 has 8 DIMM Slots supporting up to 512GB of DDR5 4800MT/s ECC Memory. Intel Xeon W-series 4th generation processors have 4 memory channels.
Xeon w3 processors support 4400MT/s memory
Xeon w5 and w7 processors support 4800MT/s memory
We stock new condition, reputable brand memory including SK Hynix, Micron, and Samsung.
16GB of 4800MT/s DDR5 ECC Memory $
16GB of 4400MT/s DDR5 ECC Memory $
32GB (2x 16GB) of 4800MT/s DDR5 ECC Memory $
32GB (2x 16GB) of 4400MT/s DDR5 ECC Memory $
64GB (4x 16GB) of 4800MT/s DDR5 ECC Memory $
64GB (4x 16GB) of 4400MT/s DDR5 ECC Memory $
128GB (4x 32GB) of 4800MT/s DDR5 ECC Memory $
128GB (4x 32GB) of 4400MT/s DDR5 ECC Memory $
256GB (8x 32GB) of 4800MT/s DDR5 ECC Memory $
256GB (8x 32GB) of 4400MT/s DDR5 ECC Memory $
384GB (8x 48GB) of 4800MT/s DDR5 ECC Memory $
384GB (8x 48GB) of 4400MT/s DDR5 ECC Memory $
512GB (8x 64GB) of 4800MT/s DDR5 ECC Memory $
512GB (8x 64GB) of 4400MT/s DDR5 ECC Memory $
768GB (8x 96GB) of 4800MT/s DDR5 ECC Memory $
768GB (8x 96GB) of 4400MT/s DDR5 ECC Memory $
Storage | M.2 Onboard
The HP Z4 G5 has two onboard PCIe 4.0 M.2 slots supporting NVMe SSDs.
PCIe 4.0 NVMe SSDs have read/write speeds averaging 6,000MB/s.
We stock new condition, reputable brand, and latest model drives.
512GB to 2TB drives are Samsung. 4TB and 8TB drives are Sabrent or Corsair.
Drive 1
Drive 2
None $
500GB NVMe M.2 PCIe 4.0 Solid-State Drive $
1TB NVMe M.2 PCIe 4.0 Solid-State Drive $
2TB NVMe M.2 PCIe 4.0 Solid-State Drive $
4TB NVMe M.2 PCIe 4.0 Solid-State Drive $
8TB NVMe M.2 PCIe 4.0 Solid-State Drive $
None $
500GB NVMe M.2 PCIe 4.0 Solid-State Drive $
1TB NVMe M.2 PCIe 4.0 Solid-State Drive $
2TB NVMe M.2 PCIe 4.0 Solid-State Drive $
4TB NVMe M.2 PCIe 4.0 Solid-State Drive $
8TB NVMe M.2 PCIe 4.0 Solid-State Drive $
Storage | M.2 Add
An additional M.2 NVMe PCIe 4.0 SSD can be added to the HP Z4 G5 in a front accessible hot-swappable 5.25-inch flexbay.
None $
500GB NVMe M.2 PCIe 4.0 Solid-State Drive $
1TB NVMe M.2 PCIe 4.0 Solid-State Drive $
2TB NVMe M.2 PCIe 4.0 Solid-State Drive $
4TB NVMe M.2 PCIe 4.0 Solid-State Drive $
8TB NVMe M.2 PCIe 4.0 Solid-State Drive $
Storage | SATA
The HP Z4 G5 has two 3.5-inch SATA3 (6GB/s) drive bays. Arrange any combination of hard drives or solid-state drives.
SATA SSDs have read/write speeds averaging 500MB/s.
SATA Hard Drives have read/write speeds averaging 250MB/s.
We stock new condition, reputable brand, and latest model drives.
Hard drives are Western Digital or Seagate. Solid-state drives are Samsung.
Drive 1
Drive 2
None $
Solid-State Drive
500GB SATA 2.5" Solid-State Drive $
1TB SATA 2.5" Solid-State Drive $
2TB SATA 2.5" Solid-State Drive $
4TB SATA 2.5" Solid-State Drive $
8TB SATA 2.5" Solid-State Drive $
Hard Drive
1TB 7200RPM SATA 3.5" Hard Drive $
2TB 7200RPM SATA 3.5" Hard Drive $
4TB 7200RPM SATA 3.5" Hard Drive $
8TB 7200RPM SATA 3.5" Hard Drive $
12TB 7200RPM SATA 3.5" Hard Drive $
14TB 7200RPM SATA 3.5" Hard Drive $
16TB 7200RPM SATA 3.5" Hard Drive $
18TB 7200RPM SATA 3.5" Hard Drive $
20TB 7200RPM SATA 3.5" Hard Drive $
22TB 7200RPM SATA 3.5" Hard Drive $
24TB 7200RPM SATA 3.5" Hard Drive $
None $
Solid-State Drive
500GB SATA 2.5" Solid-State Drive $
1TB SATA 2.5" Solid-State Drive $
2TB SATA 2.5" Solid-State Drive $
4TB SATA 2.5" Solid-State Drive $
8TB SATA 2.5" Solid-State Drive $
Hard Drive
1TB 7200RPM SATA 3.5" Hard Drive $
2TB 7200RPM SATA 3.5" Hard Drive $
4TB 7200RPM SATA 3.5" Hard Drive $
8TB 7200RPM SATA 3.5" Hard Drive $
12TB 7200RPM SATA 3.5" Hard Drive $
14TB 7200RPM SATA 3.5" Hard Drive $
16TB 7200RPM SATA 3.5" Hard Drive $
18TB 7200RPM SATA 3.5" Hard Drive $
20TB 7200RPM SATA 3.5" Hard Drive $
22TB 7200RPM SATA 3.5" Hard Drive $
24TB 7200RPM SATA 3.5" Hard Drive $
Optical
The HP Z4 G5 has two external 5.25-inch drive/peripheral bays. A 9.5mm slim SATA optical drive can be added.
None $
9.5mm DVD Writer Optical Drive $
9.5mm Blu-Ray Writer Optical Drive $
Graphics
The HP Z4 G5 has two PCIe 5.0 x16 slots supporting up to two dual-width, full-height graphics cards.
We stock NVIDIA Quadro professional-series and NVIDIA GeForce consumer-series graphics cards. If your application requires an AMD Radeon PRO graphics card, contact us for a custom quote.
First
Second
None $
NVIDIA Quadro Turing (2018 Release)
NVIDIA Quadro T400 4GB $ more info
NVIDIA Quadro T600 4GB $ more info
NVIDIA Quadro T1000 4GB $ more info
NVIDIA Quadro T1000 8GB $ more info
NVIDIA Quadro Ampere (2021 Release)
NVIDIA Quadro RTX A2000 6GB $ more info
NVIDIA Quadro RTX A2000 12GB $ more info
NVIDIA Quadro RTX A4000 16GB $ more info
NVIDIA Quadro RTX A4500 20GB $ more info
NVIDIA Quadro RTX A5000 24GB $ more info
NVIDIA Quadro RTX A5500 24GB $ more info
NVIDIA Quadro RTX A6000 48GB $ more info
NVIDIA Quadro Ada Lovelace (2023 Release)
NVIDIA Quadro RTX 2000 Ada 16GB $ more info
NVIDIA Quadro RTX 4000 Ada 20GB $ more info
NVIDIA Quadro RTX 4500 Ada 24GB $ more info
NVIDIA Quadro RTX 5000 Ada 32GB $ more info
NVIDIA Quadro RTX 6000 Ada 48GB $ more info
NVIDIA GeForce Ada Lovelace (2022 Release)
NVIDIA GeForce RTX 4060 8GB $ more info
NVIDIA GeForce RTX 4060 Ti 8GB $ more info
NVIDIA GeForce RTX 4070 Super 12GB $ more info
NVIDIA GeForce RTX 4070 Ti 12GB $ more info
NVIDIA GeForce RTX 4080 Super 16GB $ more info
None $
NVIDIA Quadro Turing (2018 Release)
NVIDIA Quadro T400 4GB $ more info
NVIDIA Quadro T600 4GB $ more info
NVIDIA Quadro T1000 4GB $ more info
NVIDIA Quadro T1000 8GB $ more info
NVIDIA Quadro Ampere (2021 Release)
NVIDIA Quadro RTX A2000 6GB $ more info
NVIDIA Quadro RTX A2000 12GB $ more info
NVIDIA Quadro RTX A4000 16GB $ more info
NVIDIA Quadro RTX A4500 20GB $ more info
NVIDIA Quadro RTX A5000 24GB $ more info
NVIDIA Quadro RTX A5500 24GB $ more info
NVIDIA Quadro Ada Lovelace (2023 Release)
NVIDIA Quadro RTX 2000 Ada 16GB $ more info
NVIDIA Quadro RTX 4000 Ada 20GB $ more info
NVIDIA Quadro RTX 4500 Ada 24GB $ more info
NVIDIA Quadro RTX 5000 Ada 32GB $ more info
NVIDIA Quadro RTX 6000 Ada 48GB $ more info
AJA | Blackmagic Design
Optional AJA connectivity cards and Blackmagic Design capture cards for professional video production applications. Contact us if the model you require is not listed.
None $
AJA Kona 4 | PCIe Connectivity Card $ more info
AJA Kona 5 | PCIe Connectivity Card $ more info
Blackmagic Design Intensity Pro 4K $ more info
Blackmagic Design Decklink SDI 4K - Capture & Playback Card $ more info
Blackmagic Design DeckLink 4K Studio - Capture & Playback Card $ more info
Blackmagic Design DeckLink 4K Extreme 12G - Capture & Playback Card $ more info
Blackmagic Design Decklink 8K Pro - 8K Capture & Playback Card $ more info
Network
The HP Z4 G5 has one onboard 1Gb Ethernet port. Add additional network adapters if you have a 10Gb network at your location or connect to multiple networks.
None $
1GbE Network
HP Z Single-Port 1GbE Fiber Network Flex IO Card $ more info
Intel i210-T1 | Single-Port | 1Gb Ethernet Network Adapter $
Intel i350-T2 | Dual-Port | 1Gb Ethernet Network Adapter $
Intel i350-T4 | Quad-Port | 1Gb Ethernet Network Adapter $
10GbE Network
HP Z Single-Port 10GbE RJ45 Network Flex IO Card $ more info
Intel X710-DA2 | Dual-Port | SFP+ | 10GbE Network Adapter $ more info
Intel X550-T2 | Dual-Port | RJ45 | 10GbE Network Adapter $ more info
Wireless
Optional WiFi network connection with an external antenna for extended range.
Intel AX210 WiFi 6E PCIe Adapter +$75
Operating System
Choose the operating system that best meets your application requirements. Windows 11 Professional for Workstations is installed by default. We also offer the most popular Linux distributions. If you would like dual-boot or multiple partitions, contact us for a custom quote.
Operating System
None $
Windows 10 Professional 64-bit for Workstations $
Windows 11 Professional 64-bit for Workstations $
Ubuntu 24.04 LTS $
CentOS Stream 9 64-bit $ more info
CentOS / Rocky Linux for Autodesk Flame $ more info
Red Hat Enterprise Linux (RHEL) Workstation $ more info
Load Operating System
Do Not Load Operating System $
Load Operating System on M.2 Onboard Drive 1 $
Load Operating System on M.2 Add Drive 1 $
Load Operating System on SATA Drive 1 $
Keyboard
Choose your ideal keyboard.
None $
HP USB Keyboard $
HP Wireless Keyboard $
Mouse
Choose your ideal mouse.
None $
HP USB Optical Mouse $
HP Wireless Optical Mouse $
3Dconnexion
Optional 3Dconnexion mice for professional CAD applications.
None $
3Dconnexion USB CADMouse $ more info
3Dconnexion USB SpaceMouse Compact $ more info
3Dconnexion USB SpaceMouse Pro $ more info
3Dconnexion USB SpaceMouse Enterprise $ more info
3Dconnexion Wireless CADMouse Pro $ more info
3Dconnexion Wireless SpaceMouse $ more info
3Dconnexion Wireless SpaceMouse Pro $ more info
Rack Mount Kit
Optional rail kit if you plan to rackmount your workstation.
HP Z2/Z4/Z6 Depth Adjustable Fixed Rail Rack Kit +$250 more info
Condition more info
New $
Talk to a Specialist
(310) 916-4444
sales@x.solutions
Ships from Los Angeles, CA
Specifications
Save Configuration
Want to save this unique configuration or share it with someone? Simply click the save button and we'll provide you with a link.
Email
Create Quote
Add your configuration(s) to your cart if you would like to create a personalized quote.
Configuration Help
Have more questions about your configuration? Need professional assistance? We are here to help!
Click the Contact Us button to fill out a contact form with your current configuration or call us at (310) 916-4444.
$75 shipping per unit · Free local pickup
2 Year Warranty · Condition: New
Lead time: 1 to 2 weeks
See Policies & FAQ for details.
Quantity
$ 2,500

Manufacture Year(s)	2023
Form Factor	Mid tower
Processor Family	4th Generation Intel Xeon W-series Processors Single Socket LGA-4677
Processors	Intel Xeon W7-2400 Processors Intel Xeon W5-2400 Processors Intel Xeon W3-2400 Processors Up to 24 cores, up to 4.18Hz
Chipset	Intel Alder Lake S PCH W790
Memory	8 DIMM Slots 4 Memory Channels Up to 512GB DDR5 4800MT/s Registered ECC Memory
Storage	Up to 7 total drives 2 M.2 NVMe PCIe Gen 4 slots onboard 1 M.2 NVMe PCIe Gen 4 front-accessible, hot-swappable flexbay (optional) 2 3.5-inch internal SATA drive bays 2 5.25-inch external SATA optical/peripheral bays
Network	1 Onboard 1Gb Ethernet LAN port (Intel 1GbE I219) Optional: Intel AX210 802.11AC WiFi & Bluetooth 5
Expansion Slots	1 PCIe Gen 5 x16 slot 2 PCIe Gen 4 x16 slots 2 PCIe Gen 4 x4 slots Supports 2 full-height, double-width GPUs
Ports and Connectors	Front 4 USB 3.2 Gen 1 Type-A 1 headphone/microphone combo SD card reader (optional) Rear 6 USB 3.2 Gen 1 Type-A 1 RJ45 1Gb Ethernet 1 audio-in/out
Power	525 watt 80+ gold internal power supply, 90% efficiency at 50% load 775 watt 80+ gold internal power supply, 90% efficiency at 50% load (default) 1125 watt 80+ gold internal power supply, 90% efficiency at 50% load Appropriate power supply is installed based on configuration.
Dimensions	Height: 15.2" (386mm) Width: 6.7" (169mm) Depth: 17.5" (445mm)
Weight	Typical configuration: 27.8lbs / 12.6kg
Manufacturer Product Page	https://www.hp.com/us-en/workstations/z4.html

Documentation
Data Sheet View | Download
Quickspecs View | Download

Data Sheet	View \| Download
Quickspecs	View \| Download

Configure Your HP Z4 G5 Workstation

Configure

Processor

Memory

Storage | M.2 Onboard

Storage | M.2 Add

Storage | SATA

Solid-State Drive

Hard Drive

Solid-State Drive

Hard Drive

Optical

Graphics

NVIDIA Quadro Turing (2018 Release)

NVIDIA Quadro Ampere (2021 Release)

NVIDIA Quadro Ada Lovelace (2023 Release)

NVIDIA GeForce Ada Lovelace (2022 Release)

NVIDIA Quadro Turing (2018 Release)

NVIDIA Quadro Ampere (2021 Release)

NVIDIA Quadro Ada Lovelace (2023 Release)

AJA | Blackmagic Design

Network

1GbE Network

10GbE Network

Wireless

Operating System

Operating System

Load Operating System

Keyboard

Mouse

3Dconnexion

Rack Mount Kit

Condition more info

Talk to a Specialist

Specifications

Save Configuration

Create Quote

Configuration Help

Documentation
