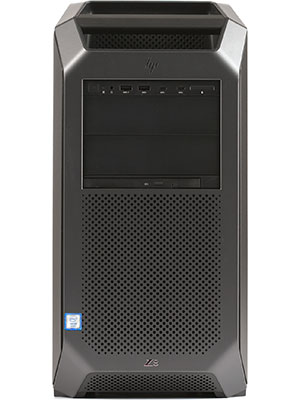

HP Z8 G5 Fury Workstation

Configure Your HP Z8 G5 Fury Workstation

  • Configure

    Processor

    The HP Z8 G5 Fury supports one Intel Xeon W-series 4th Generation (LGA4677) processor for the ultimate performance.

    Hyper-Threading support allows two threads to run simultaneously on each core - recognizing up to 112 total cores, 56 real and 56 virtual. Turbo Boost support automatically boosts the processor speed based on workload - so if an application is only using one of the cores it will automatically increase the speed of the core in use and turn off the unused cores.

    Memory

    The HP Z8 G5 Fury has 16 DIMM Slots supporting up to 2TB of DDR5 4800MT/s ECC Memory. Intel Xeon W-series 4th generation processors have 8 memory channels.

    We stock new condition, reputable brand memory including SK Hynix, Micron, and Samsung.

    Storage | M.2 Onboard

    The HP Z8 G5 Fury has four onboard PCIe 4.0 M.2 slots supporting NVMe SSDs.

    PCIe 4.0 NVMe SSDs have read/write speeds averaging 6,000MB/s.

    We stock new condition, reputable brand, and latest model drives.
    512GB to 2TB drives are Samsung. 4TB and 8TB drives are Sabrent or Corsair.

    Storage | M.2 Add

    Additional M.2 NVMe PCIe 4.0 SSDs can be added to the HP Z8 G5 Fury via:

    • One HP Dual Pro PCIe Gen 4 x8 internal adapter; two drives per adapter
    • One HP Front-Accessible Hot-Swappable external flexbay; two drives per flexbay

    Contact us after placing your order if you have a preference for the drives to be installed internally or externally.

    Storage | SATA

    The HP Z8 G5 Fury has four 3.5-inch SATA3 (6GB/s) drive bays. Arrange any combination of hard drives or solid-state drives.

    SATA SSDs have read/write speeds averaging 500MB/s.
    SATA Hard Drives have read/write speeds averaging 250MB/s.

    We stock new condition, reputable brand, and latest model drives.
    Hard drives are Western Digital or Seagate. Solid-state drives are Samsung.

    • Solid-State Drive

      Hard Drive

    • Solid-State Drive

      Hard Drive

    • Solid-State Drive

      Hard Drive

    • Solid-State Drive

      Hard Drive

    Optical

    The HP Z8 G5 Fury has one 9.5mm slim SATA optical bay.

    Graphics

    The HP Z8 G5 Fury has four PCIe 4.0 x16 slots supporting up to four dual-width, full-height graphics cards.

    We stock NVIDIA Quadro professional-series and NVIDIA GeForce consumer-series graphics cards. If your application requires an AMD Radeon PRO graphics card, contact us for a custom quote.

    Thunderbolt

    Optional Thunderbolt 4 connectivity for high-performance external peripherals.

    AJA | Blackmagic Design

    Optional AJA connectivity cards and Blackmagic Design capture cards for professional video production applications. Contact us if the model you require is not listed.

    Network

    The HP Z8 G5 Fury has two onboard 1Gb RJ45 Ethernet ports. Add additional network adapters if you have a 10Gb network at your location or connect to multiple networks.

    1GbE Network

    10GbE Network

    Wireless

    Optional WiFi network connection with an external antenna for extended range.

    Operating System

    Choose the operating system that best meets your application requirements. Windows 11 Professional for Workstations is installed by default. We also offer the most popular Linux distributions. If you would like dual-boot or multiple partitions, contact us for a custom quote.

    Operating System

    Load Operating System

    Keyboard

    Choose your ideal keyboard.

    Mouse

    Choose your ideal mouse.

    3Dconnexion

    Optional 3Dconnexion mice for professional CAD applications.

    Rack Mount Kit

    Optional rail kit if you plan to rackmount your workstation.

    Power Supply

    The HP Z8 G5 Fury has two power supply bays supporting two HP Z8 G5 1125 watt internal power supply units (PSUs) in redundant or aggregate mode. We will enable the appropriate power supply mode in the system BIOS based on your configuration if the dual power supply option is selected.

    Single PSU (1125 watts) is recommended for most configurations and workloads.
    Dual PSUs in Redundant mode (1125 watts total) is recommended for systems running long workloads or stored in remote locations.
    Dual PSUs in Aggregate mode (2250 watts total) is recommended for systems with 2 Geforce GPUs or 3-4 Quadro GPUs.

    $75 shipping per unit · Free local pickup

    Lead time: 1 to 2 weeks
    See Policies & FAQ for details.

    $ 4,500
  • Manufacture Year(s)2023
    Form FactorMid tower
    Processor Family4th Generation Intel Xeon W-series Processors
    Single Socket LGA-4677
    ProcessorsIntel Xeon W9-3400 Processors
    Intel Xeon W7-3400 Processors
    Intel Xeon W5-3400 Processors
    Up to 56 cores, up to 4.8GHz
    ChipsetIntel Alder Lake S PCH W790
    Memory16 DIMM Slots
    8 Memory Channels
    Up to 2TB DDR5 4800MT/s Registered ECC Memory
    StorageUp to 13 total drives
    4 M.2 NVMe PCIe Gen 4 slots onboard
    2 M.2 NVMe PCIe Gen 4 front-accessible, hot-swappable flexbays (optional)
    4 3.5-inch internal SATA drive bays
    2 5.25-inch external SATA optical/peripheral bays
    1 9.5mm external SATA optical bay
    Network1 Onboard 1Gb Ethernet LAN port (Intel 1GbE I219-LM, vPro)
    1 Onboard 1Gb Ethernet LAN port (Intel 1GbE I210-AT, non-vPro)
    Optional: Intel AX210 802.11AC WiFi & Bluetooth 5
    Optional: HP Dual-Port 10GbE Network Adapter
    Expansion Slots2 PCIe Gen 5 x16
    2 PCIe Gen 4 x16
    1 PCIe Gen 3 x8
    2 PCIe Gen 4 x4
    1 PCIe Gen 5 x4
    Supports 4 full-height, double-width GPUs
    Ports and ConnectorsFront
    4 USB 3.2 Gen 1 Type-A
    1 headphone/microphone combo
    SD card reader (optional)

    Rear
    6 USB 3.2 Gen 1 Type-A
    2 RJ45 1Gb Ethernet
    1 audio-in/out
    PowerSingle 1125 watt internal power supply
    Dual 1125 watt internal power supply (1125 watt in redundant mode or 2250 watt in aggregate mode)
    DimensionsHeight: 17.5" (444mm)
    Width: 8.5" (216mm)
    Depth: 21.7" (551mm)
    WeightStarting at 49.6 lbs / 22.5 kg
