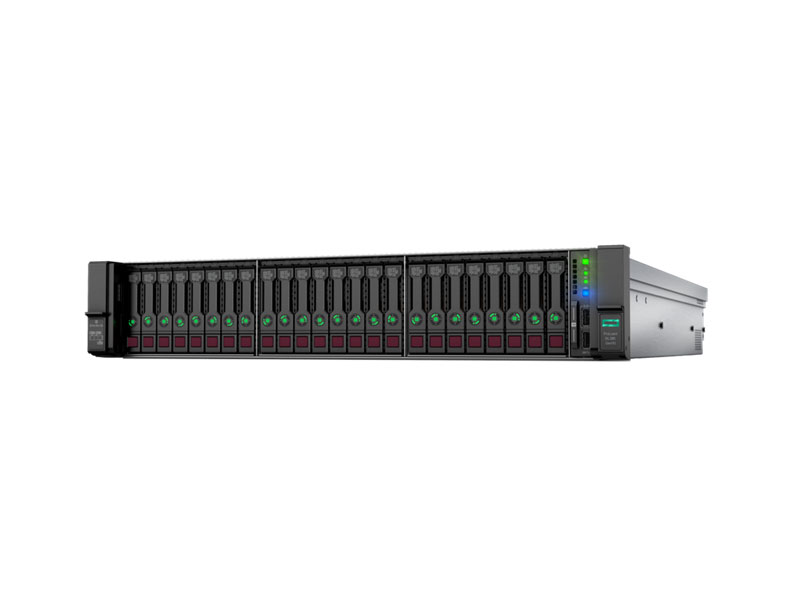

Configure Your HPE ProLiant DL385 G10 Server

Name: HPE ProLiant DL385 G10
Brand: HPE
Rating: 4.7 (92 reviews)
Author: X.solutions

Configure
Processor
The ProLiant DL385 G10 has two SP3 processor sockets supporting AMD EPYC processors. Select one or two matching processors.
8 cores, 3.2 GHz base frequency | AMD EPYC 7262
up to 3.4 GHz max boost frequency, 128 MB L3 cache more info
Single $
Dual $
12 cores, 2.9 GHz base frequency | AMD EPYC 7272
up to 3.2 GHz max boost frequency, 64 MB L3 cache more info
Single $
Dual $
16 cores, 3.0 GHz base frequency | AMD EPYC 7302
up to 3.3 GHz max boost frequency, 128 MB L3 cache more info
Single $
Dual $
24 cores, 2.8 GHz base frequency | AMD EPYC 7402
up to 3.35 GHz max boost frequency, 128 MB L3 cache more info
Single $
Dual $
32 cores, 2.5 GHz base frequency | AMD EPYC 7502
up to 3.35 GHz max boost Technology, 128 MB L3 cache more info
Single $
Dual $
48 cores, 2.3 GHz base frequency | AMD EPYC 7642
up to 3.3 GHz max boost Technology, 256 MB L3 cache more info
Single $
Dual $
64 cores, 2.25 GHz base frequency | AMD EPYC 7742
up to 3.4 GHz max boost Technology, 256 MB L3 cache more info
Single $
Dual $
Memory
The ProLiant DL385 G10 has 32x DDR4 ECC memory slots (16x per processor) supporting HPE DDR4 ECC 3200MHz memory. Select up to 16x modules of matching memory per processor. Note that the EPYC processors have 8 memory channels per processor, thus we recommend selecting 8 memory modules per processor to occupy all memory channels for optimal performance. If you have a high memory count, go with 16 memory modules to occupy all the memory slots. We recommend selecting memory in multiples of 8 - occupying 8 DIMM slots and leaving the other 8 DIMM slots available for future upgrade. HPE branded memory installed only.
× HPE 8GB 3200MHz DDR4 ECC Registered Memory $150 each
× HPE 16GB 3200MHz DDR4 ECC Registered Memory $200 each
× HPE 32GB 3200MHz DDR4 ECC Registered Memory $400 each
× HPE 64GB 3200MHz DDR4 ECC Registered Memory $800 each
× HPE 128GB 3200MHz DDR4 ECC Registered Memory $4,000 each
Storage Backplane
8x SFF 2.5-inch SAS/SATA drive bay backplane $
24x SFF 2.5-inch SAS/SATA drive bay backplane $
20x SFF 2.5-inch NVMe drive bay backplane $
8x LFF 3.5-inch SAS/SATA drive bay backplane $
12x LFF 3.5-inch SAS/SATA drive bay backplane $
Storage
Choose any combination of drives based on the storage form factor selected above. If you go above the maximum allowed drives, the configuration tool will notify you.
2.5-inch SAS Solid-State Drives
× HPE 400GB SAS 12Gb/s 2.5-inch SFF SSD - Write Intensive $400 each
× HPE 480GB SAS 12Gb/s 2.5-inch SFF SSD - Read Intensive $500 each
× HPE 800GB SAS 12Gb/s 2.5-inch SFF SSD - Write Intensive $600 each
× HPE 960GB SAS 12Gb/s 2.5-inch SFF SSD - Read Intensive $1,000 each
× HPE 1.6TB SAS 12Gb/s 2.5-inch SFF SSD - Write Intensive $1,000 each
× HPE 1.92TB SAS 12Gb/s 2.5-inch SFF SSD - Read Intensive $1,500 each
× HPE 3.2TB SAS 12Gb/s 2.5-inch SFF SSD - Mixed Use $1,500 each
× HPE 3.84TB SAS 12Gb/s 2.5-inch SFF SSD - Read Intensive $2,500 each
× HPE 6.4TB SAS 12Gb/s 2.5-inch SFF SSD - Mixed Use $2,500 each
× HPE 7.68TB SAS 12Gb/s 2.5-inch SFF SSD - Read Intensive $3,500 each
2.5-inch SATA Solid-State Drives
× HPE 240GB SATA 6Gb/s 2.5-inch SFF SSD - Read Intensive $250 each
× HPE 240GB SATA 6Gb/s 2.5-inch SFF SSD - Mixed Use $250 each
× HPE 480GB SATA 6Gb/s 2.5-inch SFF SSD - Mixed Use $350 each
× HPE 480GB SATA 6Gb/s 2.5-inch SFF SSD - Read Intensive $350 each
× HPE 1.92TB SATA 6Gb/s 2.5-inch SFF SSD - Mixed Use $1,300 each
× HPE 1.92TB SATA 6Gb/s 2.5-inch SFF SSD - Read Intensive $750 each
× HPE 3.84TB SATA 6Gb/s 2.5-inch SFF SSD - Read Intensive $1,000 each
× HPE 7.68TB SATA 6Gb/s 2.5-inch SFF SSD - Read Intensive $1,500 each
2.5-inch SAS Hard Drives
× HPE 300GB 10K SAS 12Gb/s 2.5-inch SFF HDD $150 each
× HPE 600GB 10K SAS 12Gb/s 2.5-inch SFF HDD $225 each
× HPE 900GB 10K SAS 12Gb/s 2.5-inch SFF HDD $250 each
× HPE 1.2TB 10K SAS 12Gb/s 2.5-inch SFF HDD $300 each
× HPE 1.8TB 10K SAS 12Gb/s 2.5-inch SFF HDD $350 each
× HPE 2.4TB 10K SAS 12Gb/s 2.5-inch SFF HDD $400 each
3.5-inch SAS Hard Drives
× HPE 1TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $150 each
× HPE 2TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $200 each
× HPE 4TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $250 each
× HPE 8TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $500 each
× HPE 10TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $600 each
× HPE 12TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $650 each
× HPE 14TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $1,100 each
× HPE 18TB 7.2K SAS 12Gb/s 3.5-inch LFF HDD $1,800 each
Storage Controller
HPE ProLiant Storage Controller Comparison
How to Select Your HPE Smart Array Controller
HPE Smart Array S100i SR Gen10 Controller $
Specs Overview

HPE Smart Array E208i-a SR Gen10 Controller $
Specs Overview

HPE Smart Array P408i-a SR Gen10 Controller $
Specs Overview

HPE Smart Array P816i-a SR Gen10 Controller $
Specs Overview

OS Boot Device
If you would like to reserve the front storage bays for active projects or storage databases, these are pre-configured RAID 1 (redundant) storage solutions dedicated as a OS boot device. The HPE NS204i-p NVMe PCIe3 boot device is recommended if you're seeking a dedicated high performance boot drive with redundancy. The USB microSD is a good solution if you're looking for a smaller dedicated redundant boot device and don’t want to occupy a PCIe slot.
None $
HPE 32GB microSD RAID 1 USB OS Boot Drive $ more info
HPE NS204i-p 480GB NVMe PCIe3 x8 RAID 1 OS Boot Device $ more info
Network
Servers come standard with one 1Gb Ethernet port. Additional network cards can be added for multiple network connections or 10Gb, 24Gb, or 100Gb networks. Daughter cards are embedded on the motherboard, not occupying a PCIe slot.
None $
Daughter Card
HPE Broadcom 57414 10GbE 2-port SFP+ Network Adapter $ more info
HPE Broadcom 57416 10GbE 2-port Base-T Network Adapter $ more info
PCIe Card
Intel i350-T2 1GbE 2-port RJ45 Network Adapter $
Intel i350-T4 1GbE 4-port RJ45 Network Adapter $
Intel X710-DA2 10GbE 2-port SFP+ Network Adapter $ more info
Intel X550-T2 10GbE 2-port RJ45 Network Adapter $ more info
HPE InfiniBand EDR 100Gb 2-port PCIe3 Network Adapter $ more info
Graphics
The ProLiant DL385 G10 has 2x PCIe 3.0 x16 slots supporting up to 2x double width graphics cards. The chassis comes with a rear VGA connection by default. If the server will be running GPU intensive applications, additional graphics accelerators can be added.
Quadro
× NVIDIA Quadro P620 2GB $300 each more info
× NVIDIA Quadro P1000 4GB $500 each more info
× NVIDIA Quadro P2200 5GB $700 each more info
× NVIDIA Quadro P4000 8GB $1,100 each more info
× NVIDIA Quadro P5000 16GB $1,850 each more info
× NVIDIA Quadro P6000 24GB $2,450 each more info
× NVIDIA Quadro GP100 16GB $2,450 each more info
× NVIDIA Quadro GV100 32GB $10,000 each more info
× NVIDIA Quadro T400 2GB $250 each more info
× NVIDIA Quadro T600 4GB $350 each more info
× NVIDIA Quadro T1000 4GB $500 each more info
× NVIDIA Quadro T1000 8GB $600 each more info
× NVIDIA Quadro RTX 4000 8GB $1,000 each more info
× NVIDIA Quadro RTX 5000 16GB $1,750 each more info
× NVIDIA Quadro RTX 6000 24GB $2,750 each more info
× NVIDIA Quadro RTX 8000 48GB $4,000 each more info
× NVIDIA Quadro RTX A4000 16GB $1,450 each more info
× NVIDIA Quadro RTX A4500 20GB $1,950 each more info
× NVIDIA Quadro RTX A5000 24GB $2,750 each more info
× NVIDIA Quadro RTX A5500 24GB $3,250 each more info
× NVIDIA Quadro RTX A6000 48GB $5,500 each more info
Tesla
× NVIDIA Tesla Kepler K80 24GB $3,750 each more info
× NVIDIA Tesla Pascal P100 12GB $6,000 each more info
× NVIDIA Tesla Pascal P100 16GB $6,000 each more info
× NVIDIA Tesla Volta V100 32GB $8,500 each more info
× NVIDIA A2 16GB Tensor Core GPU $3,000 each more info
× NVIDIA A16 4x 16GB VDI GPU $5,000 each more info
× NVIDIA A30 24GB Tensor Core GPU $7,500 each more info
× NVIDIA A40 48GB Data Center GPU $8,500 each more info
× NVIDIA A100 40GB Tensor Core GPU $14,000 each more info
× NVIDIA A100 80GB Tensor Core GPU $17,500 each more info
Power Supply
× HPE 500W Flex Slot Platinum Hot Plug Power Supply $200 each
× HPE 800W Flex Slot Platinum Hot Plug Power Supply $300 each
× HPE 1600W Flex Slot Platinum Hot Plug Power Supply $400 each
Operating System
None $
Windows Server 2022 Essentials $ more info
Windows Server 2022 Standard $ more info
Windows Server 2022 Datacenter $ more info
Ubuntu Server 22.04 LTS $
Red Hat Enterprise Linux Server $ more info
Red Hat Enterprise Linux for Virtual Datacenters $ more info
VMware vSphere $ more info
Condition more info
Refurbished $
New $
Talk to a Specialist
(310) 916-4444
sales@x.solutions
Ships from Los Angeles, CA
Specifications
Save Configuration
Want to save this unique configuration or share it with someone? Simply click the save button and we'll provide you with a link.
Email
Create Quote
Add your configuration(s) to your cart if you would like to create a personalized quote.
Configuration Help
Have more questions about your configuration? Need professional assistance? We are here to help!
Click the Contact Us button to fill out a contact form with your current configuration or call us at (310) 916-4444.
$75 shipping per unit · Free local pickup
2 Year Warranty · Condition: New
Lead time: 1 to 2 weeks
See Policies & FAQ for details.
Quantity
$ 4,000

Processor	AMD EPYC 7000 Series
Form Factor	2U rackmount
Chassis Types	8 SFF with optional Universal Media Bay, and optional SFF or NVMe drive bay options 24 SFF bay with additional 6SFF rear drive bay option to total 30 SFF drives 8 LFF with Universal Media Bay 12 LFF with optional 4 LFF mid-plane and optional 3LFF + 2 SFF rear drive bay to total 19 LFF drives + 2 SFF drives
On System Management Chipset	HPE iLO 5 ASIC
Memory	DIMM Slots Available: 32 16 DIMM slots per processor, 8 channels per processor, 2 DIMMs per channel Maximum capacity (LRDIMM): 4.0 TB (32 x 128GB) Maximum capacity (RDIMM): 2.0 TB (32 x 64GB)
Expansion Slots	Slot 1: PCIe 3.0 x8 - Full-height, full-length slot - Proc 1 Slot 2: PCIe 3.0 x16 - Full-height, full-length slot - Proc 1 Slot 3: PCIe 3.0 x8 - Full-height, half-length slot - Proc 1 Slot 1: PCIe 3.0 x8 - Full-height, full-length slot - Proc 2 Slot 2: PCIe 3.0 x16 - Full-height, full-length slot - Proc 2 Slot 3: PCIe 3.0 x8 - Full-height, half-length slot - Proc 2 Slot 1: PCIe 3.0 x8 - Full-height, full-length slot - Proc 2 Slot 2: PCIe 3.0 x8 - Full-height, full-length slot - Proc 2
Power Supply	HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
Operating Systems	Windows Server 2019 VMware ESXi 6.5 U3 VMware ESXi 6.7 U3 Red Hat Enterprise Linux (RHEL) 7.6 SUSE Linux Enterprise Server (SLES) 12 SP4 SUSE Linux Enterprise Server (SLES) 15 SP1
Graphics	Integrated Video Standard - Video modes up to 1920 x 1200@60Hz (32 bpp) - 16MB Video Memory HPE iLO 5 on system management memory - 32 MB Flash - 4 Gbit DDR 3 with ECC protection
Storage Controllers	Software RAID - HPE Smart Array S100i SR Gen10 SW RAID Essential RAID Controller - HPE Smart Array E208i-a SR Gen10 Controller - HPE Smart Array E208i-p SR Gen10 Controller - HPE Smart Array E208e-p SR Gen10 Controller Performance RAID Controller - HPE Smart Array P408i-a SR Gen10 Controller - HPE Smart Array P408i-p SR Gen10 Controller - HPE Smart Array P408e-p SR Gen10 Controller - HPE Smart Array P816i-a SR Gen10 Controller

Documentation
HPE ProLiant DL385 Gen10 Server - Data Sheet View | Download
HPE ProLiant DL385 Gen10 Server - QuickSpecs View | Download
HPE ProLiant DL385 Gen10 Server - Document List View

HPE ProLiant DL385 Gen10 Server - Data Sheet	View \| Download
HPE ProLiant DL385 Gen10 Server - QuickSpecs	View \| Download
HPE ProLiant DL385 Gen10 Server - Document List	View
