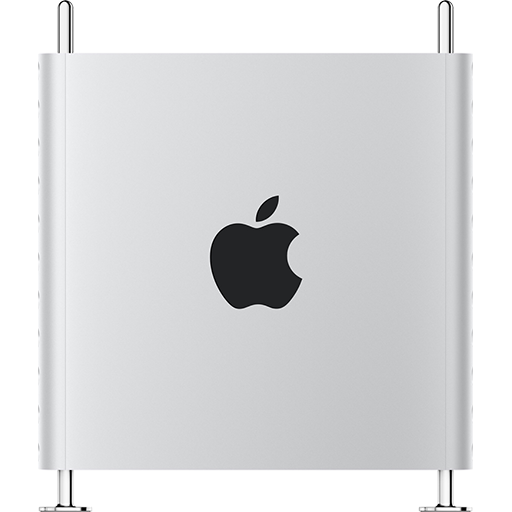

Configure Your Apple Mac Pro Tower Model 7,1 - Year 2019

Name: Apple Mac Pro Tower - Year 2019
Brand: Apple
Rating: 4.7 (92 reviews)
Author: X.solutions

Configure
Processor
Memory
Graphics
Storage
Afterburner
Port Expansion
Wifi / BT
OS
KB / Mouse
Processor
Mac Pro is powered by Intel Xeon W processors, which feature Turbo Boost, Hyper-Threading, up to 66.5MB of shared L3 cache on a single chip, AVX-512 vector instructions, and 64 PCI Express lanes for massive bandwidth. It’s also configurable up to 28 processing cores, allowing it to support up to 1.5TB of memory at 2933MHz. And thanks to the power and thermal design of Mac Pro, Intel Xeon W processors can run fully unconstrained, delivering maximum performance.
Selecting a processor with the right number of cores for your needs largely depends on the software you’ll be using. For instance, single-thread applications operate more efficiently with higher clock speeds, while software that uses multithreading will run best on a processor with more cores.
3.5GHz 8-core Intel Xeon W processor, Turbo Boost up to 4.0GHz $ more info
8 cores, 16 threads | 3.5GHz base, 4.0GHz max turbo
16.5MB cache | up to 1TB of 2666MHz memory
3.3GHz 12-core Intel Xeon W processor, Turbo Boost up to 4.4GHz $ more info
12 cores, 24 threads | 3.3GHz base, 4.4GHz max turbo
19.25MB cache | up to 1TB of 2933MHz memory
3.2GHz 16-core Intel Xeon W processor, Turbo Boost up to 4.4GHz $ more info
16 cores, 32 threads | 3.2GHz base, 4.4GHz max turbo
22MB cache | up to 1TB of 2933MHz memory
2.7GHz 24-core Intel Xeon W processor, Turbo Boost up to 4.4GHz $ more info
24 cores, 48 threads | 2.7GHz base, 4.4GHz max turbo
33MB cache | up to 1.5TB of 2933MHz memory
2.5GHz 28-core Intel Xeon W processor, Turbo Boost up to 4.4GHz $ more info
28 cores, 56 threads | 2.5GHz base, 4.4GHz max turbo
38.5MB cache | up to 1.5TB of 2933MHz memory
Memory
Mac Pro supports up to 768GB of quad-channel 2666MHz DDR4 ECC memory for the 8-core Intel Xeon processor, up to 768GB of six-channel 2933MHz DDR4 ECC memory for the 12-core and 16-core Intel Xeon processors, and up to 1.5TB of six-channel 2933MHz DDR4 ECC memory for the 24-core and 28-core Intel Xeon processors.
With more memory in your Mac Pro, you can run more apps simultaneously and work with larger data sets with a higher rate of performance. Your Mac Pro is also user accessible with 12 physical DIMM slots, so in the future you can upgrade to more memory that is compatible with your processor.
The 8GB, 16GB, and 32GB DDR4 modules are R-DIMMs; the 64GB and 128GB DDR4 modules are LR-DIMMs. Mac Pro supports R-DIMM and LR-DIMM memory modules, but the two DIMM types cannot be used in the same system.
32GB (4x 8GB) of 2666MT/s DDR4 ECC memory $
48GB (6x 8GB) of 2666MT/s DDR4 ECC memory $
96GB (6x 16GB) of 2666MT/s DDR4 ECC memory $
192GB (6x 32GB) of 2666MT/s DDR4 ECC memory $
384GB (6x 64GB) of 2666MT/s DDR4 ECC memory $
768GB (12x 64GB) of 2666MT/s DDR4 ECC memory $
768GB (6x 128GB) of 2666MT/s DDR4 ECC memory $
32GB (4x 8GB) of 2933MT/s DDR4 ECC memory $
48GB (6x 8GB) of 2933MT/s DDR4 ECC memory $
96GB (6x 16GB) of 2933MT/s DDR4 ECC memory $
192GB (6x 32GB) of 2933MT/s DDR4 ECC memory $
384GB (6x 64GB) of 2933MT/s DDR4 ECC memory $
768GB (12x 64GB) of 2933MT/s DDR4 ECC memory $
768GB (6x 128GB) of 2933MT/s DDR4 ECC memory $ more info
1.5TB (12x 128GB) of 2933MT/s DDR4 ECC memory $ more info
Graphics
Mac Pro features a modular graphics expansion architecture called the Mac Pro Expansion Module, or MPX Module, that delivers more power and bandwidth and integrates Thunderbolt throughout the system. You can choose one or two MPX Modules to configure the graphics in your Mac Pro, or add MPX Modules later to change or upgrade your Mac Pro graphics capabilities.
Primary
Secondary
Radeon Pro 580X with 8GB of GDDR5 memory $ more info
Radeon Pro W5500X with 8GB of GDDR6 memory $ more info
Radeon Pro W5700X with 16GB of GDDR6 memory $ more info
Radeon Pro Vega II with 32GB of HBM2 memory $ more info
Radeon Pro Vega II Duo with 2x32GB of HBM2 memory $ more info
Gen 2 Addition
Radeon Pro W6800X with 32GB of GDDR6 memory $
Radeon Pro W6900X with 32GB of GDDR6 memory $
Radeon Pro W6800X Duo with 64GB of GDDR6 memory $
None $
Radeon Pro 580X with 8GB of GDDR5 memory $ more info
Radeon Pro W5500X with 8GB of GDDR6 memory $ more info
Radeon Pro W5700X with 16GB of GDDR6 memory $ more info
Radeon Pro Vega II with 32GB of HBM2 memory $ more info
Radeon Pro Vega II Duo with 2x32GB of HBM2 memory $ more info
Gen 2 Addition
Radeon Pro W6800X with 32GB of GDDR6 memory $
Radeon Pro W6900X with 32GB of GDDR6 memory $
Radeon Pro W6800X Duo with 64GB of GDDR6 memory $
Storage (Apple)
Mac Pro can be configured with up to 8TB of fast NVMe-based SSD storage. SSD storage delivers significantly improved performance compared with a traditional hard drive — speed you will notice when you start up your Mac Pro, launch an application, open a big project, or tackle data-intensive tasks. SSD storage has no moving parts, so it operates silently. And Mac Pro storage is powered by the Apple T2 Security Chip and is always encrypted.
256GB SSD storage $
1TB SSD storage $
2TB SSD storage $
4TB SSD storage $
8TB SSD storage $
Storage (M.2 NVMe)
Mac Pro requires the macOS to be installed on the original Apple storage (above). The Apple storage cannot be swapped due to the Apple T2 security chip. The Mac Pro has spare PCIe slots that can be utilized for up to 8x NVMe M.2 SSDs (up to 4x drives on one PCIe slot using a Quad NVMe M.2 Mount). The additional storage can be dedicated for storage or work - cache, footage, sessions, project files, etc. Drives can be partitioned independently, or in RAID 0 (performance) or RAID 1 (redundancy) upon request. For 3D Modeling or 4K video editing, we recommend a single NVMe SSD. For 6K or 8K video editing, we recommend a NVMe RAID0 with blazing read/write speeds.
1x NVMe SSD: 2000MB/s Write | 2500MB/s Read
2x NVMe SSD RAID0: 3500MB/s Write | 5000MB/s Read
3x NVMe SSD RAID0: 4000MB/s Write | 6000MB/s Read
4x NVMe SSD RAID0: 5000MB/s Write | 7000MB/s Read (up to 9000MB/s Read depending on file size and format)
Drive 1
Drive 2
Drive 3
Drive 4
None $
250GB NVMe M.2 SSD $
500GB NVMe M.2 SSD $
1TB NVMe M.2 SSD $
2TB NVMe M.2 SSD $
4TB NVMe M.2 SSD $
8TB NVMe M.2 SSD $
None $
250GB NVMe M.2 SSD $
500GB NVMe M.2 SSD $
1TB NVMe M.2 SSD $
2TB NVMe M.2 SSD $
4TB NVMe M.2 SSD $
8TB NVMe M.2 SSD $
None $
250GB NVMe M.2 SSD $
500GB NVMe M.2 SSD $
1TB NVMe M.2 SSD $
2TB NVMe M.2 SSD $
4TB NVMe M.2 SSD $
8TB NVMe M.2 SSD $
None $
250GB NVMe M.2 SSD $
500GB NVMe M.2 SSD $
1TB NVMe M.2 SSD $
2TB NVMe M.2 SSD $
4TB NVMe M.2 SSD $
8TB NVMe M.2 SSD $
Storage (SATA)
Mac Pro does not have bays for traditional 2.5-inch or 3.5-inch drives. The Sonnet Fusion Flex J3i Mounting System adds three SATA drive bays - supporting any combination of 2.5-inch solid-state drives or 3.5-inch hard drives. Increase storage capacity by adding more drives inside your Mac Pro. Note: The Sonnet Fusion Flex J3i must be checked (added) to enable the drives to be selected.
M.2 NVMe SSD: ~ 2500MB/s (section above)
2.5-inch SATA SSD: ~ 500MB/s (ideal for storage/backup if you want to eliminate the use mechanical drives)
3.5-inch SATA HDD: ~ 200MB/s (ideal for infrequently accessed files; longterm storage)
Sonnet Fusion Flex J3i +$250
Drive 1
Drive 2
Drive 3
None $
Solid-State Drives
250GB SATA 2.5" SSD $
500GB SATA 2.5" SSD $
1TB SATA 2.5" SSD $
2TB SATA 2.5" SSD $
4TB SATA 2.5" SSD $
8TB SATA 2.5" SSD $
Hard Drives
1TB 7200RPM SATA 3.5" Hard Drive $
2TB 7200RPM SATA 3.5" Hard Drive $
4TB 7200RPM SATA 3.5" Hard Drive $
6TB 7200RPM SATA 3.5" Hard Drive $
8TB 7200RPM SATA 3.5" Hard Drive $
10TB 7200RPM SATA 3.5" Hard Drive $
12TB 7200RPM SATA 3.5" Hard Drive $
14TB 7200RPM SATA 3.5" Hard Drive $
16TB 7200RPM SATA 3.5" Hard Drive $
18TB 7200RPM SATA 3.5" Hard Drive $
20TB 7200RPM SATA 3.5" Hard Drive $
22TB 7200RPM SATA 3.5" Hard Drive $
24TB 7200RPM SATA 3.5" Hard Drive $
None $
Solid-State Drives
250GB SATA 2.5" SSD $
500GB SATA 2.5" SSD $
1TB SATA 2.5" SSD $
2TB SATA 2.5" SSD $
4TB SATA 2.5" SSD $
8TB SATA 2.5" SSD $
Hard Drives
1TB 7200RPM SATA 3.5" Hard Drive $
2TB 7200RPM SATA 3.5" Hard Drive $
4TB 7200RPM SATA 3.5" Hard Drive $
6TB 7200RPM SATA 3.5" Hard Drive $
8TB 7200RPM SATA 3.5" Hard Drive $
10TB 7200RPM SATA 3.5" Hard Drive $
12TB 7200RPM SATA 3.5" Hard Drive $
14TB 7200RPM SATA 3.5" Hard Drive $
16TB 7200RPM SATA 3.5" Hard Drive $
18TB 7200RPM SATA 3.5" Hard Drive $
20TB 7200RPM SATA 3.5" Hard Drive $
22TB 7200RPM SATA 3.5" Hard Drive $
24TB 7200RPM SATA 3.5" Hard Drive $
None $
Solid-State Drives
250GB SATA 2.5" SSD $
500GB SATA 2.5" SSD $
1TB SATA 2.5" SSD $
2TB SATA 2.5" SSD $
4TB SATA 2.5" SSD $
8TB SATA 2.5" SSD $
Afterburner
Apple PCIe accelerator card that offloads the decoding of ProRes and ProRes RAW video codecs in Final Cut Pro X, QuickTime Player X, and supported third-party applications. Occupies one PCIe x16 slot.
Apple Afterburner card +$1,250
Port Expansion
Mac Pro comes standard with:
Four Thunderbolt 3 ports - Support for Thunderbolt 3 (up to 40Gb/s), USB-C (up to 10Gb/s), and DisplayPort
Two USB 3 ports - Support for USB-A (up to 5Gb/s)
Two 10Gb Ethernet ports - Support for 10Gb Ethernet performance over copper cabling and Nbase-T industry standard: 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet link speeds using RJ-45 connectors
Wireless and Bluetooth
Mac Pro comes standard with:
Wi-Fi 802.11ac Wi-Fi wireless networking
Bluetooth 5.0 wireless technology
Operating System
Choose the operating system that best fits your software requirements.
macOS 10.15 - Catalina $
macOS 11 - Big Sur $
macOS 12 - Monterey $
macOS 13 - Ventura $
macOS 14 - Sonoma $
Keyboard
Choose your keyboard.
None $
Apple Wireless Magic Keyboard with Numeric Keypad - Space Grey $
Mouse and Magic Trackpad
Choose your mouse or trackpad.
None $
Apple Wireless Magic Mouse 2 - Space Grey $
Apple Wireless Magic Trackpad 2 - Space Grey $
Talk to a Specialist
(310) 916-4444
sales@x.solutions
Ships from Los Angeles, CA
Specifications
Form Factor
Tower $
Rack $
Condition more info
Refurbished (Grade A) $
Save Configuration
Want to save this unique configuration or share it with someone? Simply click the save button and we'll provide you with a link.
Email
Create Quote
Add your configuration(s) to your cart if you would like to create a personalized quote.
Configuration Help
Have more questions about your configuration? Need professional assistance? We are here to help!
Click the Contact Us button to fill out a contact form with your current configuration or call us at (310) 916-4444.
$75 shipping per unit · Free local pickup
Lead time: 1 to 2 weeks
See Policies & FAQ for details.
Quantity
$ 2,750

Model Identifier	7,1
Chassis Type	Newly designed modular tower
Processor Class	Intel Xeon W processor (Cascade Lake-X)
Processor Socket	FCLGA3647
Processor Models	Intel® Xeon® W-3223 (3.5 GHz base frequency, up to 4.0 GHz with Intel® Turbo Boost Technology, 16.5 MB cache, 8 cores) Intel® Xeon® W-3225 (3.7 GHz base frequency, up to 4.3 GHz with Intel® Turbo Boost Technology, 16.5 MB cache, 8 cores) Intel® Xeon® W-3235 (3.3 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 19.25 MB cache, 12 cores) Intel® Xeon® W-3245 (3.2 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 22 MB cache, 16 cores) Intel® Xeon® W-3265 (2.7 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 33 MB cache, 24 cores) Intel® Xeon® W-3275 (2.5 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 38.5 MB cache, 28 cores)
Memory Slots	12 (two slots per channel)
Memory Type	DDR4 2666MHZ or 2933MHz ECC depending on processor model
Maximum Memory	1TB or 2TB depending on processor model
Graphics	Supports four double width, full length graphics cards AMD Radeon Pro 580X AMD Radeon Pro Vega II AMD Radeon Pro Vega II Duo
Drive Bays	Two onboard M.2 slots for NVMe drives Up to 4TB of SSD storage 256GB SSD (One 256GB module) 512GB SSD (Two 256GB modules) 1TB SSD (Two 512GB modules) 2TB SSD (Two 1TB modules) 4TB SSD (Two 2TB modules) Up to 2.6GB/s sequential read and 2.7GB/s sequential write performance Storage encrypted by the Apple T2 Security Chip
PCIe Expansion	8x PCIe slots
Expension Ports	I/O card installed in the half-length x4 PCI Express slot with: Two USB 3 ports Support for USB-A (up to 5Gb/s) Two Thunderbolt 3 ports Support for Thunderbolt 3 (up to 40Gb/s) Support for USB-C (up to 10Gb/s) Support for DisplayPort
Network	Two 10Gb Ethernet ports Support for 10Gb Ethernet performance over copper cabling Support for Nbase-T industry standard: 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet link speeds using RJ-45 connectors
Wireless and Bluetooth	Wi-Fi: 802.11ac Wi-Fi wireless networking, IEEE 802.11a/b/g/n compatible Bluetooth: Bluetooth 5.0 wireless technology
Power Supply	1280W at 108–125V or 220–240V 1180W at 100–107V
Operating System	macOS Catalina 10.15
Dimensions	Height: 20.8 inches (52.9 cm) Width: 8.58 inches (21.8 cm) Depth: 17.7 inches (45.0 cm)
