Single AMD EPYC 9004 Tower Workstation

Configure Your Single AMD EPYC 9004 Tower Workstation

  • Configure

    Default Specifications

    Motherboard

    Gigabyte MZ33-AR0
    Supermicro H13SSL-N
    AMD EPYC 9004 Single Processor Gen5 Motherboard

    CPU Cooler

    Supermicro 4U Active CPU Cooler - SNK-P0084AP4

    Power Supply

    Corsair RM850x 850W 80+ Gold Fully Modular
    Corsair RM1000x 1000W 80+ Gold Fully Modular
    Corsair RM1200x 1200W 80+ Gold Fully Modular
    Corsair AX1600i 1600W 80+ Titanium Fully Modular
    Selection based on configuration

    Case

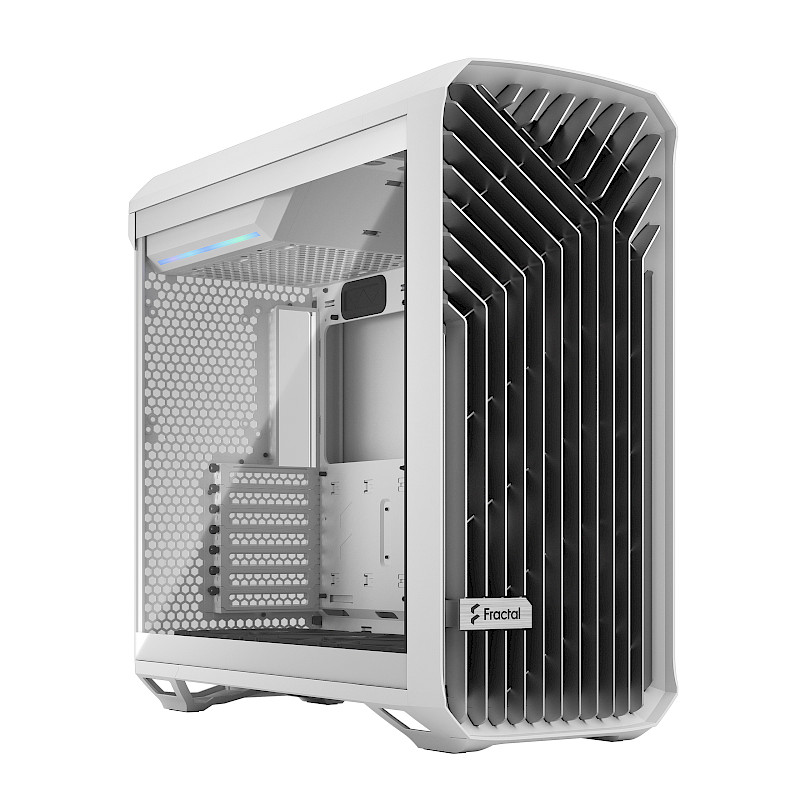

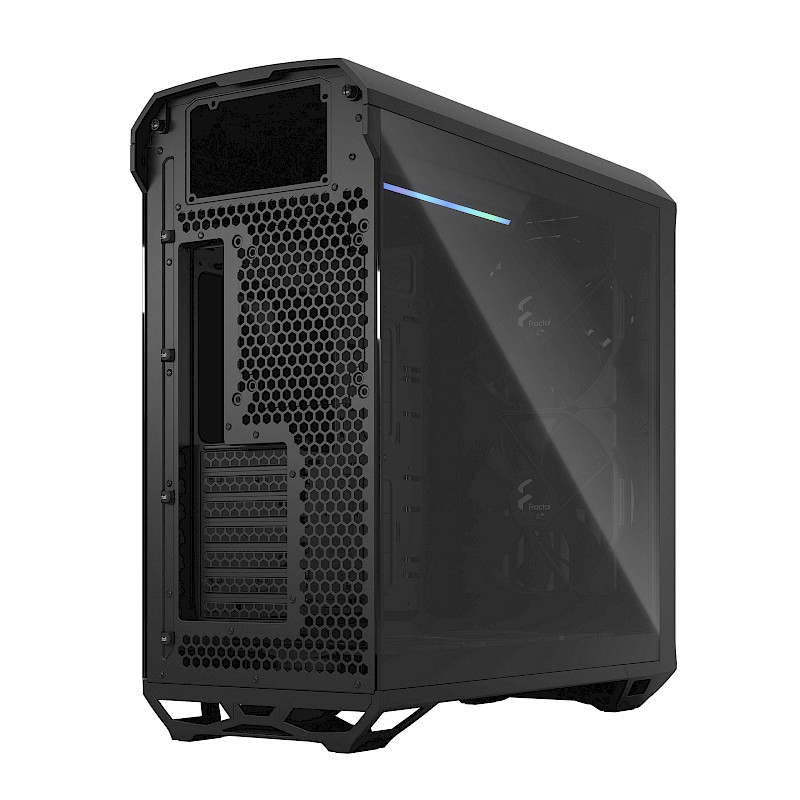

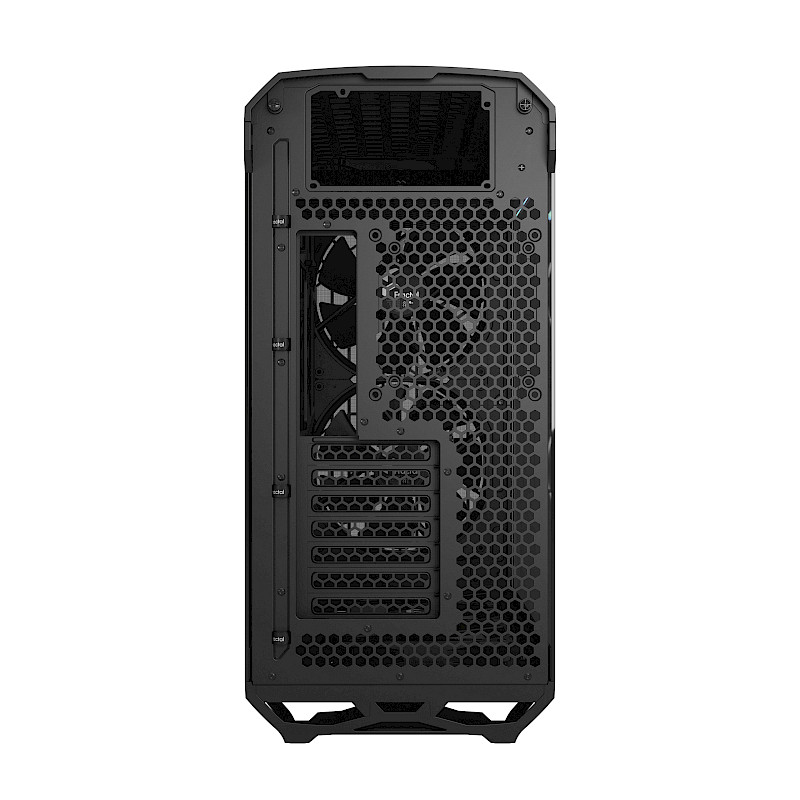

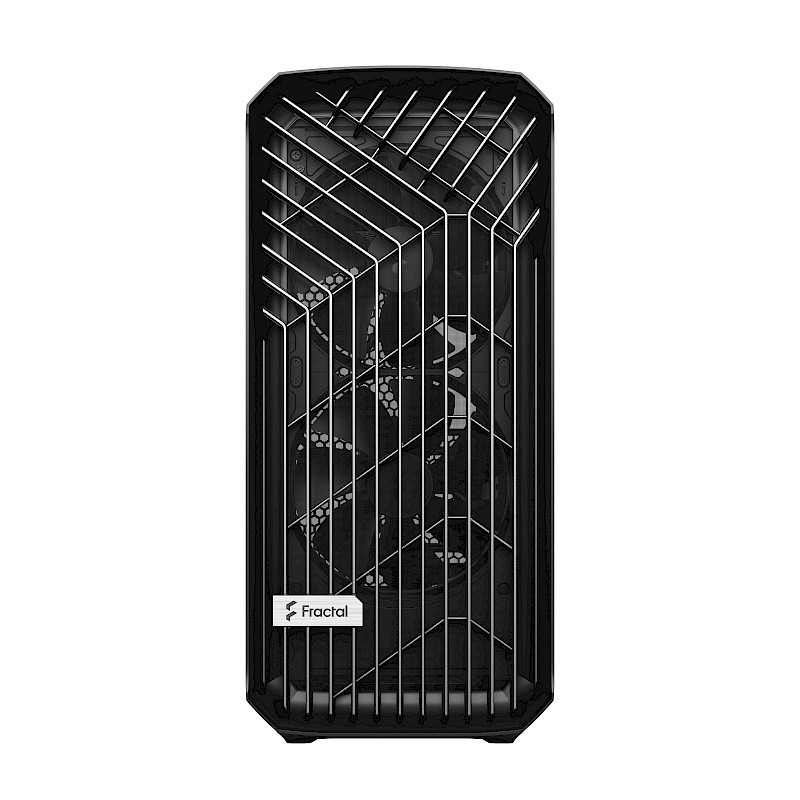

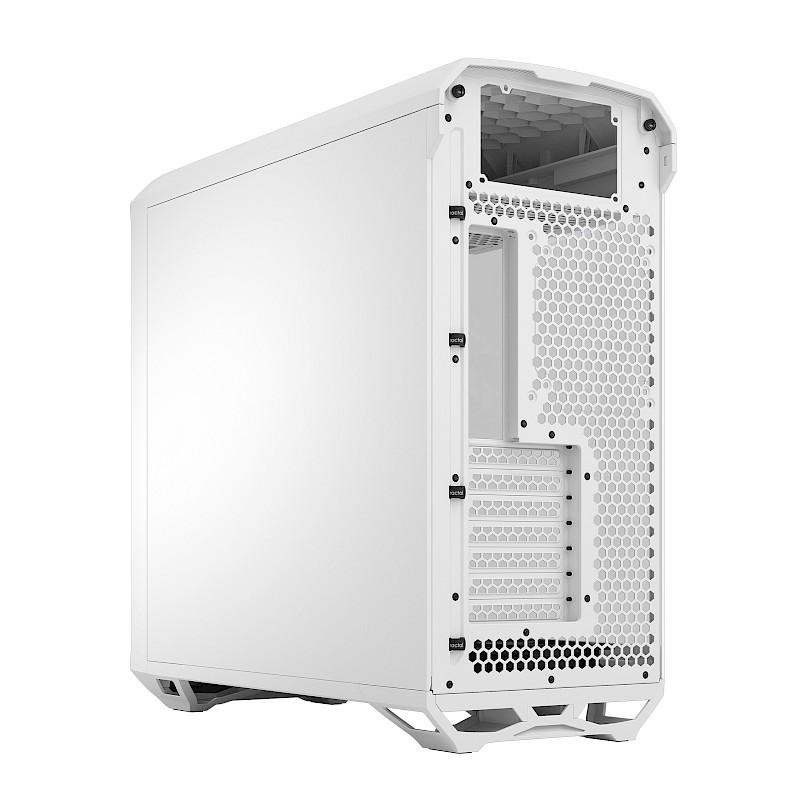

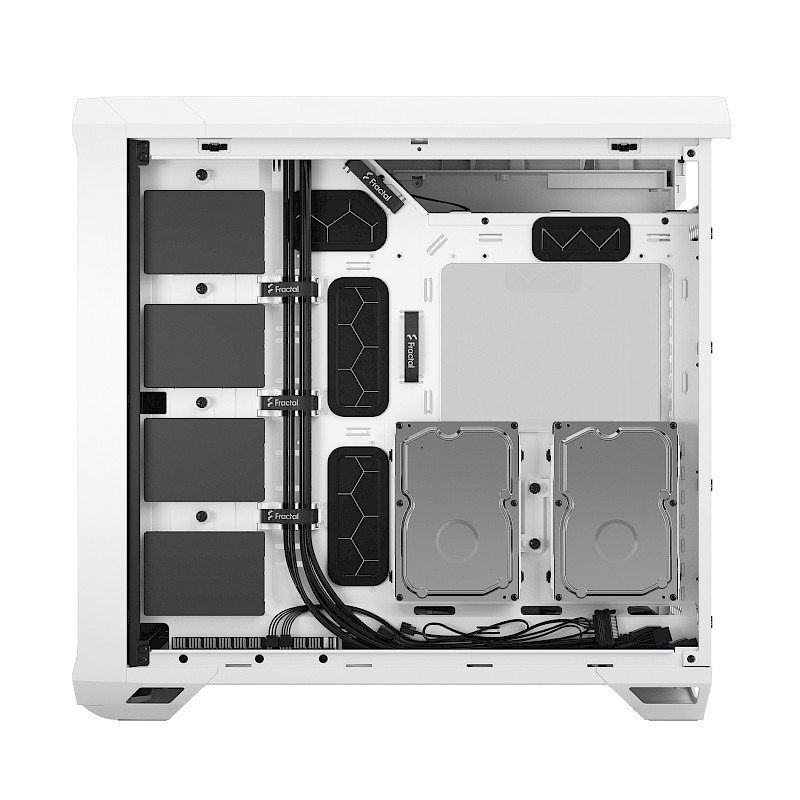

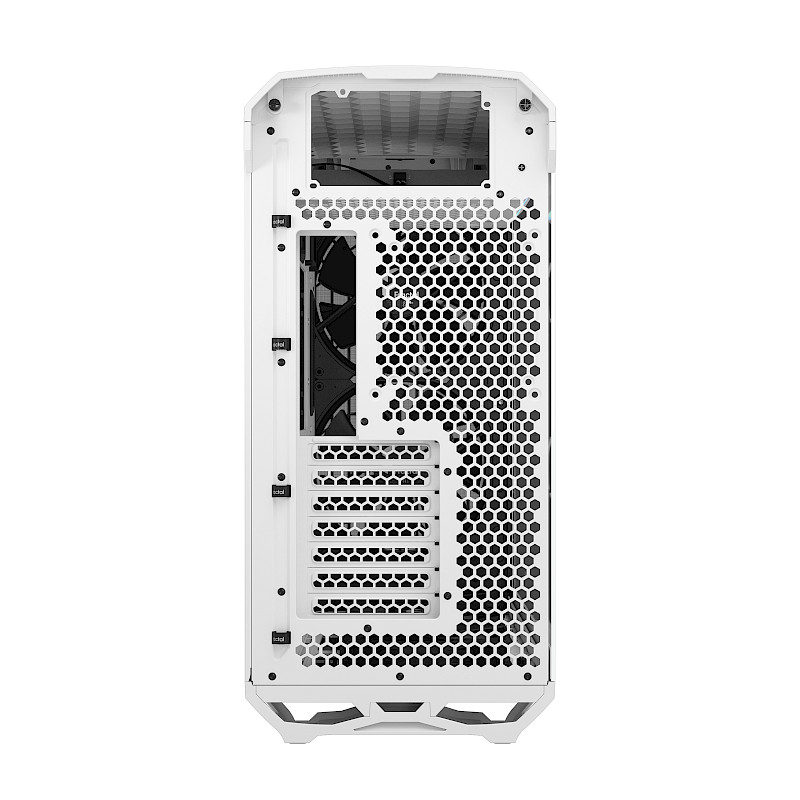

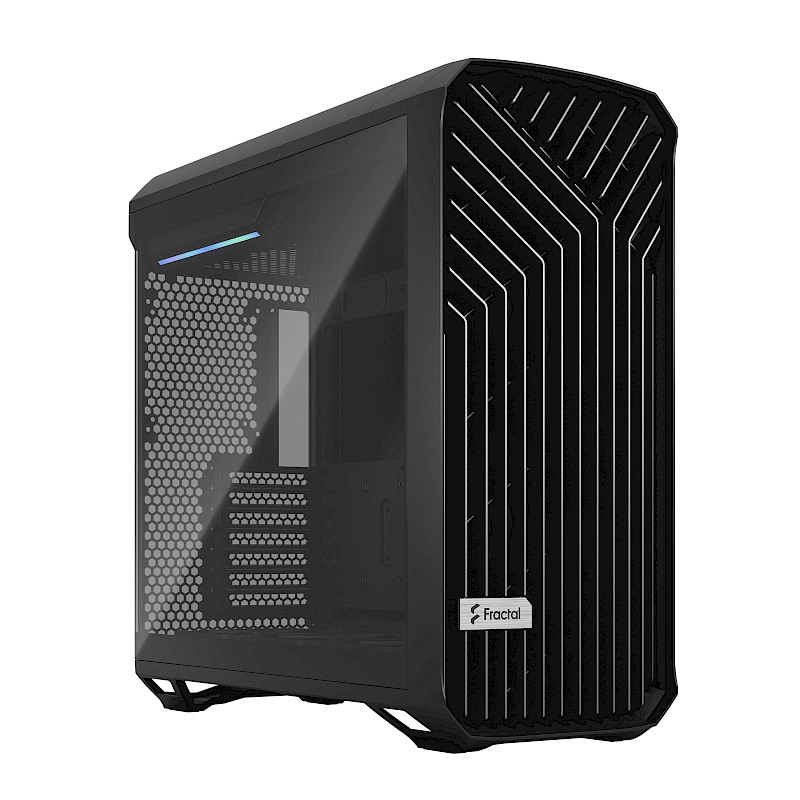

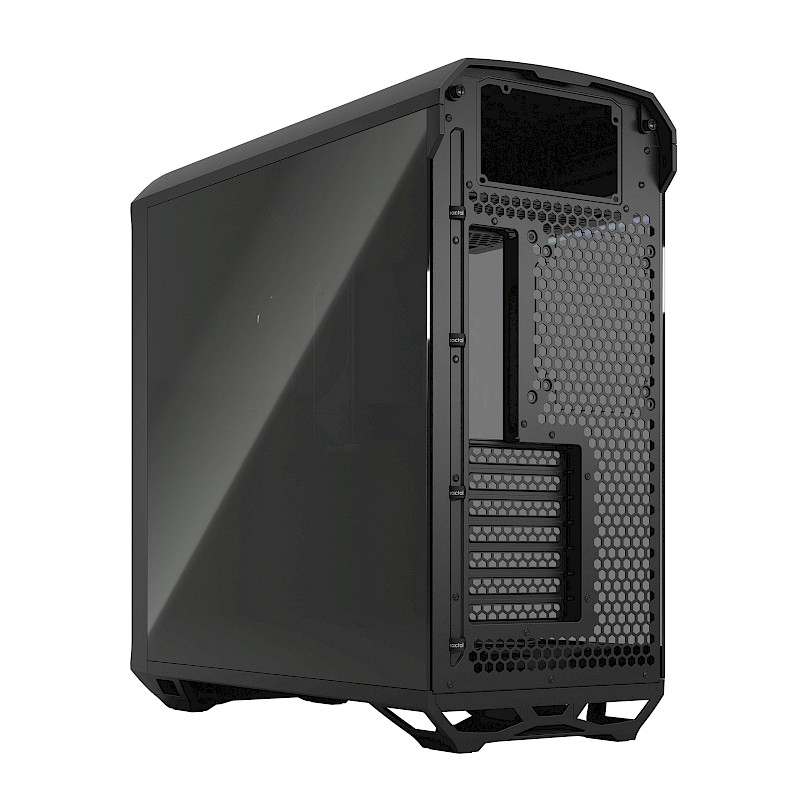

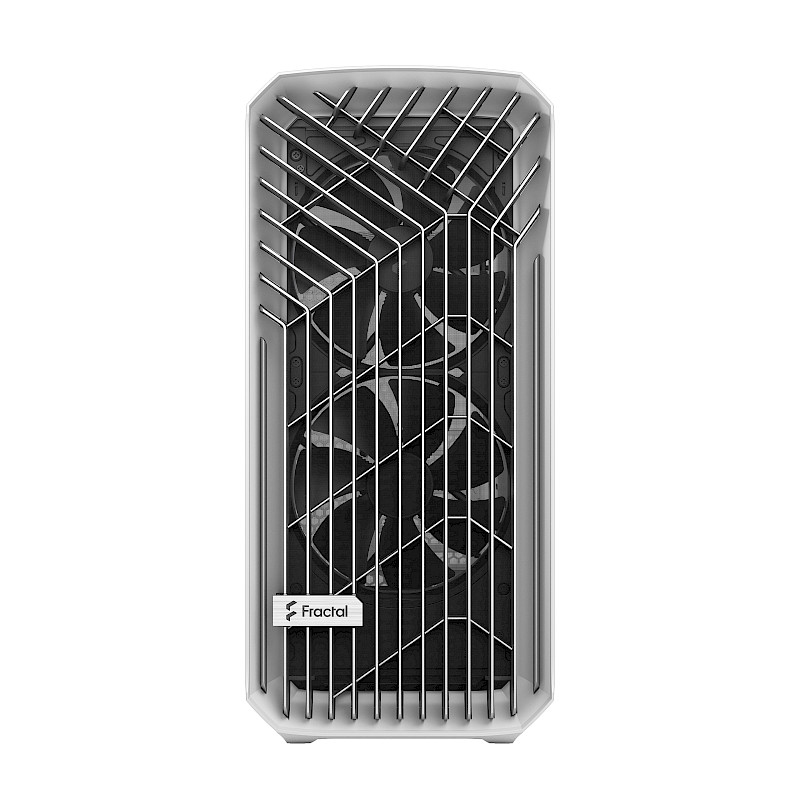

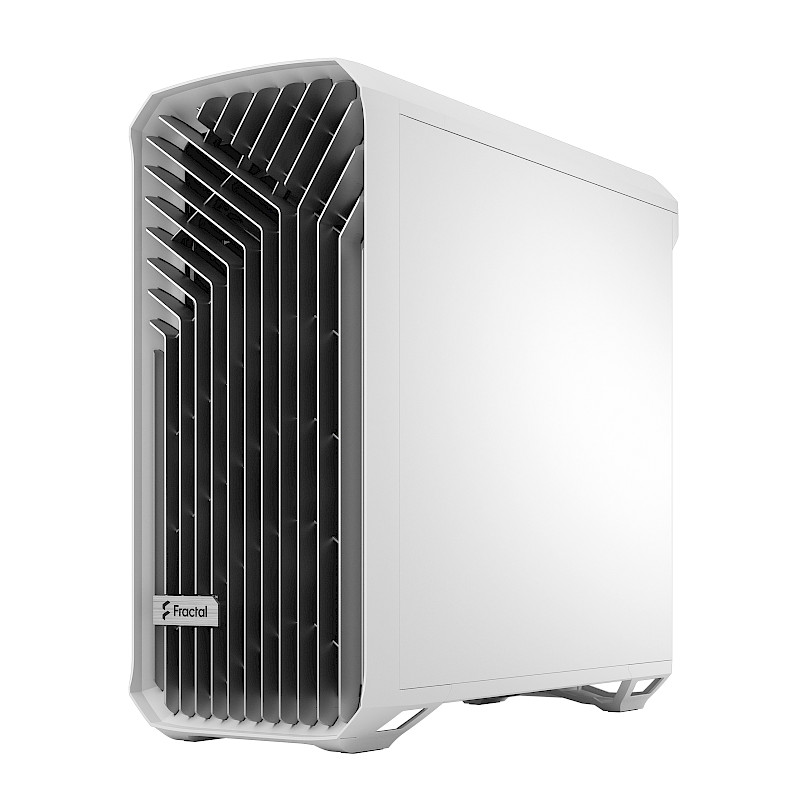

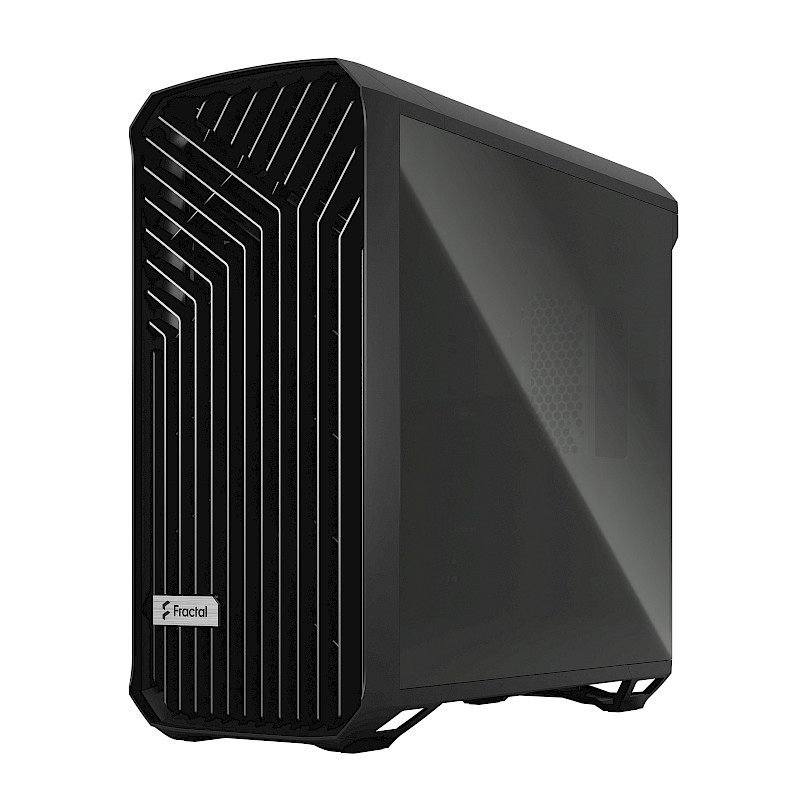

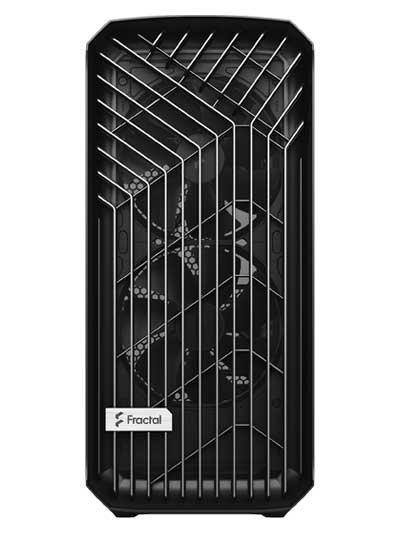

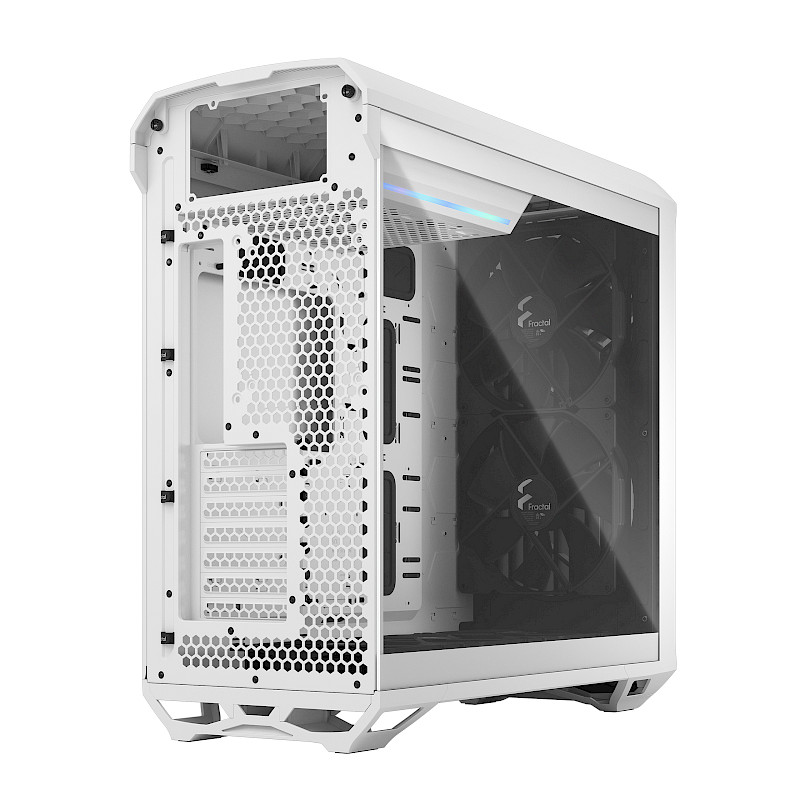

    The Fractal Design Torrent is a modern mid-tower case with open front grill and visible internal layout. Includes 3 140mm front fans, 2 180mm bottom fans, and 1 140mm rear fan for excellent cooling. Dedicated 2 3.5-inch and 4 2.5inch drive bays for large storage capacity. Available in black, gray, and white with a tempered glass side panel.

    Processor

    The Supermicro H13SSL-N motherboard has a single AMD SP5 socket supporting one AMD EPYC 9004 Series processor.

    Hyper-Threading support allows two threads to run simultaneously on each core - recognizing up to 192 total cores, 96 real and 96 virtual. 'Turbo Boost' support automatically boosts the processor speed based on workload - so if an application is only using one of the cores it will automatically increase the speed of the core in use and turn off the unused cores.

    Memory

    12 DIMM slots supporting up to 3TB of DDR5 4800MT/s ECC Memory. AMD EPYC 9004 Series processors have 12 memory channels. Occupy all memory channels for optimal performance. Occupy less memory channels if you plan to increase memory in the future.

    We stock new condition, reputable brand memory including SK Hynix, Micron, and Samsung.

    Storage | M.2

    Two onboard PCIe 4.0 M.2 slots supporting a NVMe SSDs. Four additional PCIe 4.0 M.2 NVMe SSDs can be added via optional PCIe slot adapters.

    PCIe 4.0 NVMe SSDs have read/write speeds averaging 6,000MB/s.

    We stock new condition, reputable brand, and latest model drives.
    512GB to 2TB drives are Samsung. 4TB and 8TB drives are Sabrent or Corsair.

    Storage | SATA SSD

    Four 2.5-inch SATA drive bays. SATA SSDs have read/write speeds averaging 500MB/s.

    We stock new condition, Samsung latest model drives.

    Storage | SATA HDD

    Two 3.5-inch SATA drive bays. SATA Hard Drives have read/write speeds averaging 250MB/s.

    We stock new condition, Western Digital and Seagate latest model drives.

    Graphics

    Three PCIe 5.0 x16 slots supporting up to three dual-width, full-height graphics cards.

    We stock NVIDIA Quadro professional-series and NVIDIA GeForce consumer-series graphics cards. If your application requires an AMD Radeon PRO graphics card, contact us for a custom quote.

    Network

    Two onboard 1Gb Ethernet RJ45 ports. Add optional 10Gb Ethernet network adapters.

    Wireless

    Optional WiFi network connection with an external antenna for extended range.

    Operating System

    Choose the operating system that best meets your application requirements. Windows 10 Professional for Workstations is installed by default. We also offer the most popular Linux distributions. If you would like dual-boot or multiple partitions, contact us for a custom quote.

    Operating System

    Load Operating System

    Keyboard

    Choose your ideal keyboard.

    Mouse

    Choose your ideal mouse.

    $75 shipping per unit · Free local pickup

    Lead time: 1 to 2 weeks
    See Policies & FAQ for details.

    $ 3,750
  • Form FactorMid tower
    Processor FamilyAMD EPYC
    Single CPU Socket SP5
    ProcessorsAMD EPYC 9004 Series
    Up to 96 Cores per processor
    Memory12 DIMM slots
    12 memory channels per processor
    Up to 3TB DDR5 4800MT/s Registered ECC Memory
    StorageUp to 7 total drives
    1x M.2 NVMe PCIe Gen 4 slot
    4x 2.5-inch internal SATA drive bays
    2x 3.5-inch internal SATA drive bays
    Network2 Onboard 1Gb Ethernet LAN ports (Broadcom BCM5720)
    Optional: Intel AX200 802.11AC WiFi & Bluetooth 5
    Expansion Slots3 PCIe Gen 5 x16 slots
    2 PCIe Gen 5 x8 slots
    2 PCIe Gen 4 x4 slots for a M.2 NVMe SSD
    Supports 3 full-height, double-width GPUs
    Ports and ConnectorsFront
    2x USB 3.0 Type-A
    1x USB 3.1 Gen 2 Type-C

    Rear
    4 USB 3.2 Gen 2 Type-A
    4 USB 3.2 Gen 1 Type-A
    1 USB 3.2 Gen 2x2 Type-C
    1 RJ45 10Gb Ethernet
    1 RJ45 1Gb Ethernet
    7.1 HD Audio jacks
    CoolingFront fans
    2x Dynamic GP-18 180 mm

    Bottom fans
    3x Dynamic GP-14 PWM 140 mm

    Rear fan
    1x Dynamic GP-14 PWM 140 mm
    Power Supply850 - 1600 watt 80+ internal power supply depending on configuration
    DimensionsHeight: 21.4" (544mm)
    Width: 9.5" (242mm)
    Depth: 20.9" (530mm)

  • Documentation

    Fractal Torrent Product SheetView | Download
    Fractal Torrent User GuideView | Download
    Supermicro H13SSL-N User ManualView | Download
