Supermicro A+ SuperWorkstation AS-531AW-TC

Configure Your Supermicro A+ SuperWorkstation AS-531AW-TC

  • Configure

    Processor

    The Supermicro A+ SuperWorkstation AS-531AW-TC supports one AMD Ryzen Threadripper PRO 9000/7000 WX-Series processor.

    Hyper-Threading support allows two threads to run simultaneously on each core - recognizing up to 96 cores / 192 threads. 'Turbo Boost' support automatically boosts the processor speed based on workload - so if an application is only using one of the cores it will automatically increase the speed of the core in use and turn off the unused cores.

    Memory

    The Supermicro A+ SuperWorkstation AS-531AW-TC has 4 DIMM slots supporting up to 2TB of DDR5 6400MT/s ECC Registered Memory using 512GB DIMM.

    We stock new condition, reputable brand memory including SK Hynix, Micron, and Samsung.

    Storage | M.2

    The Supermicro A+ SuperWorkstation AS-531AW-TC has 2 PCIe 4.0 x4 M.2 slots supporting NVMe SSDs.

    PCIe 4.0 NVMe SSDs have read/write speeds averaging 6,000MB/s.

    We stock new condition, reputable brand drives including Samsung and Western Digital.

    Storage | SATA

    The Supermicro A+ SuperWorkstation AS-531AW-TC has 2 internal 3.5-inch SATA drive bays and 4 internal 2.5-inch SATA drive bays. Arrange any combination of hard drives or solid-state drives.

    SATA SSDs have read/write speeds averaging 500MB/s.
    SATA Hard Drives have read/write speeds averaging 250MB/s.

    We stock new condition, reputable brand, and latest model drives.
    Hard drives are Western Digital or Seagate. Solid-state drives are Samsung.

    • Solid-State Drive

      Hard Drive

    • Solid-State Drive

      Hard Drive

    Graphics

    The Supermicro A+ SuperWorkstation AS-531AW-TC supports up to 1 quad-width, 2 triple-width, 2 double-width, or 2 single-width GPUs.

    We stock NVIDIA Quadro professional-series and NVIDIA GeForce consumer-series graphics cards. If your application requires an AMD Radeon PRO graphics card, contact us for a custom quote.

    AJA | Blackmagic Design

    Optional AJA connectivity cards and Blackmagic Design capture cards for professional video production applications. Contact us if the model you require is not listed.

    Network

    The Supermicro A+ SuperWorkstation AS-531AW-TC includes 2 RJ45 10Gb Ethernet LAN ports and 1 RJ45 1Gb Ethernet Dedicated BMC port. Add additional network adapters if you connect to multiple networks.

    1GbE Network

    10GbE Network

    Wireless

    Optional WiFi network connection with an external antenna for extended range.

    Operating System

    Choose the operating system that best meets your application requirements. Windows 10 Professional for Workstations is installed by default. We also offer the most popular Linux distributions. If you would like dual-boot or multiple partitions, contact us for a custom quote.

    Operating System

    Load Operating System

    Keyboard

    Choose your ideal keyboard.

    Mouse

    Choose your ideal mouse.

    3Dconnexion

    Optional 3Dconnexion mice for professional CAD applications.

    $75 shipping per unit · Free local pickup

    Lead time: 1 to 2 weeks
    See Policies & FAQ for details.

    $ 4,250
  • Manufacture Year(s)2024 - current
    Form FactorMid tower
    Processor FamilySingle Socket sTR5 (LGA-4844)
    AMD Ryzen Threadripper PRO 9000/7000 WX-Series processors
    Up to 96 cores, 192 threads, 384MB Cache, 350W TDP
    ProcessorsAMD Ryzen Threadripper PRO 9000WX Series
    AMD Ryzen Threadripper PRO 7000WX Series
    Up to 96 cores, 192 threads, 384MB Cache, 350W TDP
    Memory4 DIMM Slots
    4 Memory Channels
    Up to 2TB DDR5 6400MT/s Registered ECC Memory
    Storage2 internal fixed 3.5-inch SATA drive bays
    6 internal fixed 2.5-inch SATA drive bays
    2 M.2 PCIe 4.0 x4 NVMe slots
    Network2 10Gb Ethernet RJ45 ports (Broadcom BCM57416)
    1 1Gb Ethernet RJ45 Dedicated BMC port (ASPEED AST2600)
    Optional: Intel WiFi 7 WiFi
    Expansion Slots2 PCIe Gen 5 x16 slots
    2 PCIe Gen 4 x8 slots
    2 M.2 2280 slots for PCIe Gen 4 NVMe SSDs
    Supports 1 quad-width, 2 triple-width, 2 double-width, 2 single-width GPUs

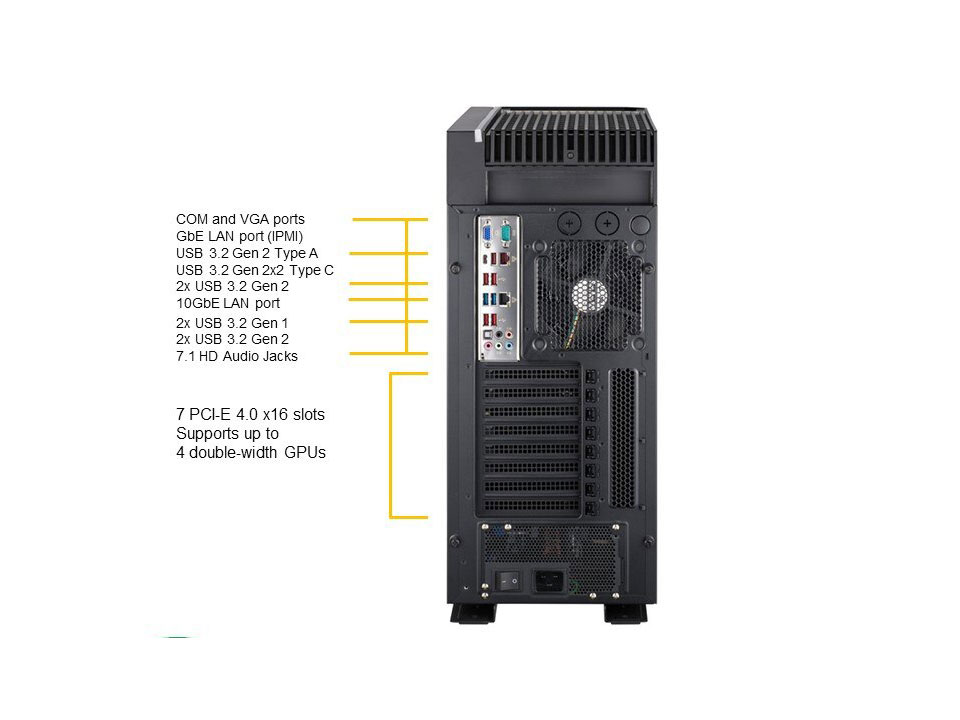

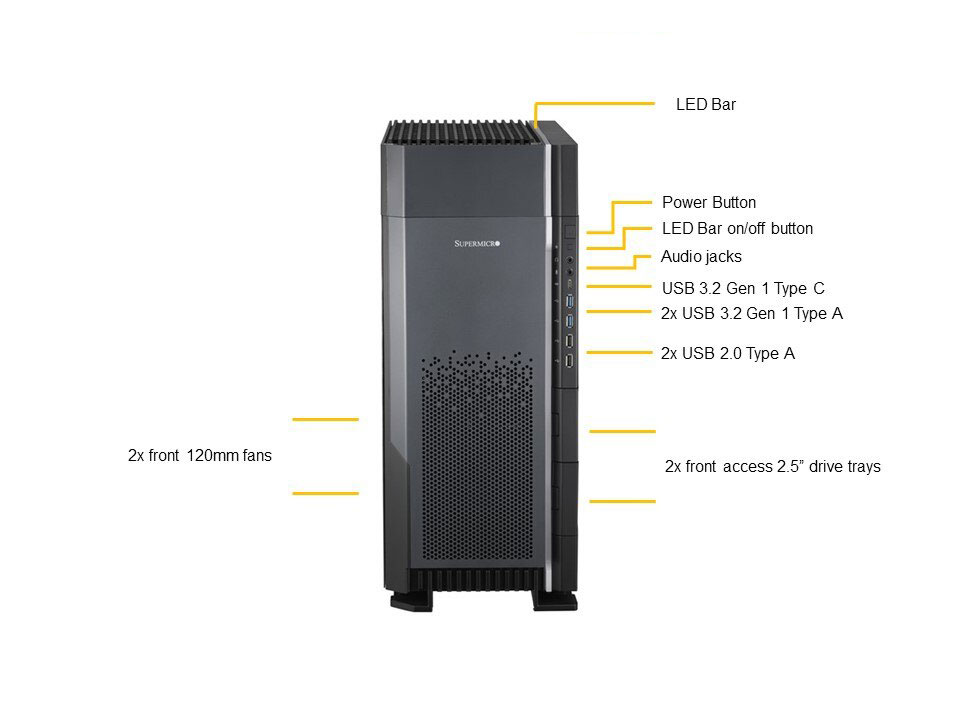

    Ports and Connectors2 USB 3.2 Gen1 Type-A ports (front)
    4 USB 3.2 Gen2 Type-A ports (rear)
    1 USB 3.2 Gen2 Type-C port (rear)
    1 USB 3.2 Gen2 Type-C port (front)
    1 VGA port
    1 COM port (rear)
    7.1 HD Audio
    1 TPM header
    Power Supply1000W Gold Level (90%) power supply
    1300W Platinum Level (92%) power supply
    2000W Platinum Level (92%) power supply
    Selected based on configuration
    DimensionsHeight: 17.72" (450 mm)
    Width: 8.07" (205 mm)
    Depth: 18.5" (470 mm)
    Manufacturer Product Page https://store.supermicro.com/us_en/superworkstation-mid-tower-as-531aw-tc.html

  • Documentation

    System User ManualView | Download
    Chassis User ManualView | Download
