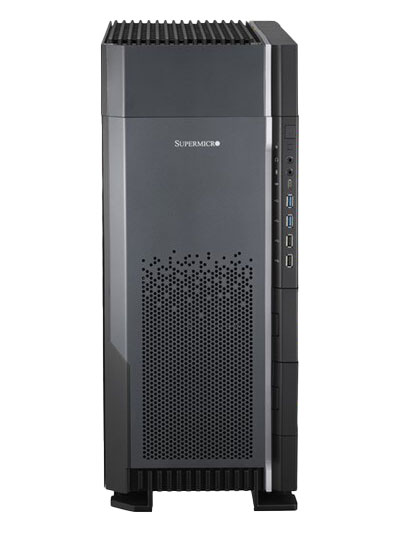

Supermicro SuperWorkstation SYS-551A-T

Configure Your Supermicro SuperWorkstation SYS-551A-T

  • Configure

    Processor

    The SuperWorkstation SYS-551A-T supports one Intel Xeon W-series 4th Generation (LGA4677) processor.

    Hyper-Threading support allows two threads to run simultaneously on each core - recognizing up to 112 total cores, 56 real and 56 virtual. Turbo Boost support automatically boosts the processor speed based on workload - so if an application is only using one of the cores it will automatically increase the speed of the core in use and turn off the unused cores.

    Memory

    The SuperWorkstation SYS-551A-T has 16 DIMM Slots supporting up to 2TB of DDR5 4800MT/s ECC Memory. Intel Xeon W-series 4th generation processors have 8 memory channels.

    We stock new condition, reputable brand memory including SK Hynix, Micron, and Samsung.

    Storage | M.2

    The SuperWorkstation SYS-551A-T has four onboard PCIe 5.0 x4 M.2 slots supporting NVMe SSDs.

    PCIe 5.0 NVMe SSDs have read/write speeds averaging 6,000MB/s.

    We stock new condition, reputable brand, and latest model drives.
    512GB to 2TB drives are Samsung. 4TB and 8TB drives are Sabrent or Corsair.

    Storage | SATA

    The SuperWorkstation SYS-551A-T has four 3.5-inch SATA3 drive bays. Arrange any combination of hard drives or solid-state drives.

    SATA SSDs have read/write speeds averaging 500MB/s.
    SATA Hard Drives have read/write speeds averaging 250MB/s.

    We stock new condition, reputable brand, and latest model drives.
    Hard drives are Western Digital or Seagate. Solid-state drives are Samsung.

    • Solid-State Drive

      Hard Drive

    • Solid-State Drive

      Hard Drive

    • Solid-State Drive

      Hard Drive

    • Solid-State Drive

      Hard Drive

    Graphics

    The SuperWorkstation SYS-551A-T has six PCIe 5.0 x16 slots supporting up to four dual-width, full-height graphics cards.

    We stock NVIDIA Quadro professional-series and NVIDIA GeForce consumer-series graphics cards. If your application requires an AMD Radeon PRO graphics card, contact us for a custom quote.

    AJA | Blackmagic Design

    Optional AJA connectivity cards and Blackmagic Design capture cards for professional video production applications. Contact us if the model you require is not listed.

    Network

    The SuperWorkstation SYS-551A-T has two onboard RJ45 Ethernet ports - one 10Gb and one 1Gb. Add additional network adapters if you connect to multiple networks.

    1GbE Network

    10GbE Network

    Wireless

    Optional WiFi network connection with an external antenna for extended range.

    Operating System

    Choose the operating system that best meets your application requirements. Windows 11 Professional for Workstations is installed by default. We also offer the most popular Linux distributions. If you would like dual-boot or multiple partitions, contact us for a custom quote.

    Operating System

    Load Operating System

    Keyboard

    Choose your ideal keyboard.

    Mouse

    Choose your ideal mouse.

    3Dconnexion

    Optional 3Dconnexion mice for professional CAD applications.

    Rack Mount Kit

    Optional rail kit if you plan to rackmount your workstation.

    $75 shipping per unit · Free local pickup

    Lead time: 1 to 2 weeks
    See Policies & FAQ for details.

    $ 3,750
  • Manufacture Year(s)2023
    Form FactorFull tower
    Processor Family4th Generation Intel Xeon W-series Processors
    Single Socket LGA-4677
    ProcessorsIntel Xeon W9-3400 Processors
    Intel Xeon W7-3400 Processors
    Intel Xeon W5-3400 Processors
    Up to 56 cores, up to 4.8GHz
    ChipsetIntel Alder Lake S PCH W790
    Memory16 DIMM Slots
    8 Memory Channels
    Up to 2TB DDR5 4800MT/s Registered ECC Memory

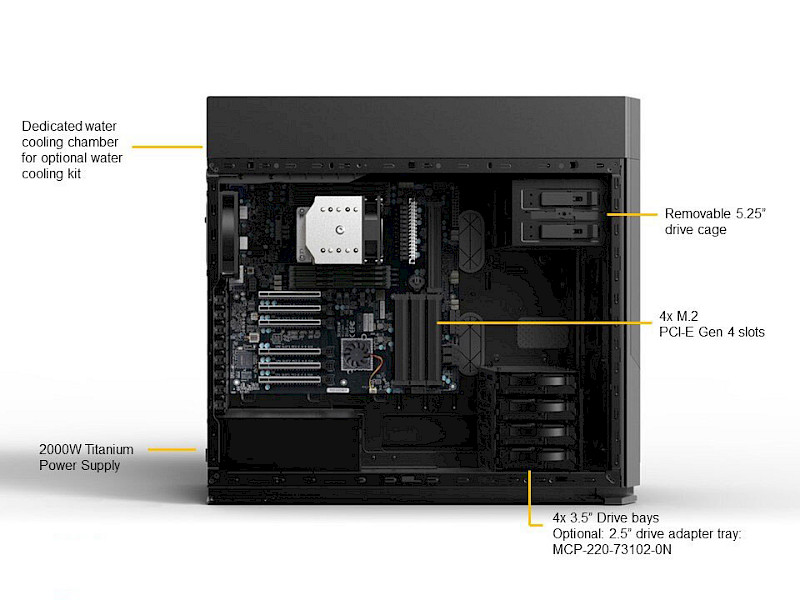

    StorageUp to 10 total drives
    4 M.2 NVMe PCIe Gen 5 x4 slots onboard
    4 3.5-inch internal SATA drive bays
    2 5.25-inch external SATA peripheral bays
    Network1 Onboard 10Gb Ethernet LAN port
    1 Onboard 1Gb Ethernet LAN port (shared with IPMI)
    Optional: Intel AX200 802.11AC WiFi & Bluetooth 5
    Expansion Slots6 PCIe Gen 5 x16 slots
    Supports 4 full-height, double-width GPUs

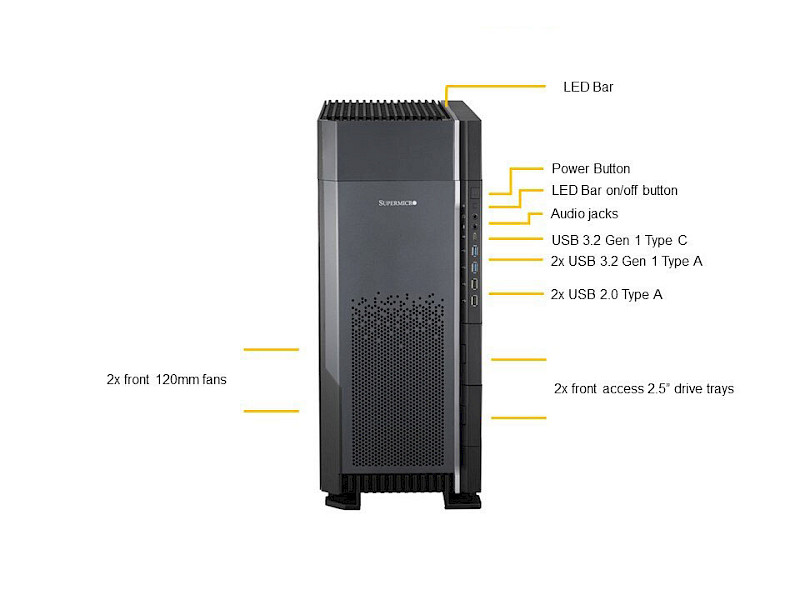

    Ports and ConnectorsFront
    2 USB 3.2 Gen 1 Type-A
    1 USB 3.2 Gen 1 Type-C
    2 USB 2.0 Type-A
    Audio jacks

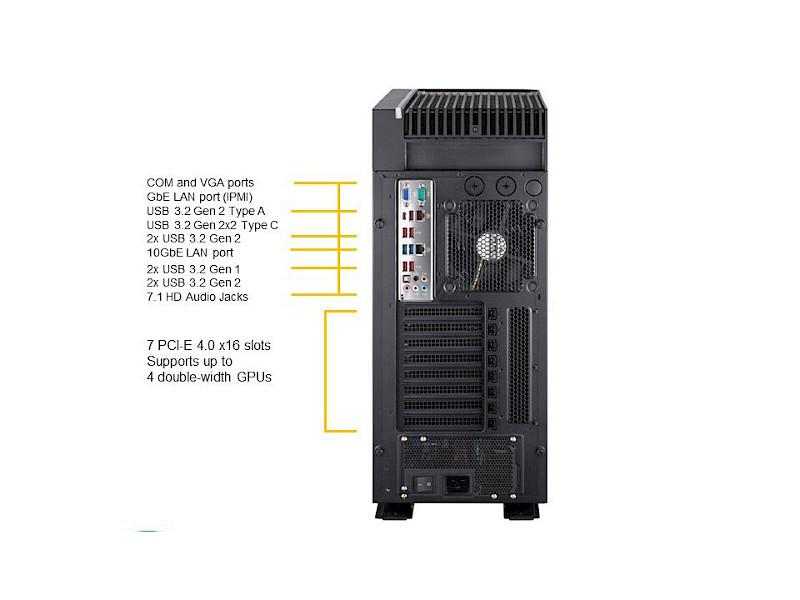

    Rear
    5 USB 3.2 Gen 2 Type-A
    2 USB 3.2 Gen 1 Type-A
    1 USB 3.2 Gen 2x2 Type-C
    1 RJ45 10Gb Ethernet
    1 RJ45 1Gb Ethernet (shared with IPMI)
    1 Serial COM port
    1 VGA (dedicated for IPMI)
    7.1 HD Audio jacks
    Power2000 watts 80+ Platinum power supply unit

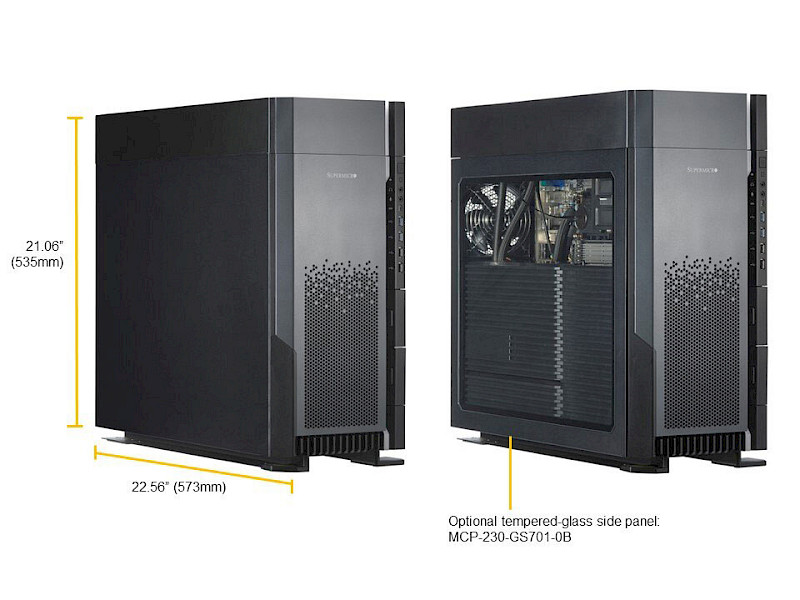

    DimensionsHeight: 21.06" (535mm)
    Width: 8.74" (222mm)
    Depth: 22.56" (573mm)
    Manufacturer Product Page https://www.supermicro.com/en/products/system/up%20workstation/full-tower/sys-551a-t
